Motor Grader Blades & End Bits

Motor Grader Blades & End Bits, Grader Blade and End Bit, Motor Grader Cutting Edges and End Bits, Tractor Grader Blades

Motor Grader Blades & End Bits Feature:

OEM Part Number or Custom Design

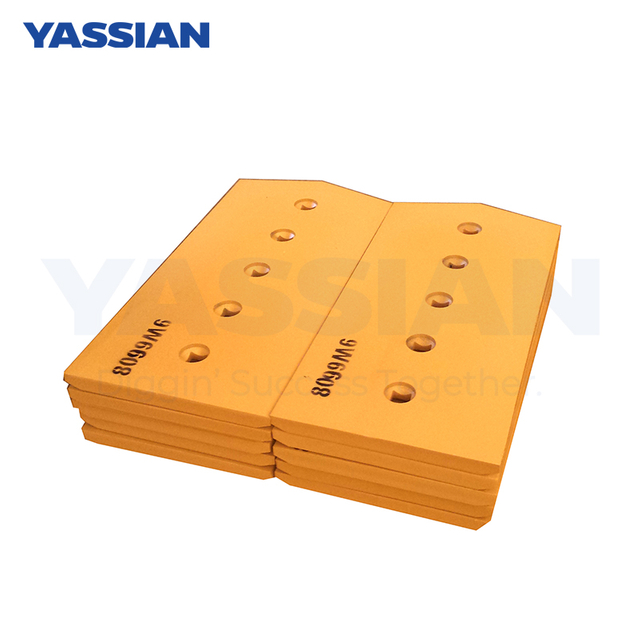

Grader blade: C80 high carbon steel and heat treated 30MnB boron steel for you to choose

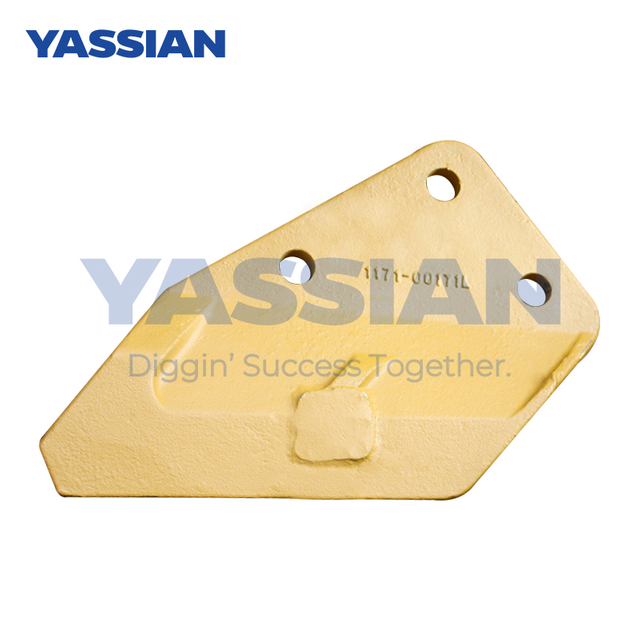

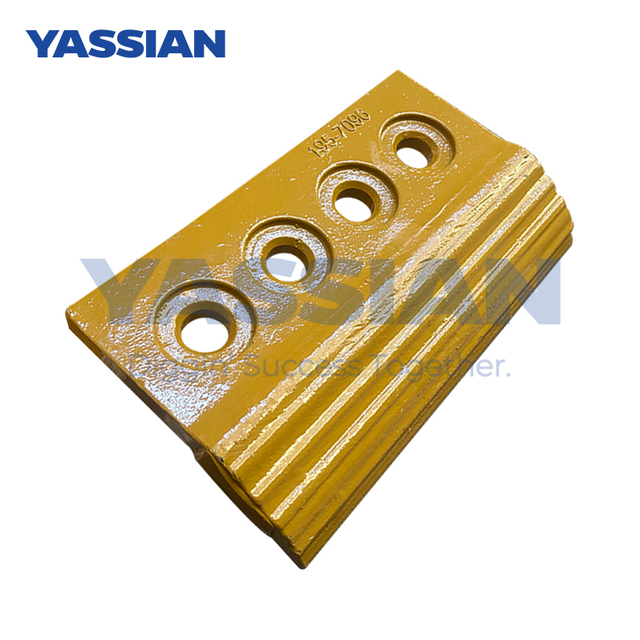

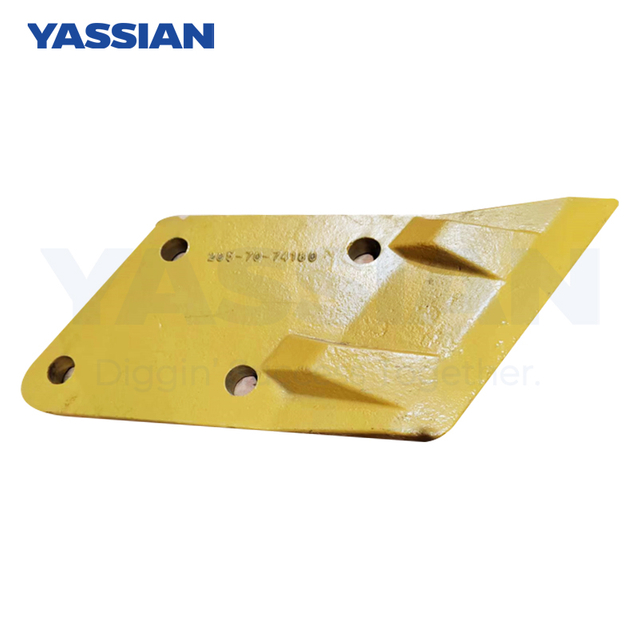

Grader end bit: heat treated 16Mn manganese steel and heat treated 30MnB boron steel for you to choose
Curved grader blade: thickness from 13-25mm, width from 152-203mm
Flat grader blade: thickness from 16-75mm, width from 203-406mm
Serrated grader blade both curved and flat

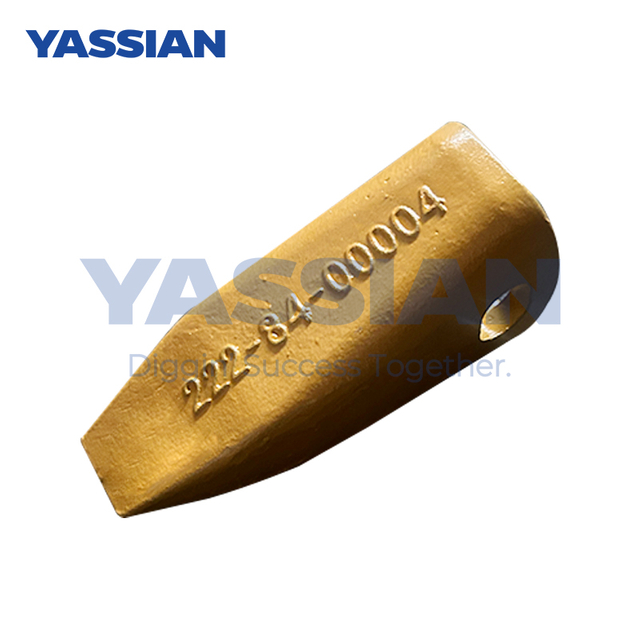

Provide Casting ripper shank and teeth

Our Grader Edges are designed with a HT Curve to penetrate better while carrying existing earth forward to leave you with a flat even surface. They come in a variety of different lengths and thicknesses to fit a range of different machines and have been produced with high carbon steel and high quality boron alloy steel to give you a longer wear life for your bucket edges.

If you need help choosing the correct size to fit your machinery, our high skilled and trained staff at YASSIAN are here to help!

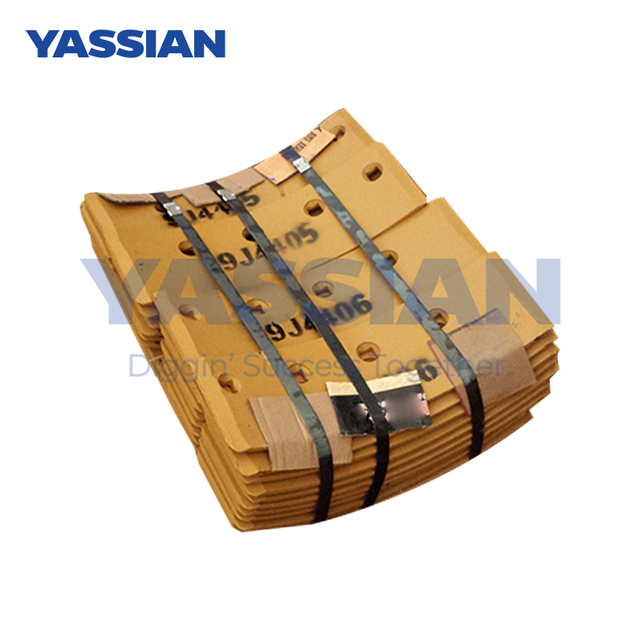

CURVED GRADER BLADES C80: HB300±20 30MnB: HB460±20
Width	Thickness	Length								Ø Bolt
Width	Thickness	4’=1219mm	5’=1524mm	5’=1524mm	6’=1828mm	6’=1828mm	7’=2133mm	7’=2133mm	8’=2438mm	Ø Bolt
6″(152 mm)	1/2″(13mm)	3G8016 9W2293		9J3862 9W2295	2C3139	8D2786 9W2297		8D2787 9W2299	8J7782 9W2301	5/8″
	1/2″(13mm)	9W2294		9W2296		9J3660 9W2298		9J3659 9W2300	9J3656 9W2302	3/4″
	5/8″(16mm)	9W2325	5B5567	7D4508 7T1640	5B5564	5D9553 7T1633	5B5561 5B5562	5D9554 7T1645	8J4043 7T1632	5/8″
	5/8″(16mm)	9W2326		9W2327		9J3657 7T1637		9J3658 7T1626	9J3655 7T1629	3/4″
	3/4″(19mm)			3G7966		5D9556		5D9557		5/8″
	3/4″(19mm)							4Z8785		3/4″
8″ (203 mm)	5/8″(16mm)	132-1088 9W2328		7D4509 7T1641		5D9562 7T1636		5D9561 7T1643	5D9731 7T1631	5/8″
	5/8″(16mm)	134-1773 9W2329		9W2330		9J7701 7T1639		7D1158 7T1624	8J9821 7T1628	3/4″
	3/4″(19mm)	132-1087 9W2338		9W6252 9W2340		5D9558 7T1634		5D9559 7T1623	5D9732 7T1630	5/8″
	3/4″(19mm)	109-3124 9W2339		4Z8131 9W2341		7D1576 7T1638		7D1577 7T1625	7D1949 7T1627	3/4″
	1″ (25mm)			4T2240		4T2244		4T2242	4T2237	5/8″
	1″ (25mm)	109-3150		4T3511		4T2231		4T2233	4T2236	3/4″
HOLE QUANTITY		9	7	11	8	13	9	15	17

FLAT GRADER BLADES 16Mn: HB350±20 30MnB: HB460±20
Width	Thickness	Length								Ø Bolt
Width	Thickness	4’=1219mm	5’=1524mm	5’=1524mm	6’=1828mm	6’=1828mm	7’=2133mm	7’=2133mm	8’=2438mm	Ø Bolt
8″ (203 mm)	5/8″ (16mm)			4T2967 5J6967		4T2968 5J6971		4T2969 5J6972	4T2966 5J6965	5/8″
	5/8″ (16mm)			4Z-8120		4T2971 6J2375		4T2970 6J2376	4T9603	3/4″
	3/4″ (19mm)	4Z-8119		4T3034 8J5352		4T3007 5J6970		4T3036 5J6973	4T3035 5J6966	5/8″
	3/4″ (19mm)					4T3033 6J2374		4T3032 6J2377	4T3037 6D4201	3/4″
	1″ (25mm)	135-9692		7T3497 4T2239		7T3499 4T2243		7T3498 4T2241	7T3496 4T2238	5/8″
	1″ (25mm)	4Z-8926				7T3493 4T2232		7T3494 4T2234	7T3495 4T2235	3/4″
10″ (254 mm)	1″ (25mm)					4T6502 8D7702		4T6508 8D0173	4T6511 8D0226	3/4″
	1-3/8″(35mm)							4T-8316	4T-8317	3/4″
	1-3/4″(45mm)								104-3628	3/4″
HOLE QUANTITY		9	7	11	8	13	9	15	17
