380901118 Motor Grader Rear Ripper Tooth

Full Description

Part number 380901118 is referenced in motor grader parts information as a rear ripper tooth, also described in some catalogs as a rake tooth. It is intended for use in the rear ripper or scarifier assembly of selected XCMG GR-series motor graders. This product is supplied as an aftermarket replacement part and is not represented as an original OEM component.

The rear ripper is mounted behind the grader and is used to loosen compacted ground before or during grading work. The tooth is the ground-contact component of that assembly. Its tapered lower section enters the material, while the upper section connects to the applicable ripper structure. The exact mounting arrangement must be checked against the machine configuration because graders within the same model family may use different assemblies according to production year, market and optional equipment.

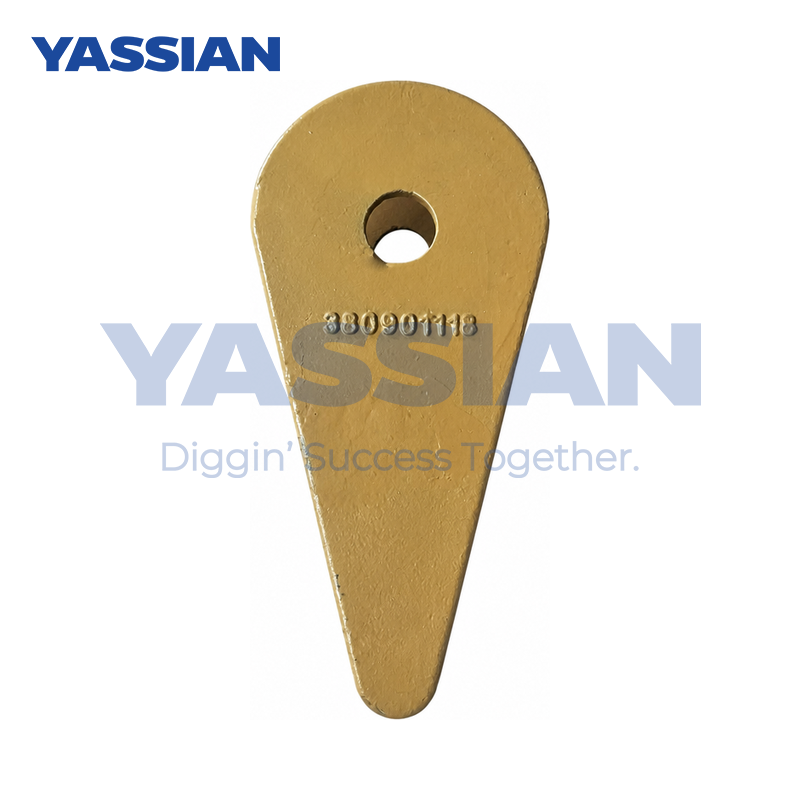

The photographed product has a broad rounded upper head and a body that narrows toward a rounded lower end. One circular through-hole is visible near the upper section. A raised 380901118 marking appears on the front surface. The exterior has a yellow painted or coated finish. No physical OEM logo is visible on the component.

Catalog and market references associate 380901118 with GR180/GR1803 and GR215-series motor graders. These model references are provided as compatibility leads rather than unconditional fitment claims. Buyers should confirm the complete machine model, serial number, manufacturing year and rear ripper assembly before ordering.

When catalog details are unavailable, compatibility can also be checked using photographs and measurements of the existing tooth. Useful measurements include overall length, maximum width, thickness, mounting-hole diameter and the distance from the hole center to the surrounding edges.

No verified interchangeable part number has been identified. Numbers associated with the rake rod, elastic pin or complete rear-ripper assembly are related component references and should not be treated as direct substitutes. Pins, retainers and other installation hardware are not assumed to be included unless specifically listed in the quotation.

The material grade, hardness, heat-treatment process, dimensions and weight must be confirmed against the required specification, approved drawing or physical sample. This replacement part is intended for distributors, importers, equipment repair companies, mining service providers and contractors sourcing motor grader ground-engaging components.

Key Features

• Raised 380901118 part marking

• Rear ripper or rake tooth configuration

• Broad rounded upper section and tapered lower body

• One visible upper mounting hole

• Yellow painted or coated exterior

• Aftermarket replacement for compatibility-based purchasing

• Suitable for sample and dimensional verification

• Intended for motor grader rear ripper applications

Compatible Machine Models

Compatibility references have been found for:

• XCMG GR180 / GR1803 series

• XCMG GR215 / GR215A / GR215D series

Compatibility may vary by serial number, production year and rear-ripper configuration. Confirm the machine and assembly details before ordering.

Reference Part Numbers

• Primary reference: 380901118

• Alternative written format: 380-901-118

• Confirmed equivalent part numbers: Not identified

Related rake-rod, pin and assembly numbers are not direct substitutes and are not assumed to be included.

Applications

• Motor grader rear ripper assemblies

• Motor grader scarifier or rake systems

• Replacement of worn or damaged ripper teeth

• Road construction and site-preparation equipment maintenance

• Mining and civil-engineering grader repair
