LS3001600J J-Bolt Centre Lip Shroud for Hensley System

Full Description

The LS3001600J is a centre lip shroud designed for use in a compatible J-bolt bucket-lip protection system. Installed across the centre section of the bucket’s front lip, the component provides a replaceable wear surface between the bucket structure and the handled material. It is intended for ground-engaging applications where the exposed lip requires additional protection during loading, digging and material-handling work.

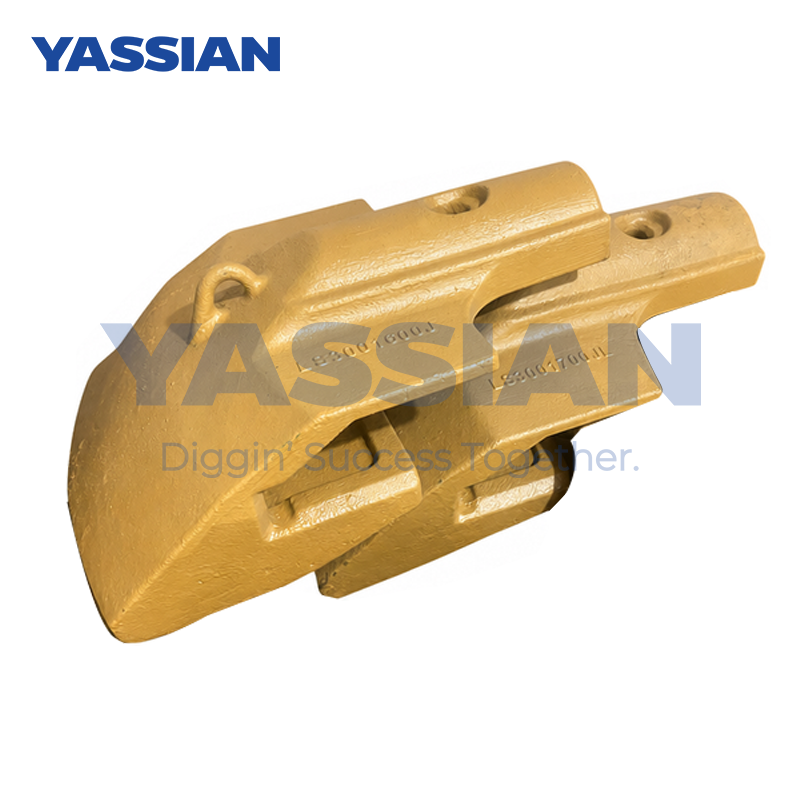

The part is also written as LS300-1600J. The product shown has a broad working face, raised longitudinal mounting section, recessed opening near the rear and a visible LS300-1600J identification marking. The photographed sample has a yellow-coated surface. Loose mounting hardware and weld bases are not shown.

Published system references associate LS3001600J with a nominal 3-inch lip configuration, an LSWB8 weld base and an SFA1J4 J-bolt assembly. In this arrangement, the mounting base is welded to the bucket lip and the replaceable shroud is mechanically retained on the base. The base and fastener are separate associated components and are not included unless specifically listed in the quotation.

Reference documentation places this part in the FEL, or front-end loader, application category. However, compatibility cannot be confirmed from the machine model alone. Buckets fitted to the same machine may differ in lip thickness, lip profile, adapter layout, mounting-base position and previous repairs. Specific machine models are therefore not published as confirmed applications without supporting parts-book or bucket information.

Before ordering, buyers should verify the existing shroud number, bucket-lip thickness, mounting-base number, fastener type and key dimensions. Photos of the old part, the exposed bucket lip and the machine or bucket identification plate can assist with identification. A visually similar centre or side shroud should not be treated as interchangeable without dimensional verification.

This aftermarket replacement is intended for distributors, importers, mining operations, repair workshops and contractors sourcing bucket wear components. Material grade, hardness, heat treatment, inspection documentation, packaging and accessory requirements should be confirmed during quotation.

Key Features

• Centre-position bucket lip shroud configuration

• Part-number references LS3001600J and LS300-1600J

• J-bolt mechanical retention arrangement

• Used with a compatible welded mounting base

• Published 3-inch lip-system reference

• Replaceable bucket-lip wear component

• Visible part-number marking for identification

• Suitable for part-number and dimensional compatibility checking

Compatible Machine Models

Specific machine models have not been confirmed for publication. Compatibility must be checked using the bucket configuration, lip thickness, existing part number, installed weld base and fastener arrangement.

Reference Part Numbers

• LS300-1600J — alternate formatting of LS3001600J

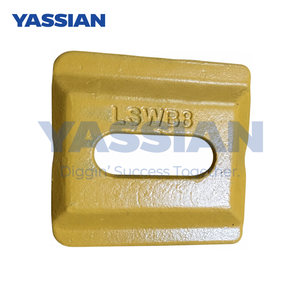

• LSWB8 — associated weld base, not an equivalent part number

• SFA1J4 — associated J-bolt assembly, not an equivalent part number

No other equivalent OEM part number has been independently confirmed.

Applications

• Front-end loader bucket-lip protection

• Mining and quarry bucket wear systems

• Replacement of worn centre lip shrouds

• Bucket rebuilding and maintenance

• Ground-engaging wear-parts supply
