A443XS145 Centre Weld-On Bucket Adapter for Komatsu PC2000

Full Description

A443XS145 is a centre weld-on bucket adapter assembly used in selected large mining excavator bucket configurations. It forms the connection between the bucket lip and the replaceable tooth point in a Hensley XS145 ground-engaging system. This product is offered as an aftermarket replacement and is not represented as an original Komatsu or Hensley component.

MyKomatsu identifies A443XS145 as a Hensley GET centre weld-on adapter assembly for a nominal 120 mm plate lip and a 200-ton machine application. The same source states that 443XS145 is the current replacement reference for A443XS145 and that the adapter uses a WC145HX wear cap.

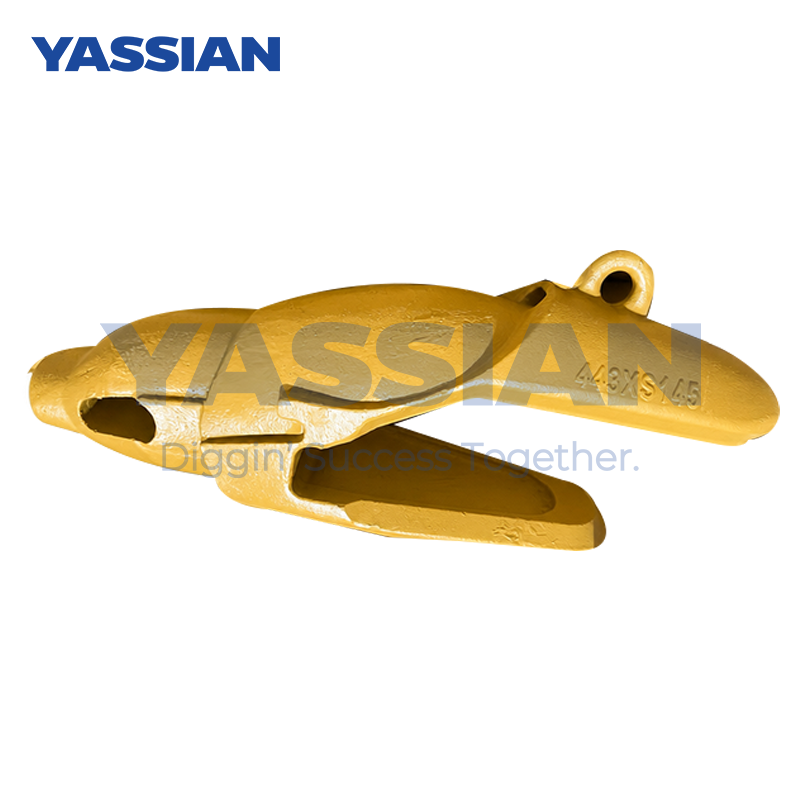

The photographed component has two extended mounting legs separated by a wide slot that fits over the applicable bucket lip. The forward section forms the adapter nose and includes a transverse opening associated with the tooth-retention system. A raised lifting eye is visible on the upper surface to assist with component handling. The cast marking A443XS145 is clearly visible on the side, and the exterior has a yellow painted or coated finish.

Mining-bucket catalog information associates A443XS145 with a Komatsu PC2000 12.0 m³ bucket configuration, where centre adapters are used together with corner adapters, replaceable tooth points, locking components and adapter wear caps. This does not mean that the adapter fits every PC2000 bucket. Bucket capacity, lip design, production series and installed GET system may differ.

The adapter is welded to the centre section of the bucket lip. Its front nose supports the replaceable tooth, while the upper and lower mounting legs transfer digging loads into the lip structure. Correct fit between the adapter and lip must be established before welding. Installation should follow the approved bucket drawing, adapter layout and welding procedure for the specific application.

MyKomatsu publishes a 120 mm nominal plate-lip reference, while some aftermarket sources describe the item as a 125 mm adapter. Buyers should therefore provide the actual lip thickness and profile rather than selecting the adapter by machine model alone.

The material grade, hardness, heat treatment, overall dimensions and net weight have not been independently verified. The WC145HX wear cap, XS145 tooth, locking components and welding materials are not assumed to be included.

This adapter is intended for mining equipment distributors, importers, bucket repair workshops, mines, contractors and fleet-maintenance teams sourcing replacement GET components for large excavator buckets.

Key Features

• A443XS145 cast marking

• Centre weld-on bucket adapter configuration

• Hensley XS145 tooth-system reference

• Two extended mounting legs with a bucket-lip slot

• Front adapter nose with a transverse retention opening

• Integrated lifting eye

• 443XS145 confirmed as the current replacement reference

• Aftermarket replacement for compatibility-based procurement

Compatible Machine Models

Catalog-supported application reference:

• Komatsu PC2000 — selected mining bucket configurations using the Hensley XS145 system

Compatibility must be checked against the machine serial number, bucket assembly, lip thickness, adapter layout and installed tooth system. Machine model alone does not confirm fitment.

Reference Part Numbers

• A443XS145 — Primary reference

• 443XS145 — Confirmed superseding reference

• 21T-70-34171 — Possible Komatsu bucket reference; configuration verification required

Associated components, not equivalent adapter numbers:

• WC145HX — Adapter wear cap

• XS145SC — Tooth-point reference

• XS145PX — Tooth-locking component

• A120XS145CC / 120XS145CC — Corner adapter

Associated parts are not assumed to be included.

Applications

• Large mining excavator buckets

• Centre positions on plate-lip bucket assemblies

• Komatsu PC2000 bucket repair and rebuild projects

• Hensley XS145 tooth-system maintenance

• Mining and heavy excavation equipment

• Replacement of worn or damaged weld-on adapters
