LSWB8 J-Bolt Weld Base for Bucket Lip Shrouds

Full Description

LSWB8 is a weld-on mounting base used within selected J-Bolt bucket lip shroud systems. Public distribution information identifies the part as a “Welded Base” or “Weld Base J Bolt” and associates it with the Hensley GET J-Bolt system. Products supplied under this listing are aftermarket replacement parts and are not represented as genuine Hensley or Komatsu components.

The base is installed on the bucket lip beneath a compatible mechanically retained lip shroud. During installation, the shroud is positioned against the bucket lip so that the correct base location can be established. The weld base engages with the receiving area of the shroud and is welded to the lip according to the applicable installation procedure. The lip shroud is then retained through the corresponding J-Bolt fastening arrangement.

LSWB8 is not a bucket tooth, adapter, lip shroud or fastening bolt. It is the fixed mounting base used beneath the replaceable wear shroud. SFA1J4 appears as the related J-Bolt assembly in reference system tables, but the fastener must be confirmed separately and should not be assumed to be supplied with the base.

Reference information associates LSWB8 with selected LS-series centre, left-hand and right-hand lip shrouds. These include some LS275, LS300, LS350 and LS400 configurations. However, parts within these families are not automatically interchangeable. The shroud number, lip thickness, shroud profile, mounting location and bucket geometry must all be checked before ordering.

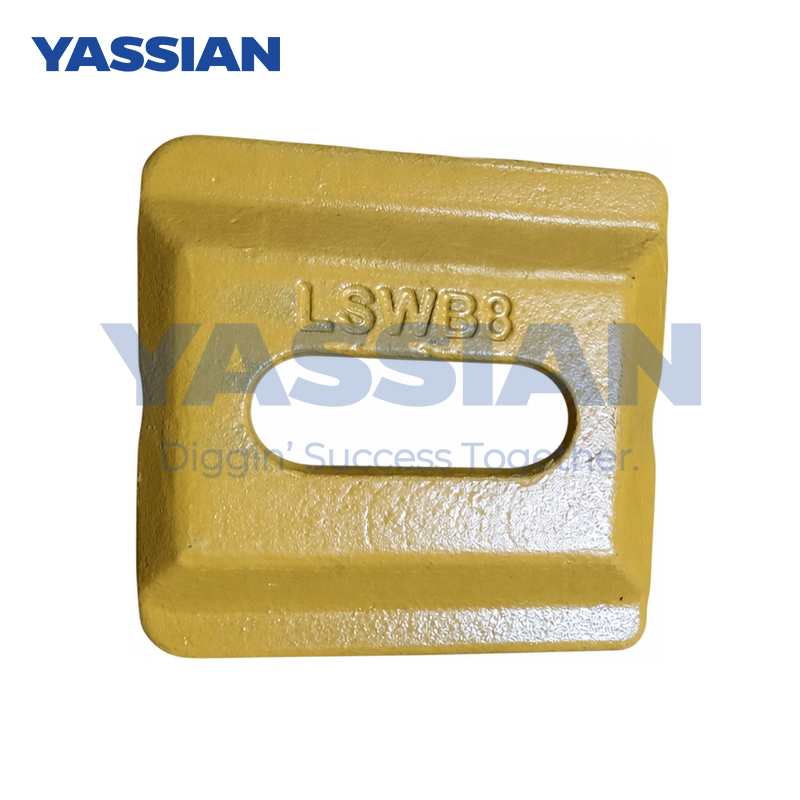

The product photograph shows a yellow-painted, rectangular component with rounded corners, a central horizontal slot and a raised LSWB8 marking. Its surface has a cast-textured appearance. The photograph does not show the bottom weld-preparation surface or provide a dimensional scale. Material grade, hardness, heat treatment, manufacturing process, actual dimensions and unit weight should therefore be confirmed from the supplier drawing or inspection record.

LSWB8 may be used in selected loader and excavator bucket configurations, but the base number alone does not identify one specific machine application. Buyers should provide the existing base number, compatible lip-shroud number, machine and bucket information, measured lip thickness, photographs of the mounting area and key dimensions.

This product is intended for distributors, importers, mining operators, equipment repair companies and contractors sourcing replacement components for existing J-Bolt bucket wear-protection systems. Installation should be completed by qualified personnel following the applicable welding instructions and site safety requirements.

Key Features

• Raised LSWB8 part-number identification

• Weld-on base for compatible J-Bolt lip shrouds

• Central slot for the related fastening arrangement

• Compact rectangular body with rounded corners

• Fixed mounting interface beneath the replaceable wear shroud

• Applicable to centre, left-hand or right-hand shrouds where specified

• Compatibility checked by shroud number and bucket-lip configuration

• Aftermarket replacement component

Compatible Machine Models

LSWB8 is used across selected loader and excavator bucket configurations. Exact compatibility must be confirmed from the bucket assembly, installed lip-shroud number, lip profile and mounting arrangement.

Reference records indicate possible use in selected Komatsu WA800 and PC1250 bucket configurations. This does not confirm compatibility with every machine, serial number or bucket version.

Reference Part Numbers

Possible catalog-prefixed references:

• HL-LSWB8

• HLLSWB8

Related system reference:

• SFA1J4 – related J-Bolt assembly

Catalog prefixes and related system numbers should be verified before being treated as interchangeable or included components.

Applications

• J-Bolt bucket lip shroud systems

• Wheel-loader bucket wear protection

• Excavator bucket wear protection

• Mining and quarry buckets

• Bucket rebuilding and maintenance

• Replacement of an existing weld base
