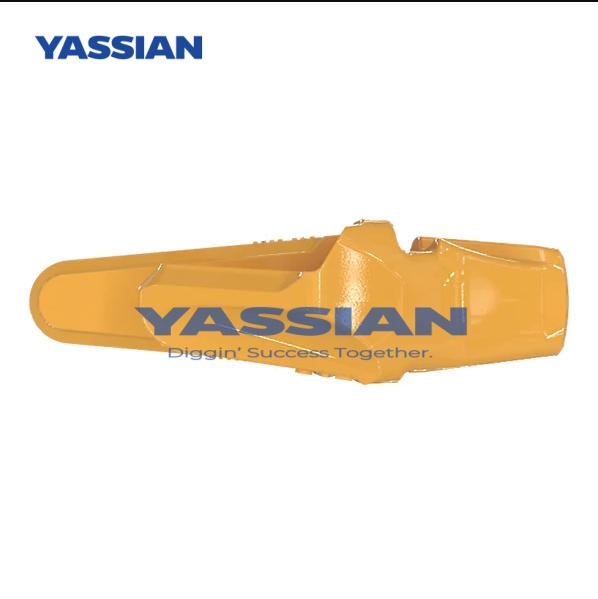

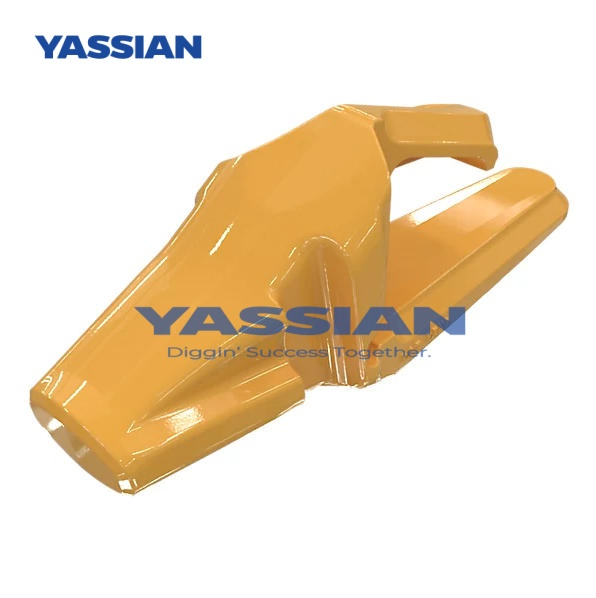

220-9095 K90 Weld-On Two-Strap LH Corner Bucket Adapter for CAT Excavators

The 220-9095 K90 Weld-On Two-Strap LH Corner Bucket Adapter is an aftermarket replacement for compatible Caterpillar excavator bucket applications. Designed for installation on the left-hand corner of the bucket cutting edge, the adapter provides a secure mounting interface for K90 bucket tips while adding protection to a high-wear area of the bucket.

Its two-strap weld-on construction distributes digging loads across the bucket base edge and provides a stable connection between the bucket and the tooth system. The corner configuration combines bucket-corner protection with the penetration benefits of a replaceable digging tip.

This adapter is designed around a 40 mm base edge with a 22.5-degree bevel. Official reference dimensions include an overall length of approximately 351 mm, a bottom strap length of approximately 223 mm and a width of approximately 99 mm.

Typical applications include excavation, construction, quarrying, trenching and general earthmoving. Before ordering, buyers should verify the part number, left-hand orientation, bucket edge thickness, bevel angle and installed tooth system. Machine model alone is not sufficient to guarantee fitment.

This is an aftermarket replacement component and is not represented as a genuine Caterpillar part.

Key Features

• Reference part number 220-9095

• K90 bucket tooth system configuration

• Left-hand corner adapter design

• Two-strap weld-on mounting

• Designed for a 40 mm bucket base edge

• Designed around a 22.5° base-edge bevel

• Supports compatible K90 bucket tips

• Helps protect the left bucket corner

• Stable load transfer during digging

• Suitable for replacement and bucket rebuilding projects

• Available with customized branding and coating options

Applications and Fitment

Designed for compatible K90-equipped buckets used on selected CAT excavator and wheeled-excavator models, including configurations associated with:

• CAT 315C and 315D L

• CAT 318C

• CAT 319C

• CAT 320C, 320D, 320D L and 320D LN

• CAT 322C

• CAT 323D Series

• CAT 324D Series

• CAT 325B L, 325C and 325D Series

• CAT 329D Series

• CAT 330D L

• CAT M322C and M322D Series

Fitment Notice: Compatibility depends on the bucket assembly, base-edge thickness, bevel, adapter position and tooth system. Please confirm the original part number or provide bucket measurements before ordering.

Typical Working Conditions

• General excavation

• Road and infrastructure construction

• Trenching

• Quarry material handling

• Hard soil and compacted ground

• Sand, gravel and aggregate loading

• Bucket repair and GET system replacement

Installation Notes

• Confirm that 220-9095 is required for the left-hand bucket corner.

• Verify the 40 mm base-edge thickness and 22.5° bevel.

• Remove paint, rust, oil and contamination from the welding area.

• Position and align the adapter according to the bucket and welding specification.

• Use a qualified welding procedure suitable for the adapter and base-edge materials.

• Observe the required preheating, welding sequence and cooling procedure.

• Check tip and retainer engagement after welding.

• Do not install the left-hand adapter on the right-hand corner.
