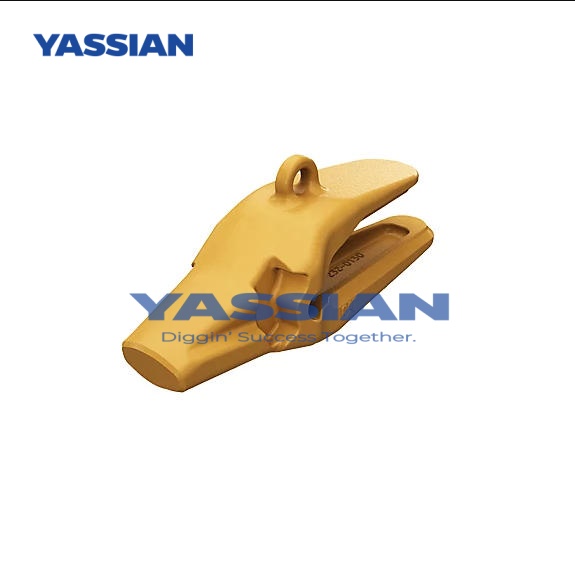

232-0116 K110 Weld-On Two-Strap LH Corner Bucket Adapter

The 232-0116 is a K110-series left-hand corner adapter designed for compatible hydraulic excavator buckets. Its two-strap weld-on construction provides the mounting interface for replaceable K110 bucket tips while supporting the wear-prone left corner of the cutting edge.

The reference configuration fits a 60 mm base edge with a 22.5-degree bevel and a 4-degree corner kickout. Principal dimensions are 446 mm in overall length, 120 mm in width and 294 mm along the bottom strap.

This aftermarket adapter is suitable for bucket rebuilding, ground engaging tool replacement and fleet maintenance programs in earthmoving, civil construction, quarrying and selected mining operations. Compatibility should be verified using the existing part number, K110 system, left-hand orientation, edge geometry and installation dimensions rather than machine model alone.

Key Features

• Reference part number 232-0116

• K110 / K Series interface

• Left-hand corner configuration

• Two-strap weld-on design

• 60 mm base-edge reference

• 22.5° base-edge bevel

• 4° corner kickout

• 446 mm overall length

• No mounting holes

• Supports replaceable K110 bucket tips

• Lower-profile two-strap geometry

• Suitable for excavator bucket rebuilding

• Material inspection and dimensional reports available by agreement

• Custom marking, color and export packaging options

Applications

The 232-0116 adapter is intended for the left-hand corner of compatible hydraulic excavator buckets equipped with a K110 ground engaging tool system.

Typical applications include:

• General excavation

• Heavy earthmoving

• Road and civil construction

• Trenching and site preparation

• Quarry excavation

• Aggregate handling

• Abrasive soil conditions

• Selected mining applications

• Excavator bucket rebuilding

• GET replacement and fleet maintenance

Compatibility Notice

The reference part is associated with selected CAT 322, 324, 325, 329, 330, 336, 345 and 350 excavator configurations.

Buckets installed on the same machine model may use different edge thicknesses, adapter systems and corner geometries. Confirm the existing part number, K110 interface, left-hand orientation, 60 mm edge, 22.5° bevel and 4° kickout before ordering.
