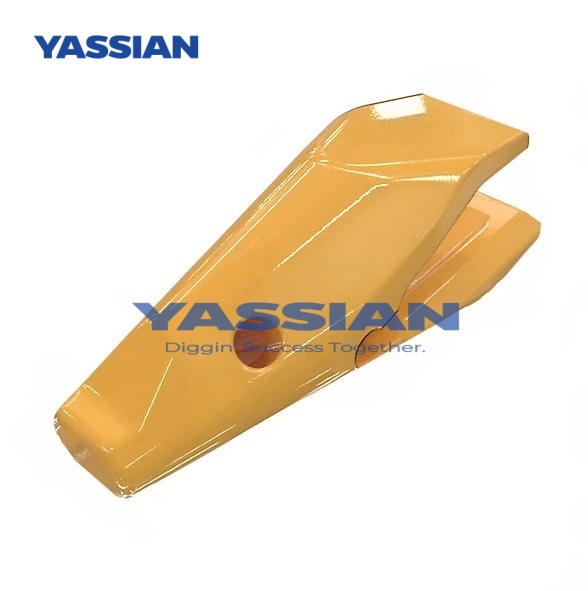

201-1234 DRS230 Two-Strap Weld-On Diagonal-Pin Adapter

The 201-1234 is a DRS230 center bucket adapter designed for compatible backhoe-loader and mini-excavator buckets. Its two-strap weld-on structure mounts to a 25 mm base edge and provides the interface for replaceable DRS230 bucket tips.

The diagonal retention system combines a secure side-oriented connection with convenient access to the pin and retainer. Reference dimensions are 180 mm in overall length, 54 mm in width and 111 mm along the bottom strap. The adapter has a 22.5-degree base-edge bevel reference and zero corner kickout.

This aftermarket adapter is intended for bucket rebuilding, GET replacement and maintenance of compatible DRS230 systems. Before ordering, confirm the existing adapter number, cutting-edge thickness, bevel geometry, tip profile, retainer and GET pin.

Key Features

• Reference part number 201-1234

• DRS230 / D230 tooth system

• Center bucket position

• Two-strap weld-on construction

• Diagonal-pin retention interface

• Designed for a 25 mm base edge

• 22.5° base-edge bevel

• 180 mm overall length

• Low-alloy cast-steel reference construction

• Supports multiple DRS230 tip profiles

• Suitable for compatible backhoe-loader and mini-excavator buckets

• Material and dimensional inspection available by agreement

• Custom marking, color and export packaging options

Applications

The 201-1234 adapter is intended for compatible buckets using the DRS230 diagonal retention system.

Typical applications include:

• Backhoe-loader digging buckets

• Mini-excavator buckets

• Trenching

• Utility excavation

• General earthmoving

• Rock-bucket applications

• Road and civil construction

• Landscaping and site preparation

• Bucket rebuilding

• GET maintenance and replacement

Compatibility Notice

The reference part is associated with selected CAT 307D, 308D and 307E2 mini excavators and numerous 415–444 backhoe-loader configurations.

Machine model alone does not guarantee compatibility. Verify the existing adapter number, DRS230 system, 25 mm edge, 22.5° bevel and retention components before ordering.
