2713-1222 Weld-On Bucket Tooth Adapter for Daewoo/Doosan S130 And Solar 130

Full Description

The 2713-1222 is an aftermarket weld-on bucket tooth adapter used as the connecting component between an excavator bucket lip and a replaceable bucket tooth. Doosan and Daewoo parts catalogs describe this component as an “adapter, tooth.” It may also be called a tooth holder, tooth seat or weld-on adapter in the ground engaging tools market.

The adapter has a two-strap mounting body. Its rear opening fits around the applicable bucket lip or base edge, after which the adapter is positioned and welded in accordance with the approved bucket repair and welding procedure. The projecting nose supports the replaceable tooth. A separate retention system secures the tooth to the adapter nose.

Parts-catalog records place 2713-1222 and its A revision in several Solar 130W-V(1) and Solar 130W-V(2) bucket assemblies. Independent ground engaging tool catalogs also associate it with the S130 and DH130 product families. The later reference K9005348 is commonly connected with selected S130-5 and DX140 applications. These references do not establish universal compatibility across every machine or bucket configuration.

Several important specification conflicts exist in public listings. The adapter opening is variously described as 30, 32 or 35 mm. Some catalogs call it a straight-lip adapter, while others describe a bevel configuration. Product weights also vary substantially. These differences may reflect revisions, bucket-lip arrangements, different manufacturers or incorrectly grouped listings. No single opening dimension or unit weight should therefore be selected without checking the actual product specification.

Before ordering, buyers should measure the bucket lip thickness and the internal opening of the existing adapter. The nose length, nose width, pin-hole diameter, pin-hole position and tooth cavity should also be compared. The existing tooth number and any suffix on the adapter marking are particularly useful. Clear photographs from the side, top, rear and nose should be supplied when possible.

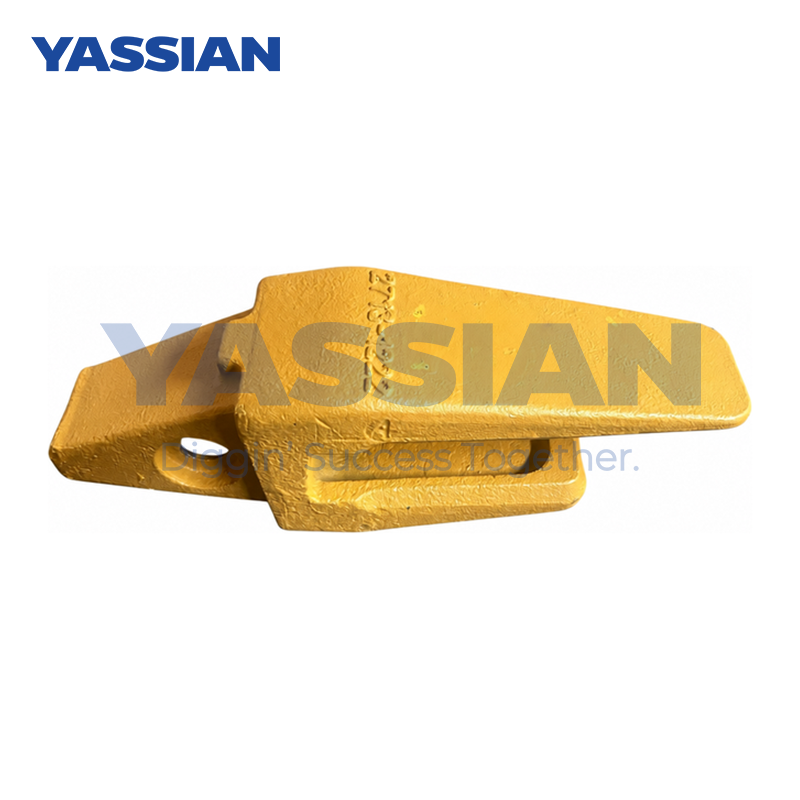

The supplied product photograph shows a yellow, two-strap adapter with a raised 2713-1222 marking and a visible transverse opening near the nose. However, the photograph does not include a dimensional scale and does not show the adapter installed on a bucket. It therefore cannot confirm the opening size, pin number, retainer number, material, hardness or exact machine model.

This replacement is intended for distributors, importers, bucket repair workshops, contractors, quarry operators and mining maintenance companies purchasing ground engaging parts. The exact material grade, manufacturing route, heat treatment, hardness, weight and supply scope should be confirmed in the current quotation or approved technical drawing.

The bucket tooth, pin, retainer and welding materials must not be assumed to be included unless expressly listed in the order confirmation. Compatibility should be approved before welding.

Key Features

• Aftermarket replacement referenced to 2713-1222

• Weld-on tooth adapter for selected Daewoo/Doosan bucket systems

• Two-strap mounting body for fitting around the bucket lip

• Projecting nose for a separate replaceable bucket tooth

• Raised 2713-1222 identification visible on the product

• Cataloged in selected S130 and Solar 130 bucket assemblies

• Revision and opening differences require dimensional confirmation

Compatible Machine Models

Cataloged or commonly referenced for selected configurations of:

• Daewoo/Doosan Solar 130W-V(1)

• Daewoo/Doosan Solar 130W-V(2)

• Daewoo/Doosan S130

• Selected DH130 bucket configurations

Possible later applications associated with K9005348, including selected S130-5 or DX140 buckets, require separate confirmation.

Compatibility depends on the machine serial number, bucket assembly, bucket-lip thickness, adapter opening, nose profile and tooth retention system.

Reference Part Numbers

• 2713-1222

• 27131222

• 2713-1222A — catalog revision; verify before ordering

• 2713-1222B — later catalog revision; verify before ordering

• K9005348 — commonly cross-referenced; verify before ordering

Related tooth reference: 2713-1221 / 2713-1221A. This is a related component, not an equivalent part number, and it is not assumed to be included.

Applications

• Excavator digging buckets

• Construction and earthmoving operations

• General bucket repair

• Quarry equipment maintenance

• Replacement of worn or damaged weld-on tooth adapters

• Restoration of compatible bucket tooth mounting positions
