6840L-70SV2 Left Straddle Leg Adapter for ESCO 70SV2 Excavator Buckets

Full Description

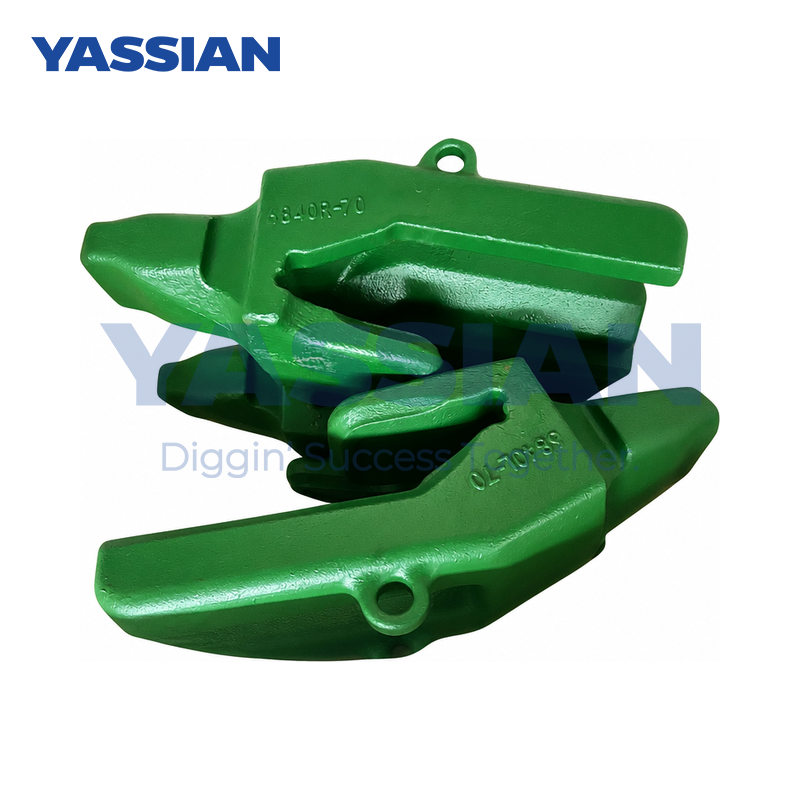

The 6840L-70SV2 is a left-hand straddle-leg weld-on bucket adapter referenced to the ESCO SV2 70-size tooth system. Catalog documentation identifies it as a Type 4CN, 1-1/2 top-leg straddle or corner adapter. It is intended for installation at the left outer tooth position of a compatible bucket lip, where the upper and lower legs straddle the lip structure before the adapter is welded into position.

This component provides the mounting nose for a compatible 70SV2 tooth point. The adapter itself is not a complete tooth assembly. Tooth points, pin assemblies, locks, installation tools and other hardware must be confirmed separately and should not be assumed to be included in the quoted supply.

Published catalog geometry for 6840L-70SV2 includes a nominal 89 mm (3.50 in) lip thickness, 419 mm (16.50 in) top-leg length, 197 mm (7.75 in) bottom-leg length, 214 mm (8.44 in) adapter width, 30-degree ramp angle and 10-degree nose angle. Catalog weight is approximately 96 kg (212 lb). These values are useful for preliminary identification, but the actual supplied part and bucket lip should be measured before welding or bulk ordering.

The part is cataloged for heavy bucket applications under descriptions including HEX, Backhoe and HFS. These are equipment categories rather than confirmed machine-model applications. Fitment should be determined from the existing adapter number, bucket identification, lip thickness, lip profile, left-hand mounting position and the installed tooth system.

This aftermarket replacement is intended for distributors, importers, mine maintenance teams, bucket repair companies and contractors sourcing ground-engaging components by reference number. Buyers should provide the required part number, equipment details, bucket or attachment number where available, photographs of the existing adapter and tooth, and critical installation measurements.

The supplied product is not represented as an original ESCO component. ESCO and SV2 references are used solely to identify the applicable tooth-system family and dimensional configuration.

Key Features

• Reference number 6840L-70SV2

• Left-hand straddle-leg/corner configuration

• Type 4CN weld-on adapter design

• Reference interface for the 70SV2 tooth-system size

• Catalog nominal fit for an 89 mm (3.50 in) bucket lip

• Published 30° ramp angle and 10° nose angle

• Separate right-hand counterpart cataloged as 6840R-70SV2

• Suitable for bucket fabrication, rebuilding and wear-part replacement where compatibility has been confirmed

Compatible Machine Models

No specific OEM machine models have been conclusively verified for this part.

The adapter is cataloged for HEX, backhoe and HFS bucket applications using a compatible 70SV2 configuration. Fitment must be confirmed from the bucket lip profile, nominal lip thickness, left-hand mounting position, existing adapter number and tooth-system references.

Reference Part Numbers

• 6840L70SV2 — alternative formatting

• 6840R-70SV2 — right-hand counterpart; not interchangeable

• Related 70SV2 point references include 70SV2ADHL, 70SV2ADHLX, 70SV2AG, 70SV2RX, 70SV2RXL, 70SV2SD, 70SV2SDP and 70SV2VX

• 70SV2PN-C — related pin-assembly reference; not included unless stated in the quotation

No fully equivalent replacement adapter number is published without further dimensional verification.

Applications

• Left corner tooth station on a compatible heavy-equipment bucket

• Bucket lip rebuild and replacement projects

• New bucket fabrication using a verified 70SV2 configuration

• Excavation, quarrying, mining and earthmoving bucket maintenance

• Replacement-parts supply for distributors, importers and repair operations
