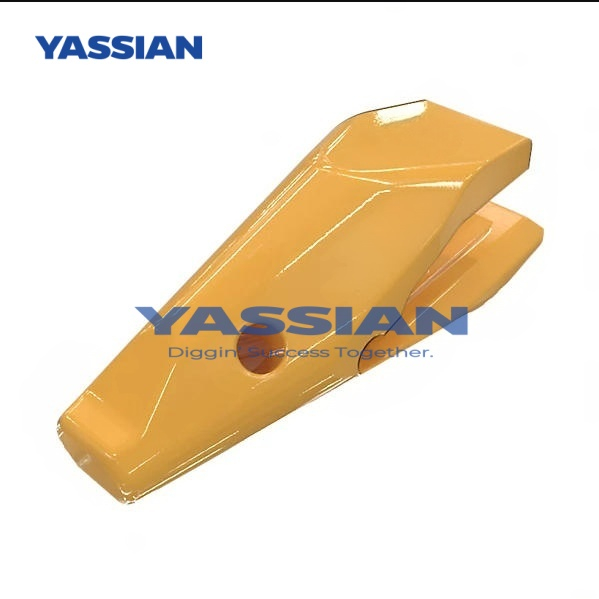

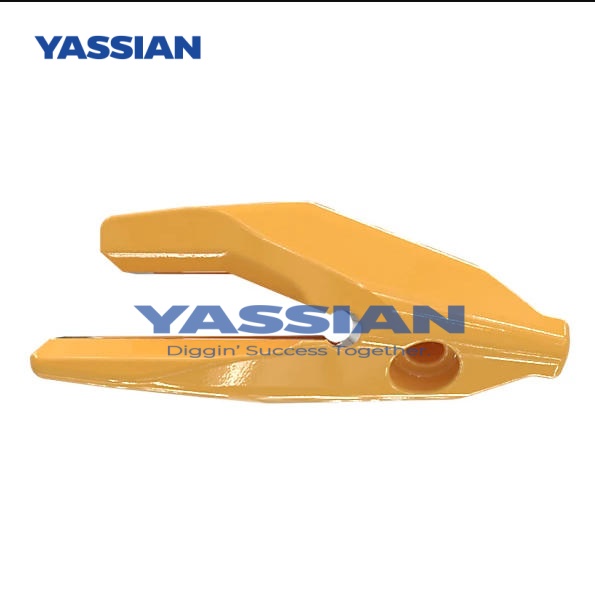

201-1235 DRS230 Two-Strap Weld-On Adapter for 20 Mm Edges

The 201-1235 is a DRS230 center bucket adapter designed for compatible buckets with a 20 mm base edge. Its two-strap weld-on construction provides the mounting interface for replaceable DRS230 tips using a diagonal retention system.

The reference geometry includes a 22.5-degree base-edge bevel, an overall length of 180 mm, a width of 54 mm and a 111 mm bottom strap. Although its external dimensions are similar to those of the 201-1234 adapter, the strap opening is configured for a different cutting-edge thickness.

This aftermarket adapter is intended for bucket rebuilding and GET maintenance on compatible backhoe loaders, skid-steer loaders, compact track loaders and multi-terrain loaders. Confirm the existing adapter number, 20 mm edge, DRS230 tip and retention components before ordering.

Key Features

• Reference part number 201-1235

• DRS230 / D230 system

• Center bucket position

• Two-strap weld-on design

• Diagonal retention interface

• Designed for a 20 mm base edge

• 22.5° base-edge bevel

• 180 mm overall length

• Cast-steel reference construction

• Supports multiple DRS230 tip profiles

• Suitable for selected backhoe and compact-loader buckets

• Dimensional and material inspection available by agreement

• Custom marking, color and export packaging options

Applications

Typical applications include:

• Backhoe-loader buckets

• Skid-steer-loader buckets

• Compact-track-loader buckets

• Multi-terrain-loader buckets

• General excavation

• Utility trenching

• Landscaping

• Road maintenance

• Site preparation

• Bucket rebuilding

• GET replacement and fleet maintenance

Compatibility Notice

The external dimensions of 201-1235 and 201-1234 are similar, but their base-edge fits are different:

• 201-1235: 20 mm edge

• 201-1234: 25 mm edge

Do not select the adapter by external length alone. Measure the bucket edge and check the existing cast part number before ordering.
