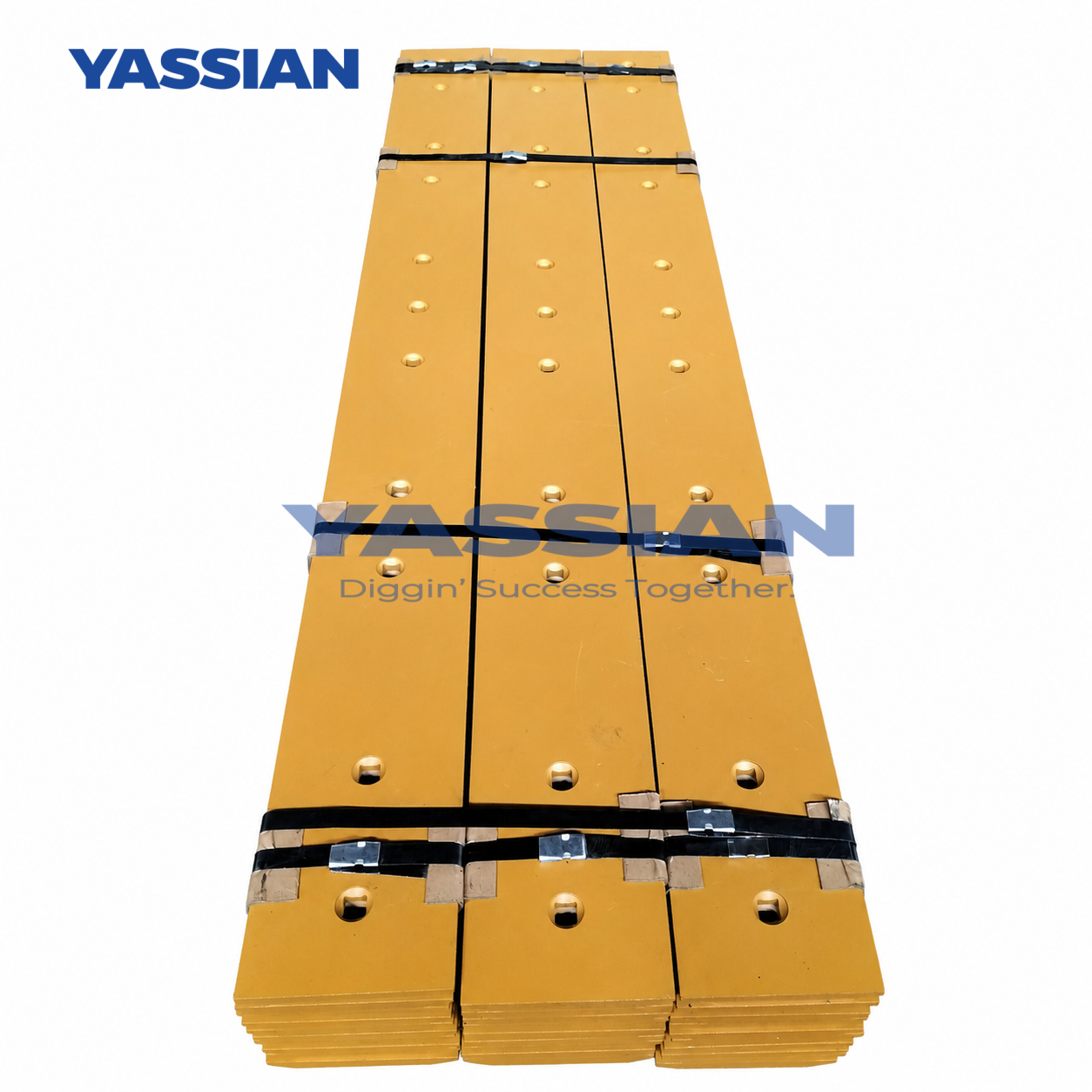

Multi Terrain Loader Cutting Edge 1359396

135-9396 Multi Terrain Loader Cutting Edge, Skid Steer Loader Replacement Bolt-On Cutting Edge, Mini-Excavator Center Edge, Caterpillar Wheel Loader Replacement Cutting Edge, 1359396 Center Cutting Edge China Factory

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

Multi Terrain Loader Cutting Edge 1359396 Feature:
CAT Part No.: 135-9396
Type: DBF
Size: 0.625” thick * 6.5” wide * 74.625” length
Material: High carbon steel or Boron steel
Compatible Machine Models: CAT

SKID STEER LOADERS
226D,262DLRC,226B2,216B3,272C,246D,248B,236B3,232D,272D2,242DLRC,226B,226B3,236D,262C2,216B2,242D,236DLRC,246DLRC,242,268B,272D,216B3LRC,272DXHP,252B3,252B2,242B3,262,262D,232,262C,232B2,256C,252,246C,246B,236B2,232DLRC,272D2XHP,226B3LRC,262B

WHEEL LOADERS
904H,904B

MULTI TERRAIN LOADERS
299D2,287C2,257B2,297D,247B2,279DLRC,277D,267,259DLRC,257B3,289DLRC,277DLRC,247B3,289C,287B,277B,277C,297D2,279C,277C2,257,297D2XHP,247B3LRC,299D,257DLRC,259B3,239D,297C,287,249D,289D,247,279C2,277,299C,299D2XHP,299DXHP,279D,287DLRC,297DXHP,239DLRC,257D,259D,287D,289C2,287C,267B,249DLRC

Made in China

Caterpillar style bolt on center cutting edge for a 72” Caterpillar Skid Steer Bucket. This is a double beveled reversible bucket cutting edge that is .625” thick, 6.5” wide and 74.625” in length. It takes 11 of a 5/8” X 2” (625X200) plow bolt and 11 of a 5/8” (625 HEX NUT) hex nut. The bolt hole spacing is 9.84” from center to center of the bolt holes, and 2.86” when measured from the edge of the bucket cutting edge to the center of the first hole.

Weight: 77.16 lb / 35 kg

Cutting Edge
Description:
Cutting Edge (74.5″)
Attributes:
Bolt-On Cutting Edge
Recommended Application:
904B Grapple Buckets, certain Skid Steer Loader Work Tools

All brand names, model names or marks are owned by their respective manufacturers. Echo Machinery has no affiliation with the original equipment manufacturer. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval by the OEM. All parts are manufactured by, for and warranted by Echo Machinery and are not manufactured by, purchased from or warranted by the original equipment manufacturer.

Material: consists of high carbon steel and high quality boron steel.
Thickness :Thickness from 12mm to 60mm, width is no limited,suitable for all kind of machine models domestic and foreign.
Process :Process of hot-pressing and compression bending is applied in all end bits and they’re made from boron steel.
Performance :Product performance has reached international standard, after quenching and tempering.
Variety:Single bevel, Double bevel, Drilled double bevel, None bevel. We could provide your need by your drawing, like dimension and bolt hole distribution. 135-9395 Skid Steer Loader Edge


Product Range

Imperial2Metrics2

Machine: Mini-Excavator, Skid Steer Loader Machine: Mini-Excavator, Skid Steer Loader
Length (in): 74.53 Length (MM): 1893
Width (in): 0.63 Width (mm): 16
Height(in): 6.5 Height(mm): 165
