135-9397 Bolt-On Bucket Cutting Edge for Cat Equipment

Full Description

This listing covers an aftermarket replacement bucket cutting edge cross-referenced to Caterpillar part 135-9397. Caterpillar identifies the reference item as a 16 mm bolt-on center cutting edge with a straight, continuous profile. It mounts along the lower front lip of a compatible bucket, where the replaceable edge takes direct contact during stockpiling, re-handling, excavating and bank-loading work. Its function is to protect the bucket structure and provide a serviceable working edge.

For compatibility identification, the official reference specifications are 80.51 in in length, 6.496 in in width and 0.63 in in thickness, approximately 2045 × 165 × 16 mm. The catalog lists 11 mounting holes and an M16 machine-screw interface. These values are reference data for part-number checking, not a substitute for inspecting the supplied item or the customer’s bucket. Before purchase, compare the overall dimensions, hole quantity, hole type, spacing, edge profile and end geometry.

The reference catalog associates 135-9397 with multiple skid steer loader, compact track loader, multi terrain loader, compact wheel loader, wheel loader and selected mini excavator applications. Commonly listed families include 216–272 skid steer loaders, 239–299 compact track loaders, 247–297 multi terrain loaders, 904–908 compact wheel loaders and the 304.5E2 mini hydraulic excavator. A model name alone does not prove fitment because attachment width, bucket arrangement, serial number and previous modifications can change the required cutting edge.

Published references use both 78-inch and 80-inch bucket labels for this number, while the verified reference edge length is approximately 80.51 inches. This listing therefore does not use nominal bucket width as a universal compatibility rule. The physical edge dimensions and mounting-hole pattern should be confirmed for each application.

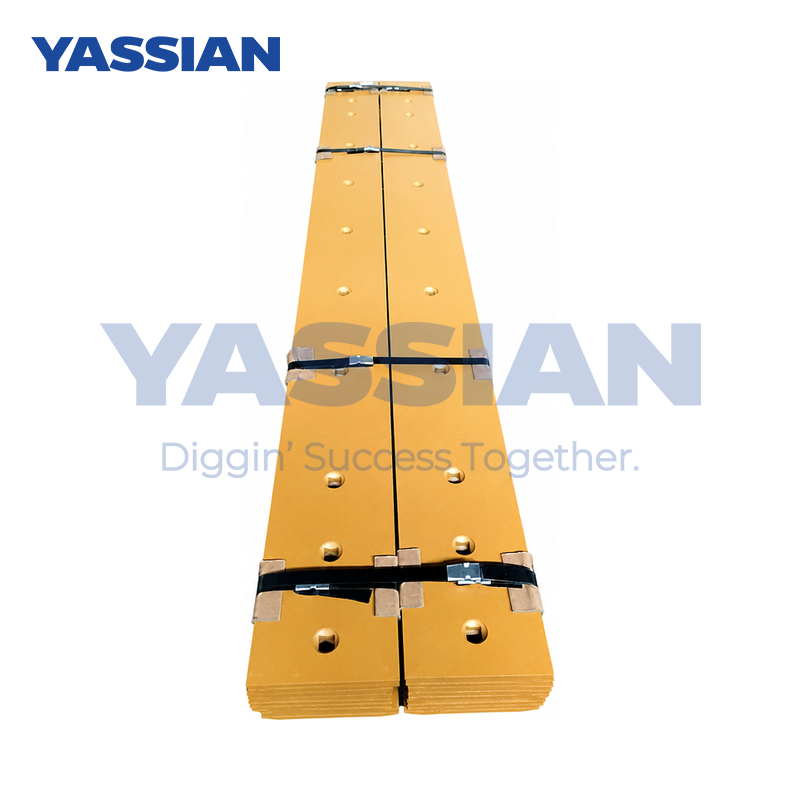

The product image shows stacked yellow-finished, straight bolt-on cutting edges with repeated recessed mounting holes. No readable part number or OEM mark appears on the visible product surfaces, so compatibility should be confirmed from measurements and order information.

To reduce ordering errors, provide the machine model, serial number, bucket arrangement or attachment number, old edge number, measured length, width and thickness, complete hole pattern and clear photographs. For repeat or volume purchases, approval against a dimensional drawing or physical sample is recommended. This product is intended for distributors, importers, mines, repair companies and contractors sourcing aftermarket replacement wear parts.

Key Features

• Cross-referenced to part number 135-9397 / 1359397

• Straight, continuous center cutting-edge configuration

• Bolt-on mounting design

• Official reference configuration with 11 mounting holes

• M16 machine-screw interface reference

• Reference dimensions of approximately 2045 × 165 × 16 mm

• Intended for replaceable protection of the bucket’s lower front edge

• Compatibility checking using part numbers, measurements and photographs

Compatible Machine Models

Reference catalogs list selected configurations of:

• Cat 216–272 skid steer loader families

• Cat 239–299 compact track loader families

• Cat 247–297 multi terrain loader families

• Cat 904–908 compact and wheel loader families

• Cat 304.5E2 mini hydraulic excavator

Compatibility is attachment-specific. Confirm the complete machine model, serial number, bucket arrangement, edge dimensions and mounting-hole layout.

Reference Part Numbers

• 135-9397 — official reference format

• 1359397 — common no-hyphen search format

• No independently confirmed superseding or fully interchangeable part number has been identified.

Applications

• Replaceable protection for the lower front edge of compatible buckets

• Stockpiling and material re-handling

• Excavating and bank loading

• Construction, mining, maintenance and material-handling operations
