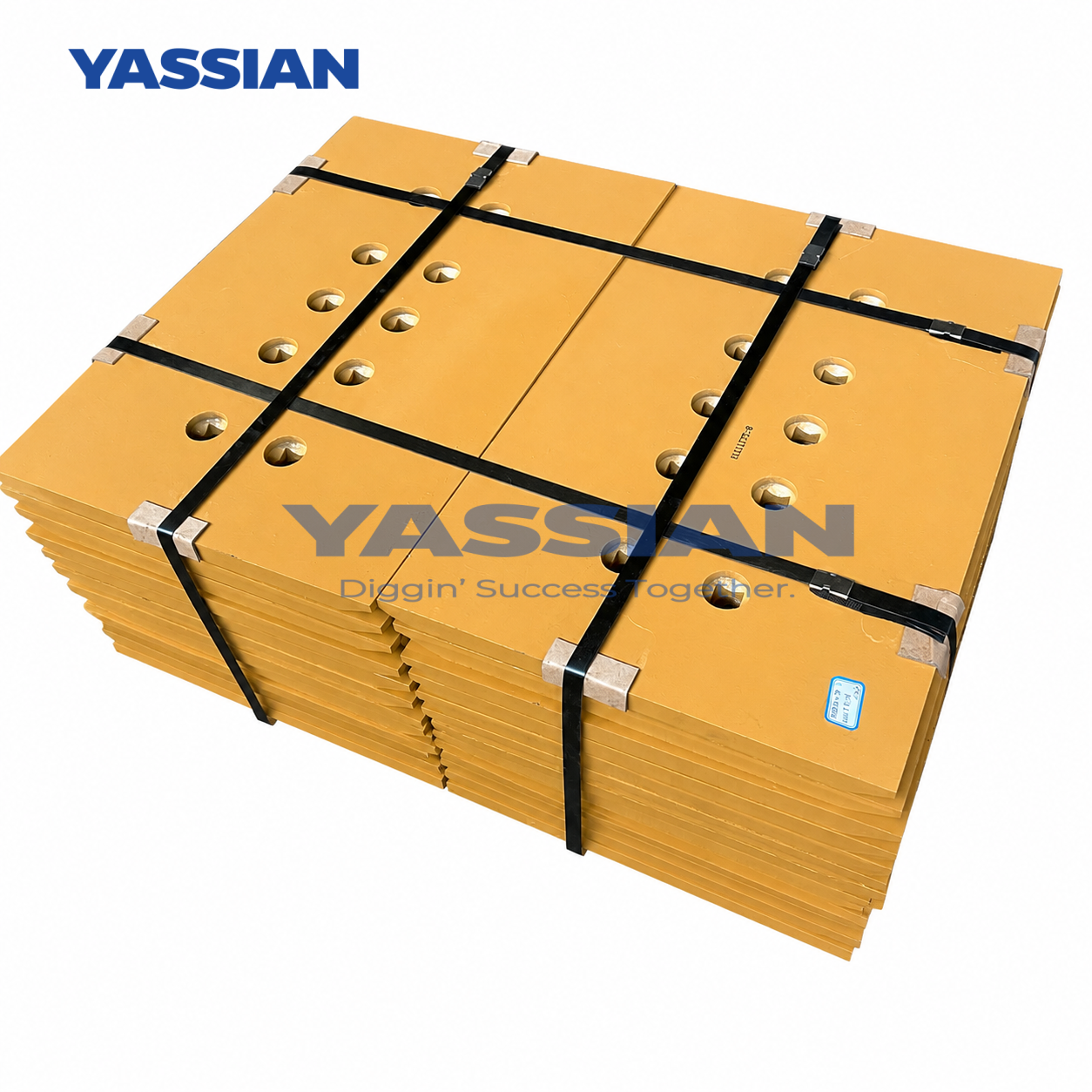

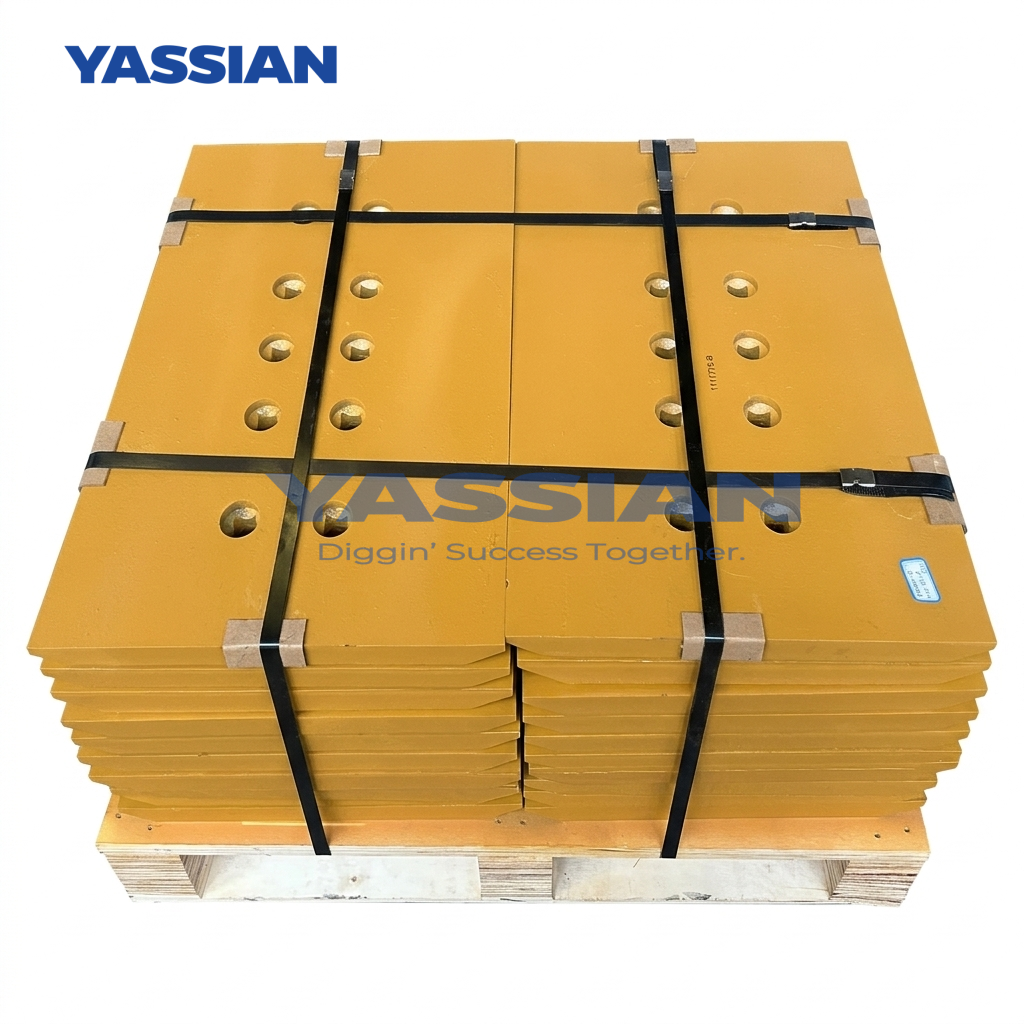

VOE11111775 Reversible Bolt-On End Cutting Edge for Volvo Wheel Loaders

The VOE11111775 bolt-on end cutting edge is a replaceable ground engaging component for selected Volvo wheel-loader buckets. It is installed at the outer end of a compatible bucket cutting-edge assembly, where it helps protect the base edge and maintain an effective material-entry profile.

The commonly listed version features a double-bevel, reversible profile with ten mounting holes. After one working edge reaches its wear limit, the part may be reversed when the bucket arrangement and remaining material condition permit, helping improve utilization of the wear component.

Industry catalogues commonly show nominal dimensions of approximately 718.8 mm long, 482.6 mm wide and 28.6 mm thick. However, some catalogues list a 31.75 mm thickness. Buyers should therefore verify the existing edge, bucket arrangement and complete mounting-hole pattern before placing an order.

Material grade, heat treatment and hardness should be specified according to the required operating conditions. Dimensional inspection, material documentation and hardness reports should be agreed upon when consistent batch quality is required.

Volvo names and reference numbers are used solely for product identification. This product is an aftermarket replacement part and is not represented as a genuine Volvo component.

Features

• Reference replacement for VOE11111775 and 11111775

• Bolt-on loader bucket end cutting edge

• Double-bevel reversible profile

• Ten-hole mounting arrangement

• Designed for compatible straight-lip bucket systems

• Replaceable without welding when used with the correct base-edge arrangement

• Wear-resistant steel options according to order requirements

• Suitable for construction, quarry, aggregate handling and general earthmoving

• Dimensional verification available from drawing, sample or existing-part measurements

• Suitable for distributors, importers, repair companies and fleet operators

Application

The VOE11111775 cutting edge is associated with selected bucket configurations used on Volvo large wheel loaders, including:

• Volvo L150 Series

• Volvo L180 Series

• Volvo L220 Series

Catalogue references include certain L150D/E, L220D/E and later L150G/H, L180G/H and L220G/H applications. This does not mean that every bucket fitted to these machines uses the same cutting edge.

Compatibility must be checked using:

• Machine model

• Machine serial number

• Bucket model or attachment number

• Bucket lip configuration

• Existing part number

• Length, width and thickness

• Hole quantity, diameter and full spacing

• Left/right installation position

• Product photographs

• Required quantity
