7T6936 RH/LH Dozer Cutting Edge for Cat D7 Series – Aftermarket Replacement

Share to:

7T6936 RH/LH Dozer Cutting Edge for Cat D7 Series – Aftermarket Replacement

Part Number ： 7T6936
Alternate Format ： 7T-6936
Product Type ： Bolt-on dozer cutting edge
Replacement Type ： Aftermarket replacement
Brand Reference ： Caterpillar / Cat
Installation Position ： RH/LH intermediate
Edge Type ： Continuous
Reference Dimensions ： 908 × 280 × 25 mm
Hole Quantity ： 6
Hole Size ： For 7/8-in plow bolt; 25 mm square reference
Hole Spacing ： 152.4 mm / 6.0 in
End 1 Hole Offset ： 66 mm / 2.598 in
End 2 Hole Offset ： 80 mm / 3.15 in

Model:
7T6936
Style:
Caterpillar

Availability:



Inquire

Product Description

Product Description

Full Description

Part number 7T6936 identifies a bolt-on dozer cutting edge referenced to Caterpillar 7T-6936. The published reference specification describes a continuous 25 mm edge for right- or left-hand intermediate positions on selected D7-series blade arrangements. It is installed along the lower blade line, where the replaceable edge contacts soil and other working material and helps shield the blade structure from direct wear.

The reference geometry is 908 mm long, 280 mm wide and 25 mm thick, with six holes for 7/8-inch plow bolts. The hole spacing is 152.4 mm, and the two published end offsets are 66 mm and 80 mm. These details are useful for incoming inspection and cross-reference work, but they should still be compared with the customer’s existing edge or blade drawing. Industry catalogs may describe this part as an end edge, a left/right edge or an RH/LH intermediate edge; the current Caterpillar listing uses RH/LH intermediate.

Published compatibility covers selected Caterpillar D7, D7E, D7E LGP, D7H, D7R, D7R II, D7R XR, D7R LGP and D7R Series track-type tractors. The OEM catalog also associates the reference with 7S, 7U, 7SU, 7A and 7S LGP blade references, including Semi-U blade applications. A machine model alone is not enough to establish fitment. Serial-number breaks, blade width, attachment configuration, previous modifications and edge arrangement can change the required part number and quantity.

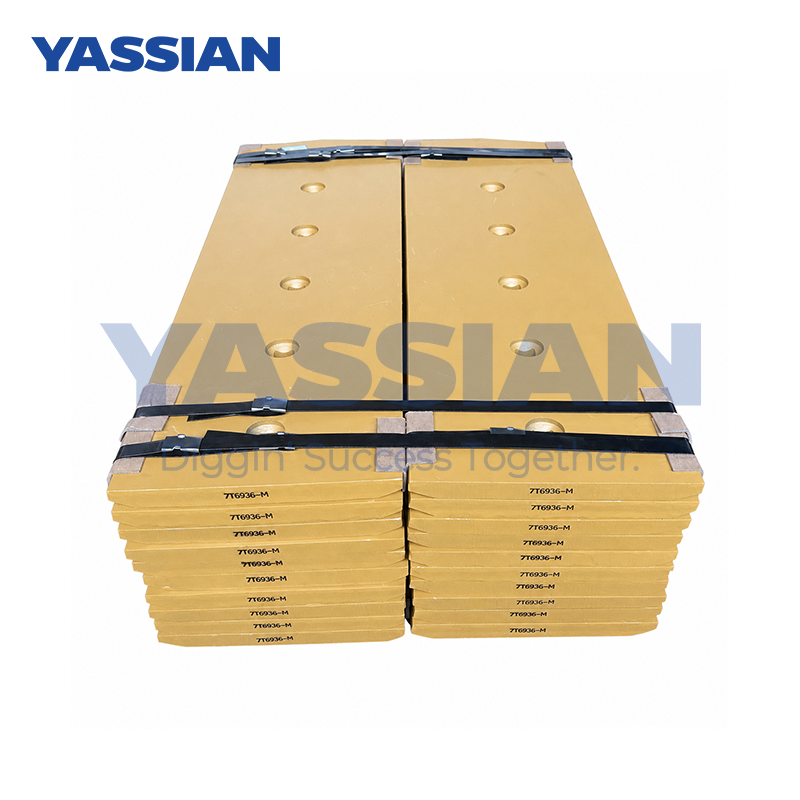

The uploaded photograph shows multiple yellow-painted cutting edges stacked in two strapped bundles. The visible side marking is 7T6936-M, and YASSIAN branding appears in the image. The “-M” suffix should be treated as a photographed supplier or production marking, not as a confirmed OEM cross-reference. The photograph does not establish material grade, hardness, heat treatment, unit weight or included mounting hardware.

This product is intended as an aftermarket replacement for maintenance of compatible dozer blades used in production dozing, finish dozing and overburden-removal work. It is suitable for B2B sourcing by equipment-parts distributors, importers, mine maintenance teams, repair workshops and contractors that can provide the information needed for fitment verification.

Before quotation or production confirmation, send the required part number, machine model, full serial number, blade type or arrangement number, required quantity, and photographs of the existing edge and mounting area. When the part number is missing or uncertain, also provide overall length, width, thickness, hole quantity, bolt size, center-to-center spacing, end offsets and bevel profile. Material, hardness, surface finish, packing method, inspection documents and delivery schedule should be agreed in the quotation or purchase specification. Bolts, nuts, washers and other accessories are not assumed to be included unless they are expressly listed in the offer.
