9W8620 Loader Bucket Center Cutting Edge for Cat 910/914 Series

Full Description

The 9W8620 is an aftermarket loader bucket cutting edge referenced to Caterpillar part number 9W-8620. It is designed for the center position of a compatible loader or backhoe-loader bucket and attaches to the bucket’s front edge using plow bolts. The replaceable cutting edge contacts the working material and helps protect the bucket lip during loading and material-handling operations.

The published OEM reference specification identifies 9W-8620 as a 19 mm bolt-on bucket cutting edge with straight ends and a continuous edge configuration. Its reference dimensions are 60.04 inches in length, 10.0 inches in width and 0.748 inch in thickness, equivalent to approximately 1,525 × 254 × 19 mm. Some industry catalogues round the overall length to 1,524 mm or 60 inches. These figures should be treated as cross-reference dimensions, and the supplied product should be measured before order confirmation.

The reference mounting pattern contains four square holes for 3/4-inch plow bolts. The published center-to-center hole spacing is 13.268 inches, approximately 337 mm. The distance from each end to the nearest hole center is 10.118 inches, approximately 257 mm. Buyers should compare all four mounting positions rather than checking only the overall length, because similar-looking cutting edges may use different hole spacing or end offsets.

Reference compatibility includes selected 910 and 914 compact wheel loaders, as well as specific 918M, G910, IT14G, IT14G2, 446, 446B, 450E and 450F applications. Compatibility can still vary according to machine serial number, bucket model, bucket width and cutting-edge system.

Reference applications include stockpiling, re-handling, excavating and bank loading. These applications describe the intended use of the reference cutting edge and should not be interpreted as a performance guarantee for every working condition.

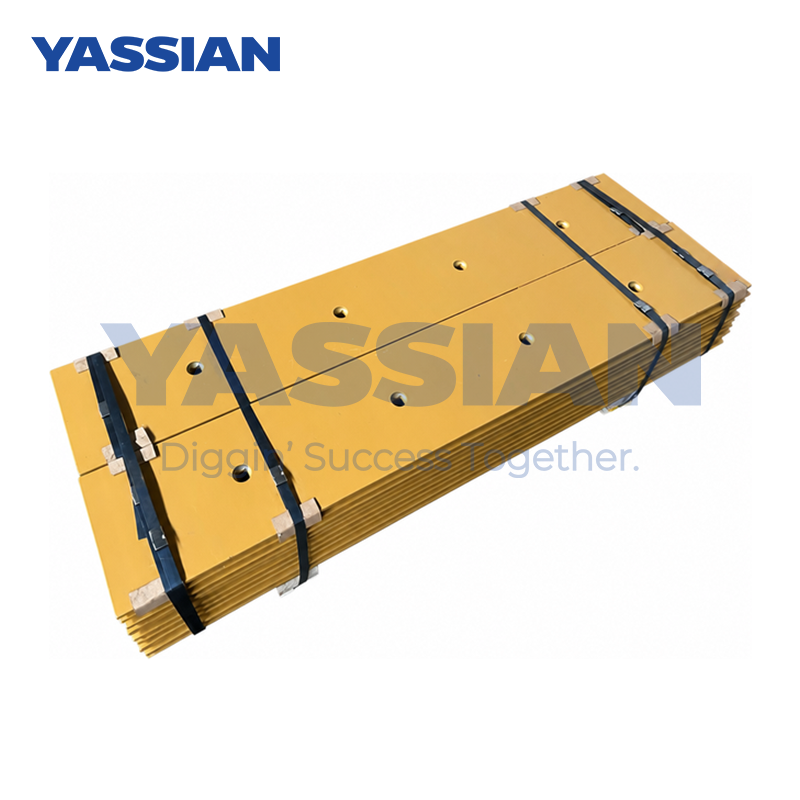

The supplied photograph shows multiple long, yellow-painted cutting edges stacked and secured with black packing straps and metal seals. Several countersunk mounting holes are visible along the center area. Overlapping products, viewing perspective and packing straps prevent the complete four-hole pattern of one individual edge from being verified from the image. No readable 9W8620 marking, material identification or hardness marking is visible.

The OEM reference specification identifies boron steel. The material grade, hardness, heat treatment, unit weight and manufacturing details of the supplied aftermarket product must be confirmed through the quotation, drawing or inspection documentation.

This replacement cutting edge is intended for parts distributors, importers, equipment repair companies, contractors, mines and fleet-maintenance buyers. For compatibility checking, please provide the machine model and serial number, bucket number, old part number, cutting-edge dimensions, complete hole pattern, quantity and delivery destination.

Key Features

• Aftermarket replacement referenced to Cat 9W-8620

• Center-position loader bucket cutting edge

• Bolt-on, straight-ended and continuous reference configuration

• Approximately 19 mm reference thickness

• Four-hole pattern for 3/4-inch plow bolts

• Reference applications across selected loader, toolcarrier and backhoe-loader models

• Yellow-painted appearance shown in the supplied photograph

• Suitable for B2B replacement-parts and fleet-maintenance procurement

Reference Part Numbers

• OEM Reference: 9W-8620

• Common Format: 9W8620

• Confirmed Equivalent or Superseding Number: Not provided

Related fastening references are 4F-7827 and 2J-3506. Mounting hardware is not assumed to be included.

Applications

• Loader bucket center cutting-edge replacement

• Stockpiling

• Material re-handling

• Excavating

• Bank loading

• Construction and earthmoving operations

• Fleet and repair-parts inventory
