Weld-On Bucket Adapter Types: Two-Strap, Bottom-Strap And Flush-Mount Explained

What is the difference between two-strap, bottom-strap and flush-mount weld-on bucket adapters? The main difference is how the adapter interfaces with the bucket lip and how its geometry distributes digging loads. Two-strap adapters generally provide a low-profile, penetration-focused design, while bottom-strap and flush-mount configurations are selected according to bucket-edge geometry, available welding area, wear protection and application requirements.

For excavator and loader buckets, the adapter is the structural link between the bucket lip and replaceable bucket tooth. Selecting the correct adapter is therefore not simply a matter of matching the tooth size. The adapter must also match the bucket edge, tooth system, mounting position and working conditions.

YASSIAN supplies a broad range of weld-on bucket adapters, including two-strap center and corner adapters, KMAX-compatible adapters and weld-on adapters for different OEM-compatible tooth systems. Its product range includes applications for CAT, Komatsu, Doosan and other equipment systems.

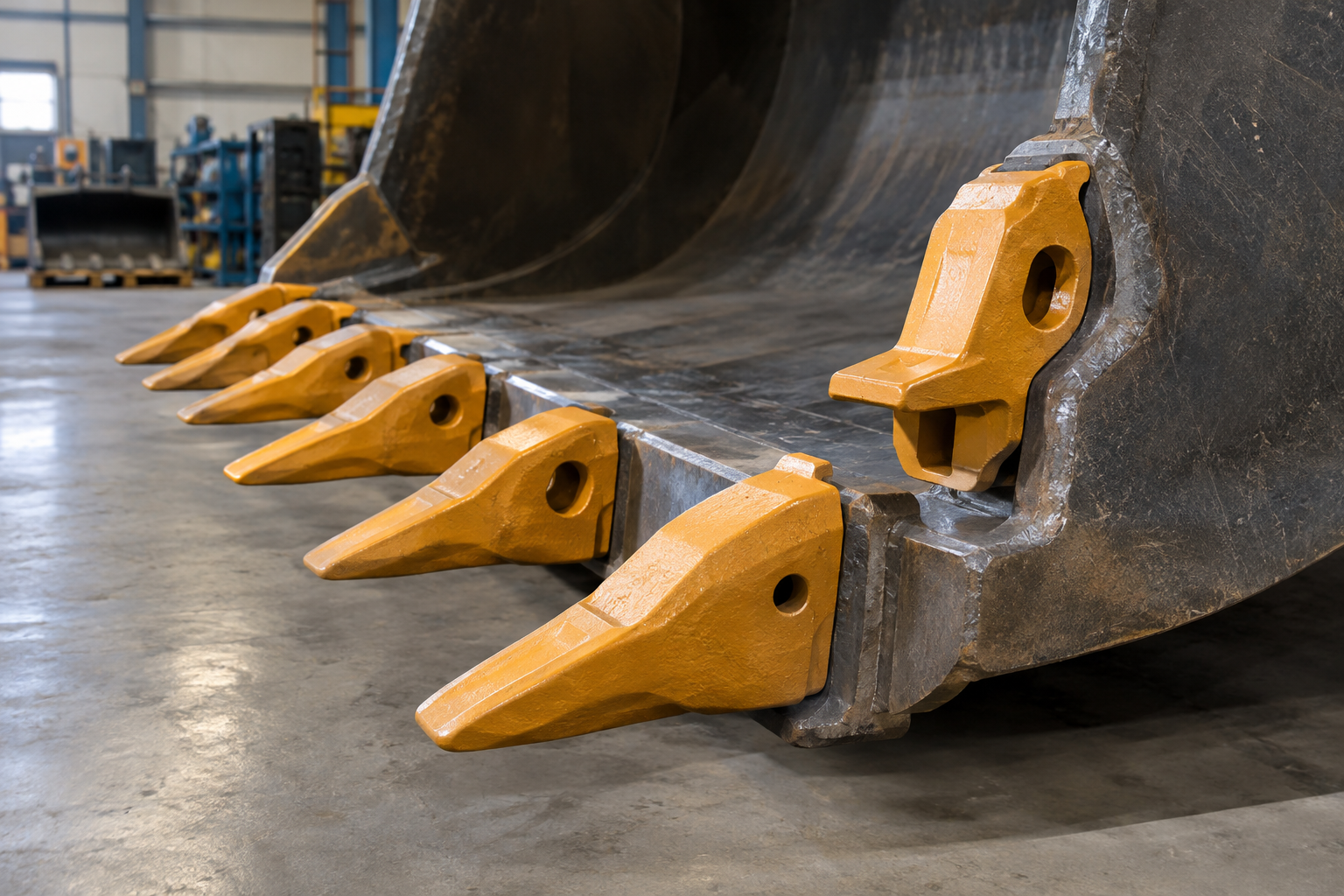

What Are the Main Types of Weld-On Bucket Adapters?

The three terms two-strap, bottom-strap and flush-mount describe common adapter configurations. However, terminology is not completely standardized across manufacturers. Some product catalogs use more than one of these terms to describe a particular adapter design.

For example, OEM product specifications can identify an adapter as a flush-mount design while also listing its mounting configuration as a bottom-strap type. This means buyers should always check the actual dimensions, mounting geometry and compatible bucket lip rather than relying on the name alone.

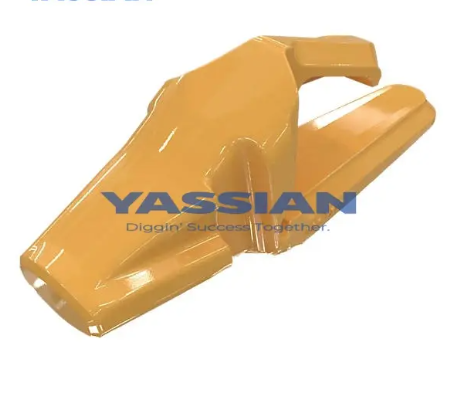

1. Two-Strap Weld-On Bucket Adapter

A two-strap weld-on bucket adapter uses upper and lower mounting surfaces or straps that wrap around the bucket's base edge. This configuration provides a broad connection to the bucket lip while maintaining a relatively low profile.

Two-strap adapters are widely used for excavator and loader buckets and are available in center and corner configurations.

For example, YASSIAN supplies K90 and K100 two-strap weld-on adapters, including left-hand corner, right-hand corner and center configurations. Its 220-9095 K90 LH corner adapter is designed around a 40 mm base edge with a 22.5-degree bevel.

220-9095 K90 Weld-On Two-Strap LH Corner Bucket Adapter for CAT Excavators

A lower profile can be particularly valuable when penetration is a priority. OEM GET information also identifies two-strap adapters as having a lower profile than certain flush-mount designs, which can support greater penetration.

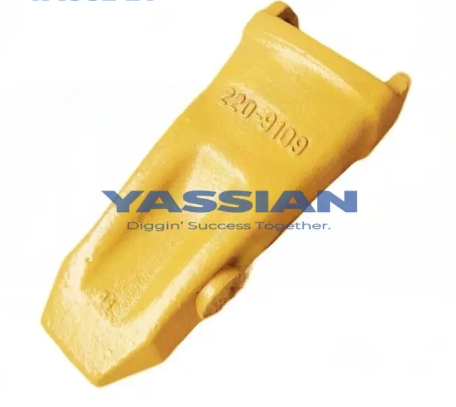

220-9109 K100 General Duty Bucket Tip for CAT-Style K Series

2. Bottom-Strap Weld-On Bucket Adapter

A bottom-strap adapter uses a lower strap as a key part of the mounting structure. Its geometry is designed around the bucket edge and the required welding area.

The important point is that "bottom-strap" should not be treated as a universal product category that is identical across all manufacturers. The actual shape, strap length, lip thickness and bevel requirements can vary significantly between tooth systems.

For example, published GET specifications can define an adapter as Type: Bottom Strap while also describing it as a flush-mount center adapter.

When purchasing a bottom-strap adapter, buyers should therefore confirm:

Specification	Why It Matters
Base edge thickness	Ensures the adapter fits the bucket lip correctly
Bevel angle	Affects adapter positioning and welding
Bottom strap length	Determines the contact and welding area
Adapter width	Must correspond to the bucket and tooth system
Tooth system	Ensures correct tooth and retainer compatibility
Position	Center, LH corner or RH corner
Application	Determines required strength and wear resistance

3. Flush-Mount Weld-On Bucket Adapter

A flush-mount weld-on bucket adapter is designed to sit closely against the bucket edge and provide a more integrated mounting profile.

Flush-mount configurations are often considered where bucket-edge protection, structural support and application-specific wear requirements are important. However, the exact geometry varies by tooth system and manufacturer.

For example, OEM specifications identify flush-mount adapters for excavator applications and provide specific requirements for base-edge thickness and bevel angle.

The key consideration is therefore not whether a flush-mount adapter is inherently better than a two-strap or bottom-strap adapter.

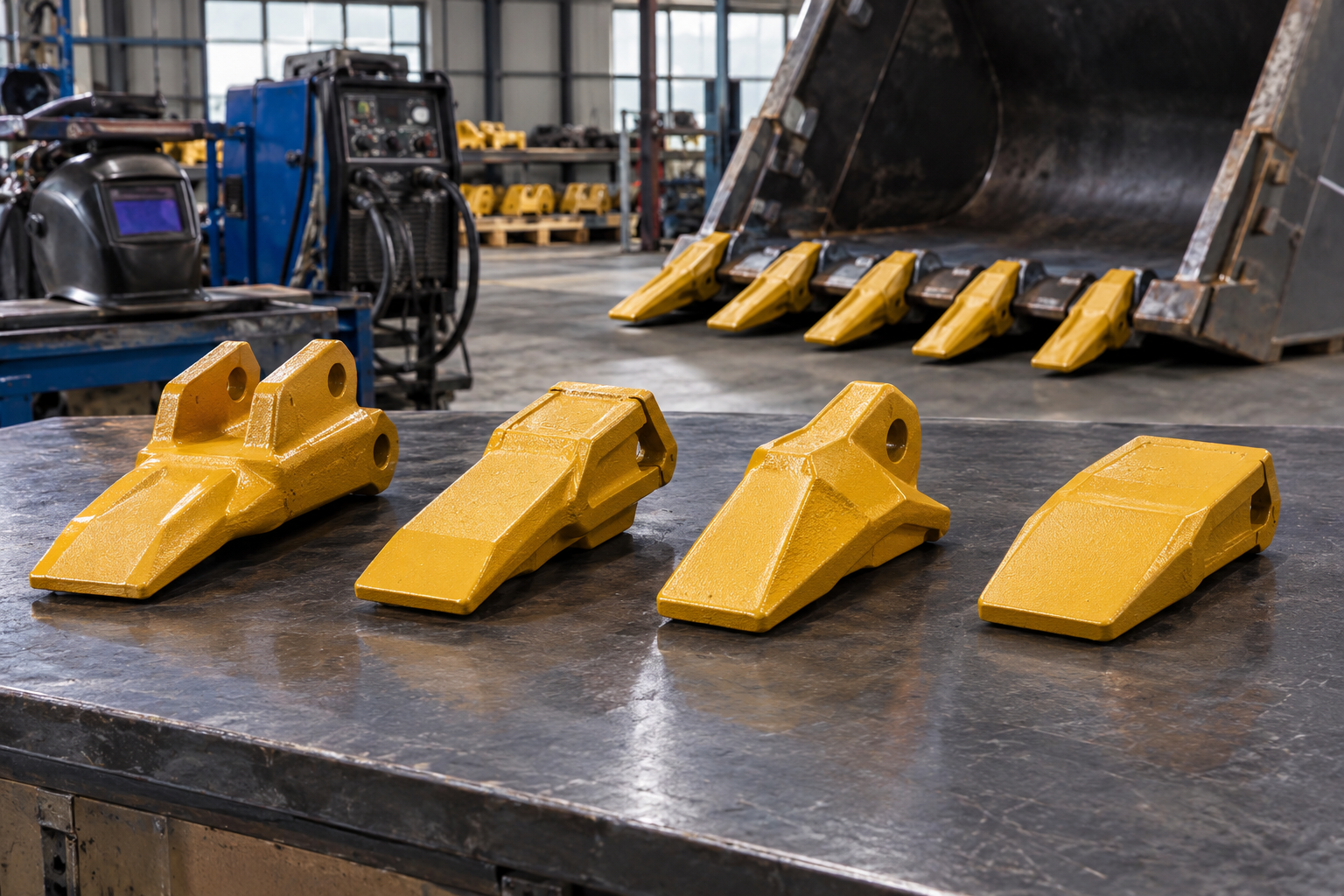

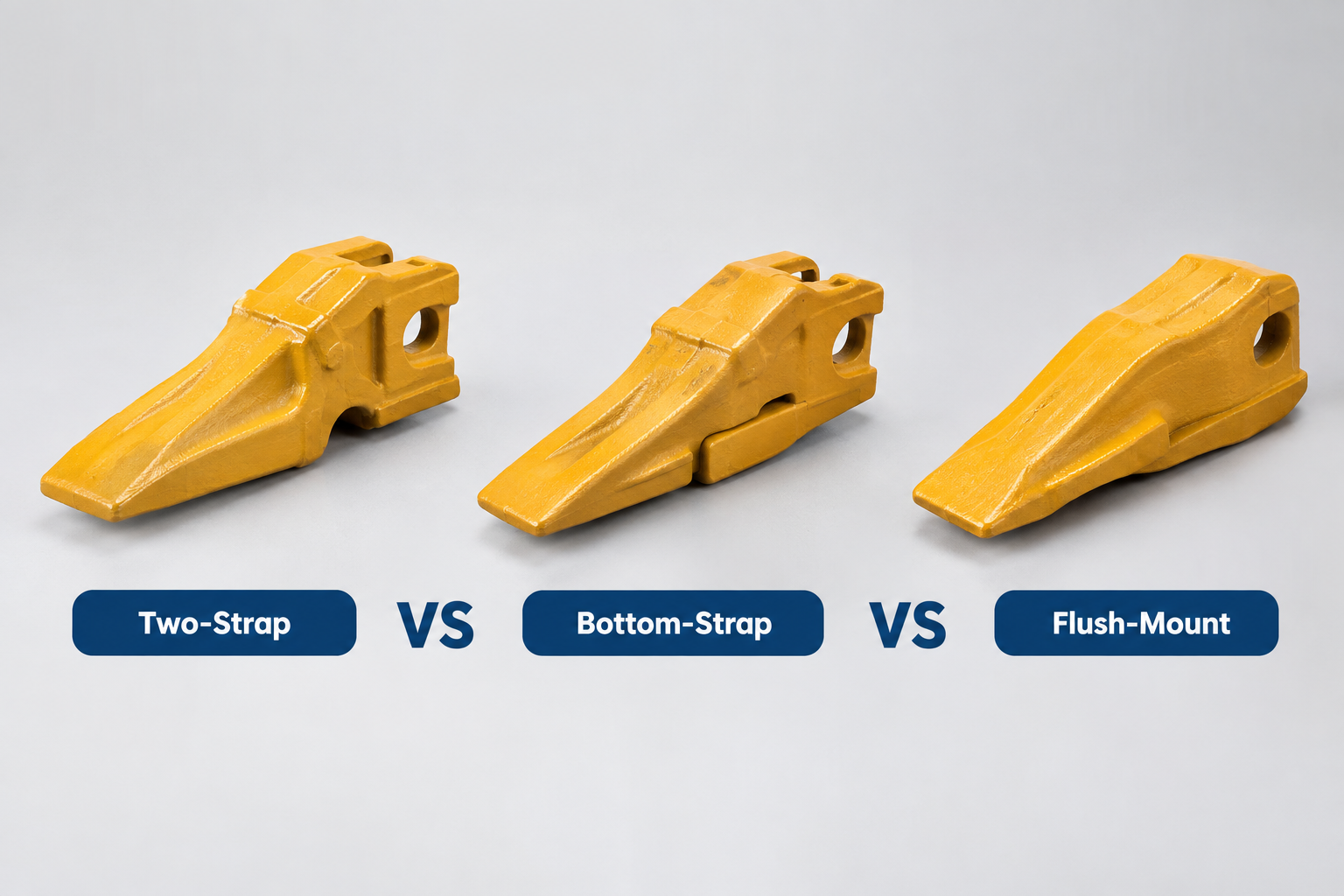

Two-Strap vs. Bottom-Strap vs. Flush-Mount: Key Differences

Feature	Two-Strap	Bottom-Strap	Flush-Mount
Main design characteristic	Upper/lower strap configuration	Lower strap is a major mounting element	Close-fitting bucket-edge profile
Primary consideration	Strength and penetration	Bucket-edge and welding geometry	Integration and wear protection
Common positions	Center and corners	Mainly application-dependent	Center or application-specific
Tooth compatibility	System-specific	System-specific	System-specific
Bucket lip matching	Critical	Critical	Critical
Welding required	Yes	Yes	Yes
Suitable for heavy-duty GET	Yes, when correctly specified	Yes, when correctly specified	Yes, when correctly specified
Selection priority	Tooth system + lip geometry	Lip geometry + welding requirements	Lip geometry + system design

There is no universally superior adapter type. The correct choice is the configuration engineered for the bucket lip, tooth system and working conditions.

How Do You Choose the Right Weld-On Bucket Adapter?

For B2B buyers, distributors and equipment repair professionals, adapter selection should follow a systematic process.

1. Identify the Tooth System

Start with the tooth rather than selecting an adapter based only on machine brand.

The adapter nose must correctly match the internal cavity of the bucket tooth, while the pin and retainer must provide the intended locking system.

YASSIAN manufactures OEM-compatible adapters for multiple equipment and tooth systems, including CAT, Komatsu, Volvo, Hitachi, JCB, Hyundai and Doosan/DEVELON applications.

2. Measure the Bucket Lip

The bucket lip is one of the most important physical dimensions.

Check:

• Base-edge thickness

• Bucket lip width

• Bevel angle

• Available welding area

• Adapter mounting position

For example, YASSIAN's product range includes weld-on adapters designed for specific edge dimensions, such as KMAX adapters for 50 mm bucket lips and adapters designed for 2-inch bucket lips.

3. Determine the Adapter Position

A bucket does not necessarily use the same adapter throughout the entire cutting edge.

Common configurations include:

• Center adapter

• Left-hand corner adapter

• Right-hand corner adapter

Corner adapters can also provide additional protection around high-wear bucket corners.

YASSIAN's 220-9095 K90 adapter, for example, is specifically configured for the left-hand corner of the bucket cutting edge, with corresponding center and right-hand versions available within the system.

4. Consider the Working Conditions

The same adapter design may not be appropriate for every application.

Consider whether the bucket will primarily handle:

General excavation:
Balanced penetration, wear resistance and service life are usually important.

Rock excavation:
Higher impact resistance and structural durability become more critical.

Quarrying and mining:
Adapter strength, tooth retention and resistance to severe impact and abrasion require particular attention.

Trenching:
Penetration and tooth configuration can become more important for maintaining digging efficiency.

5. Check the Complete GET System

Do not purchase an adapter based solely on a part number or visual similarity.

Verify:

Machine → Bucket → Bucket Lip → Adapter → Tooth → Pin/Retainer

A compatible tooth does not automatically mean that every adapter with a similar appearance will fit correctly.

YASSIAN's adapter compatibility guidance emphasizes that adapter dimensions, nose profile, locking mechanism and bucket-lip requirements all need to correspond to the intended system.

YASSIAN Weld-On Bucket Adapter Solutions

As a Ground Engaging Tools manufacturer and supplier, YASSIAN provides a wide range of bucket tooth adapters for excavators, loaders and other earthmoving equipment.

The product range includes:

• Two-strap weld-on adapters

• Center weld-on adapters

• LH and RH corner adapters

• KMAX-compatible adapters

• OEM-compatible bucket adapters

• Bucket teeth and matching retention components

Examples in the current YASSIAN adapter range include K25 and K20 KMAX-compatible Type 1 weld-on adapters, XS145 weld-on center adapters, KMAX K70 adapters and CAT-compatible K90/K100 two-strap adapters.

YASSIAN also supports OEM-compatible and custom GET requirements, allowing distributors, contractors, equipment dealers and aftermarket brands to specify products according to their equipment and application requirements.

Conclusion

Two-strap, bottom-strap and flush-mount are different ways of configuring a weld-on bucket adapter, but the correct choice depends on the complete GET system rather than the adapter name alone.

For reliable selection, verify five key factors:

Tooth system + bucket lip + adapter geometry + mounting position + working conditions.

For excavator, loader, quarry, mining and heavy-construction applications, a correctly matched weld-on bucket adapter provides the foundation for secure tooth retention, efficient force transmission and controlled wear across the bucket GET system.

If you are sourcing weld-on bucket adapters in bulk, OEM-compatible GET parts or custom adapter solutions.  YASSIAN can provide technical specifications and matching solutions based on your bucket, tooth system and application requirements
