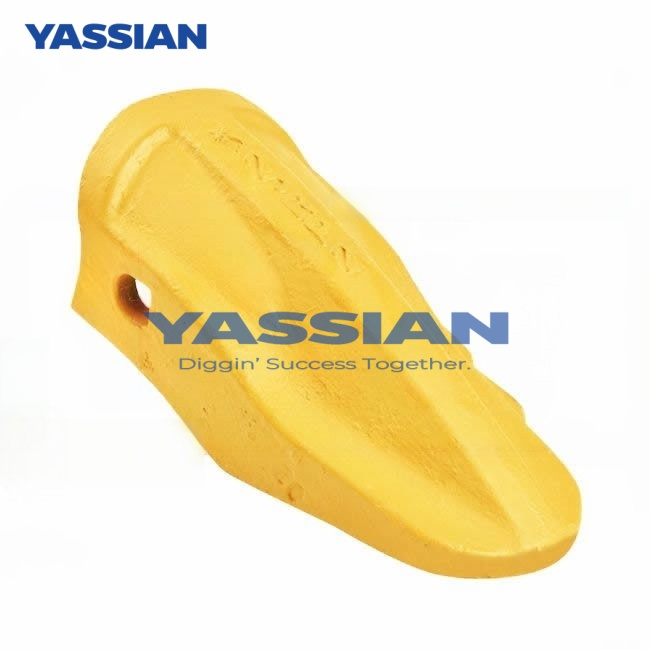

K20RP2 Rock Penetrator Bucket Tooth for Kmax 20 Series

The K20RP2 Rock Penetrator Bucket Tooth is designed for wheel loader buckets fitted with a compatible Kmax K20 Series adapter. The RP2 profile combines an extended penetrating shape with additional wear material along the bottom of the tooth, providing a practical balance between rock penetration and bottom wear life.

Unlike a standard symmetrical digging tooth, the RP profile is primarily intended for loader applications involving rock, gravel, crushed material and abrasive mixed ground. Its shape helps the bucket penetrate difficult material while retaining additional steel in the high-wear bottom area.

The K20RP2 tooth is commonly secured with a KP20C fastener. Published Kmax references list a nominal weight of approximately 7.8 kg, although actual aftermarket product weight may vary according to manufacturer, material specification and production tolerance.

Machine model alone is not sufficient to guarantee fitment. Buyers should confirm the existing adapter number, fastener designation, bucket edge configuration and tooth-pocket dimensions before ordering.

This product is supplied as an aftermarket replacement part and is not represented as a genuine Komatsu or Hensley component.

Product Features

• K20RP2 reference for compatible Kmax 20 Series systems

• RP2 rock penetrator profile for loader applications

• Non-symmetrical design with additional bottom wear material

• Improved penetration in rock, gravel and compacted material

• Designed for greater bottom wear life than standard profiles

• Compatible with KP20C K20-series fastener

• Wear-resistant alloy steel construction

• Replaceable design helps reduce bucket maintenance downtime

• Suitable for construction, quarrying and aggregate handling

• Custom logo, color and export packaging available

• Dimensional and hardness inspection available before shipment

Application Range

The K20RP2 tooth is primarily designed for wheel loader applications involving:

• Rock loading

• Crushed stone

• Gravel

• Quarry material

• Aggregate handling

• Compacted mixed material

• Abrasive construction material

• Heavy earthmoving

• Applications requiring additional bottom wear material

Possible machine references include selected WA430, WA470 and WA480 bucket configurations, but only when equipped with a compatible Kmax K20-series adapter and KP20C fastener.
