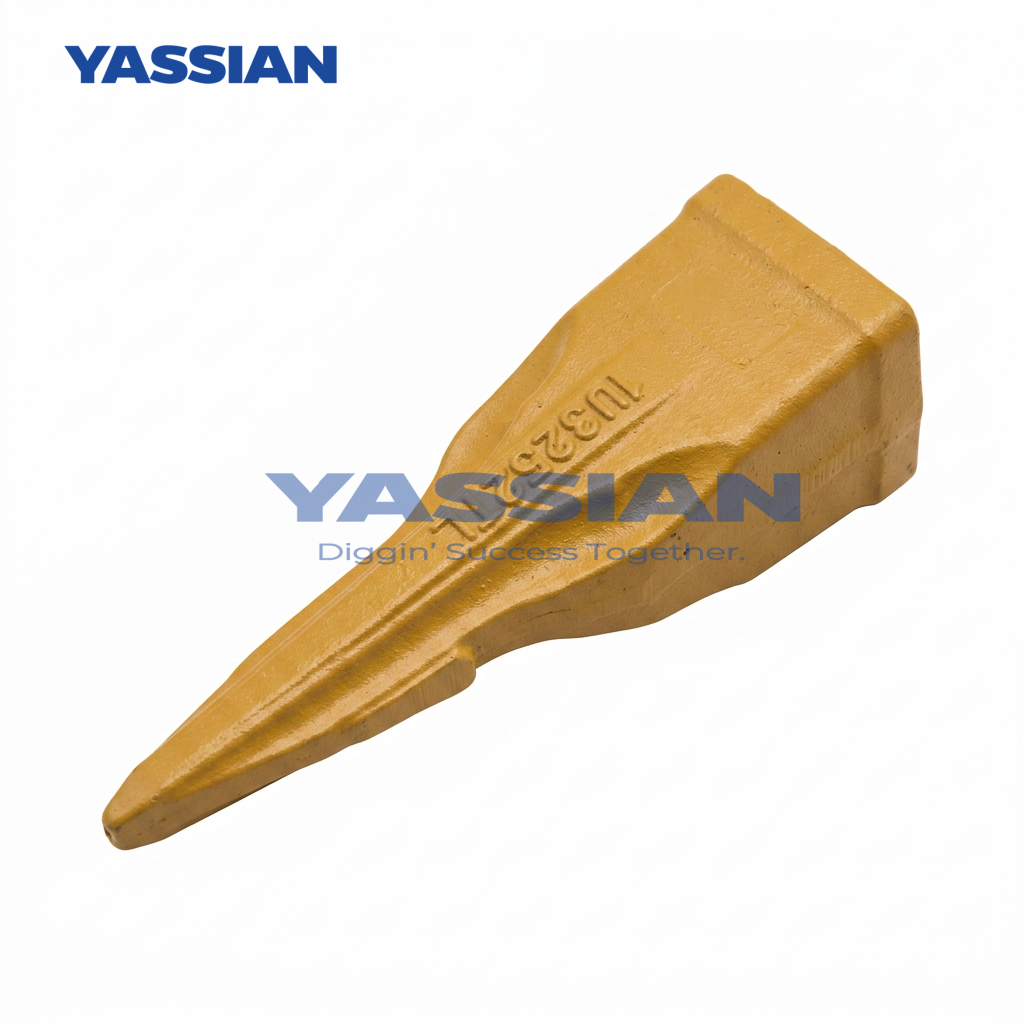

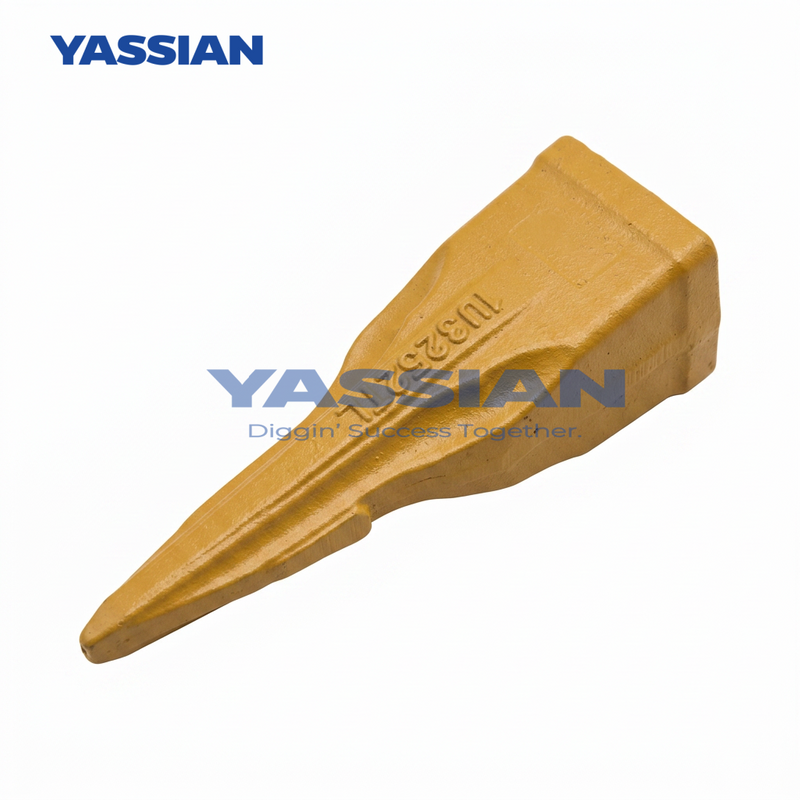

1U3252TL J250 Single Tiger Bucket Tooth – 9W8259 Reference

The 1U3252TL J250 single tiger bucket tooth is a replaceable ground engaging tip designed for buckets equipped with a compatible J250 adapter nose. Its narrow center-point profile concentrates digging force at the leading edge, providing improved penetration in compacted soil, clay and similar dense materials.

The number 1U3252TL is widely used in the aftermarket for a J250 tiger-style tooth and is commonly cross-listed with 9W8259. However, aftermarket tooth length, weight, internal pocket dimensions and pin-hole position can vary between manufacturers. Buyers should not rely on the reference number alone when confirming fitment.

This tooth normally uses a J250 side-pin retention system. Common hardware references include the 9J2258 or 8E6258 pin and 8E6259 retainer. Hardware availability and inclusion should be confirmed separately when requesting a quotation.

For accurate selection, send YASSIAN the old tooth and adapter photos, reference part number, machine model and serial number, pocket dimensions, required quantity and preferred packaging.

Features

• J250 side-pin tooth system

• Single tiger or center-point profile

• Concentrated leading edge for improved penetration

• Suitable for compacted soil and dense digging materials

• Replaceable design for easier bucket maintenance

• Common aftermarket reference to 9W8259

• Matching pin and retainer available upon request

• Dimensional inspection before shipment

• Custom logo, color and export packaging options

• Suitable for dealer, importer and bulk replacement orders

Application

Designed for buckets using a compatible J250 adapter nose and side-pin retention system. The single tiger profile is suitable for:

• Compacted soil and clay

• Trenching and foundation excavation

• Dense material requiring concentrated penetration

• Selected excavator, backhoe loader and wheel loader buckets

• Applications where penetration is more important than maximum tip width

The 9W8259 reference is officially associated with selected Cat 307C, 308C, 311, 312, 314C, M312, M315 and related excavator configurations. Machine model alone does not guarantee fitment because bucket arrangements and adapters may have been changed.

This profile is not automatically the best choice for extreme abrasion or severe side-impact conditions. Select the tooth style according to the working material and bucket geometry.
