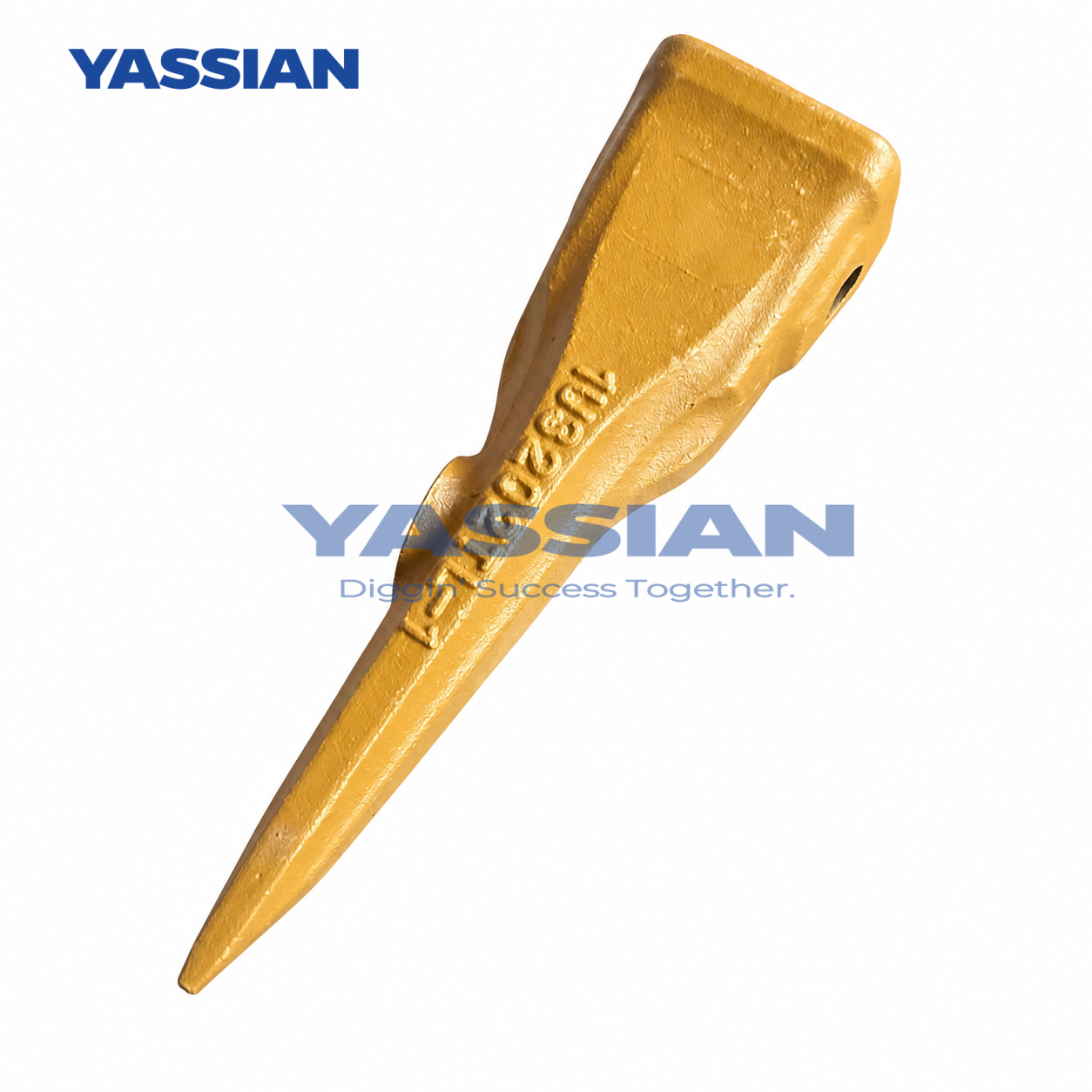

9W-8209 J200 Single Tiger Bucket Tooth – 1U3202TL Style

The 9W-8209 J200 single tiger bucket tooth is a replaceable ground engaging tip designed for buckets equipped with a compatible J200 adapter nose. Its narrow center-spike profile concentrates digging force at the leading edge, supporting penetration in compacted soil, clay and similar dense materials.

This product is commonly cross-referenced in the aftermarket as 1U3202TL or 1U3202T. Because dimensions and casting profiles may vary between manufacturers, the cross-reference number alone should not be used as the final fitment standard. Buyers should verify the adapter nose size, pin-hole position, key dimensions, machine model and serial number before placing an order.

The tooth uses a side-pin retention system. The recognized J200 hardware combination is the 8E-6208 pin and 8E-6209 retainer. The number 9W7112 may also appear in aftermarket catalogs as an alternative pin reference. Pins and retainers should be specified separately when requesting a quotation.

For accurate selection, send YASSIAN your reference part number, product photos, adapter dimensions, machine information and required quantity.

Key Features

• J200 side-pin bucket tooth design

• Single tiger or center-spike profile

• Concentrated leading edge for improved penetration

• Suitable for compacted soil, clay and trenching applications

• Replaceable GET component for easier bucket maintenance

• Compatible with 8E-6208 pin and 8E-6209 retainer

• Dimensional and fitment verification available before production

• Custom marking, color and packaging available upon confirmation

Application

Designed for buckets using a compatible J200 adapter and side-pin retention system. The center-spike profile is suitable for:

• Compacted soil and clay

• Trenching and foundation work

• General excavation requiring increased penetration

• Selected backhoe loader and excavator bucket applications

Official Cat information currently associates 9W-8209 with selected 416, 416B, 416C, 426, 426C, 428, 428B, 428C, 436C and 438C backhoe loader configurations. Fitment can vary by serial number, bucket arrangement and previous modifications.
