61Q6-31310RC Rock Chisel Bucket Tooth for Hyundai 61Q6-31310 System

Full Description

The 61Q6-31310RC is a replaceable excavator bucket tooth with a rock-chisel working profile. It is offered as an aftermarket replacement for buckets using the Hyundai-style 61Q6-31310 tooth system. The base reference 61Q6-31310 is identified in parts catalogues as a POINT-TOOTH, while the RC suffix is commonly used in the aftermarket Ground Engaging Tools industry to identify a rock-chisel or rock-duty profile. It should not be interpreted as a confirmed Hyundai official suffix.

The tooth mounts over a compatible adapter installed along the bucket cutting edge. A locking pin and retainer secure the tooth to the adapter. Its elongated, tapered working end is intended for excavator digging and loading applications where a chisel-shaped tooth is selected for penetration into compacted, abrasive or rock-influenced material. Actual suitability depends on material conditions, bucket configuration, operating technique and tooth-system selection.

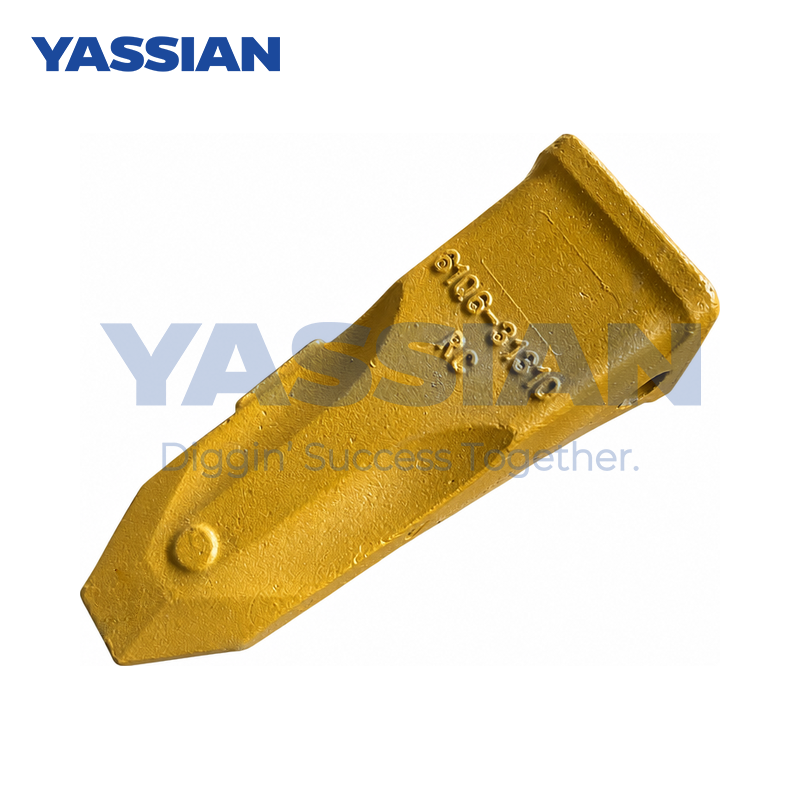

The photographed product has a yellow-painted, one-piece body with a long wedge-shaped nose, an enlarged rear socket and a visible side opening near the mounting end. Raised identification characters corresponding to 61Q6-31310 and the RC designation are visible on the upper surface. The photograph does not show a separate pin, retainer or adapter, so these components are not assumed to be included.

The 61Q6-31310 base system is documented for the Hyundai R210LC-9. Aftermarket references also associate the RC version with selected R210-9, R215-9, R220 and R225-9 applications. However, machines within the same model family may use different buckets, adapters or locking arrangements. Compatibility must be checked against the machine serial number, bucket identification, existing tooth number, adapter casting number and installation dimensions.

E161-3035 is a commonly referenced pin for the 61Q6-31310-style system. Available industry catalogues list either 61E5-11150 or S411-180002 as retainer references. The correct combination must be verified before ordering. Pins, retainers and adapters should be quoted separately unless the sales confirmation specifically lists them.

This replacement tooth is suitable for distributors, importers, mine maintenance teams, repair workshops and engineering contractors sourcing excavator Ground Engaging Tools. For compatibility checking and batch quotations, please provide the required quantity, destination, machine information and either an existing part number or dimensioned product photographs.

Key Features

• Rock-chisel working profile for excavator bucket applications

• Based on the Hyundai-style 61Q6-31310 tooth system

• Raised identification marking on the tooth body

• Socketed mounting end for a matching bucket adapter

• Yellow-painted surface on the photographed product

• Suitable for replacement-parts and bulk B2B procurement

• Compatibility checking available from machine and adapter information

Compatible Machine Models

• Hyundai R210LC-9 — confirmed reference for the base 61Q6-31310 system; verify the RC tooth profile

• Hyundai R210-9 — commonly referenced aftermarket application; confirm before ordering

• Hyundai R215-9 — commonly referenced aftermarket application; confirm before ordering

• Hyundai R220 series — commonly referenced aftermarket application; confirm before ordering

• Hyundai R225-9 — commonly referenced aftermarket application; confirm before ordering

Compatibility depends on the installed bucket, adapter and retention system. Do not order solely by machine model.

Reference Part Numbers

• 61Q6-31310 — OEM base reference

• 61Q631310RC — common non-hyphenated product-number format

• E161-3035 — related pin reference; not assumed included

• 61E5-11150 / S411-180002 — possible retainer references; verify before ordering

No fully verified direct equivalent has been established for the RC tooth profile.

Applications

• Excavator bucket digging

• Loading and material handling

• Earthmoving and construction work

• Quarry and mine maintenance

• Compacted or rock-influenced material, subject to tooth-selection review
