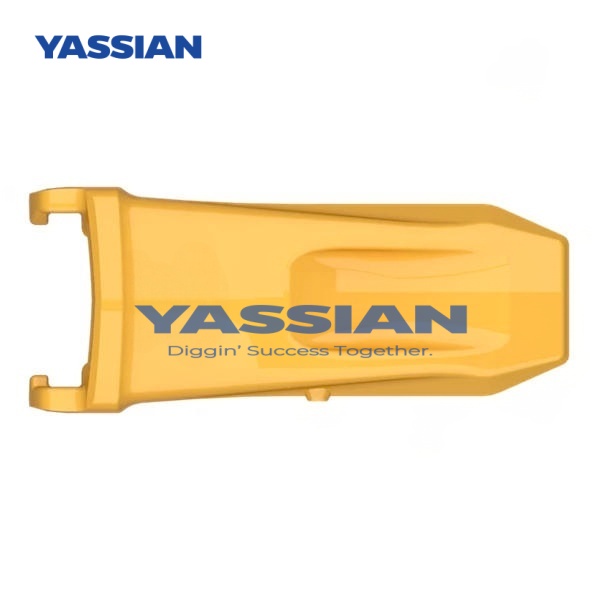

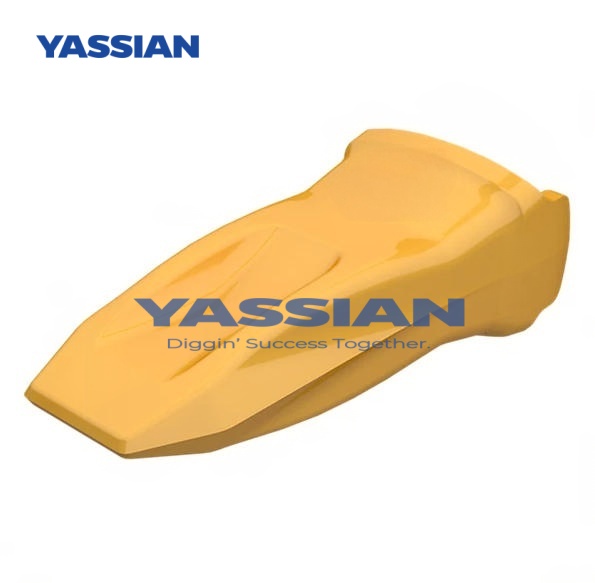

264-2131 K130 Heavy Duty Long Bucket Tip – Aftermarket Replacement

The 264-2131 is a K130 K Series Heavy Duty Long bucket tip designed for applications requiring increased usable wear material and a durable general-purpose working profile. The reference design incorporates approximately 60 percent more wear material in the tip body than the corresponding standard profile, helping maintain serviceable tip length during demanding earthmoving and loading operations.

The CAT reference tip length is 386 mm. Published aftermarket weights vary from approximately 22.5 to 24.3 kg, so the actual net weight of the supplied casting should be confirmed from the relevant production batch.

Caterpillar currently identifies reference part number 264-2131 as discontinued. This aftermarket product is intended for maintenance of compatible legacy K130 bucket systems. Before ordering, verify the existing tooth number, adapter nose, retainer arrangement, internal pocket dimensions and machine bucket configuration.

Key Features

• Aftermarket replacement for reference number 264-2131

• K130 K Series interface

• Heavy Duty Long / Extra Duty profile

• Increased usable wear material in the tip body

• 386 mm reference tip length

• Suitable for compatible excavator and wheel-loader buckets

• Replaceable vertical-retention GET component

• Designed for heavy earthmoving and loading duties

• Material and hardness reports available by agreement

• Dimensional inspection available for B2B orders

• Custom marking, color and export packaging options

• Suitable for legacy K130 maintenance programs

Applications

The 264-2131 Heavy Duty Long tip is intended for compatible K130 bucket systems where additional usable wear material is preferred over a narrow penetration profile.

Typical applications include:

• Heavy earthmoving

• General excavation

• Large-scale site preparation

• Compacted soil and mixed ground

• Quarry overburden

• Aggregate loading

• Wheel-loader production loading

• Excavator bulk digging

• Bucket rebuilding

• Maintenance of legacy K130 GET systems

Referenced Equipment

The CAT reference part is associated with the following equipment:

Excavators

• 345C

• 345C L

• 345D L

• 345D L VG

• 349E L

• 349E L VG

• 365C

• 365C L

Wheel Loader

• 988H

These machine references do not guarantee compatibility with every bucket installed on the listed models.

Compatibility Notice

Do not order solely by machine model. Verify:

• Existing tip part number

• K130 adapter nose

• Adapter part number

• Retainer style and number

• Internal tip pocket dimensions

• Existing tip length and profile

• Bucket model or serial number
