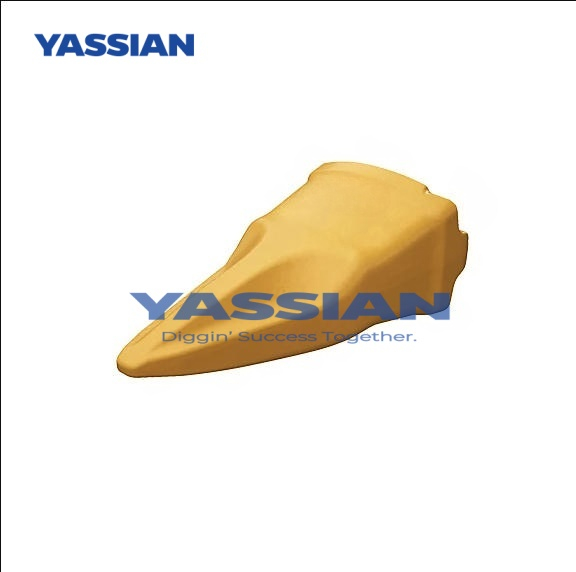

220-9132 K130 Penetration Bucket Tip – Aftermarket Replacement

The 220-9132 is a K130-series penetration bucket tip designed for efficient entry into densely compacted materials. Its narrow leading edge reduces the amount of material displaced during initial engagement, while a single center rib supports the working profile under demanding digging loads.

The reference tip length is 364 mm. Industry cross-reference tables commonly report an approximate weight of 15.9 kg, but the actual weight of the supplied aftermarket casting should be confirmed from the relevant production batch.

Caterpillar currently identifies reference part number 220-9132 as discontinued. This aftermarket product is intended for replacement and maintenance of compatible legacy K130 bucket systems. Before ordering, confirm the existing tip number, adapter nose, retainer arrangement and internal pocket dimensions.

Key Features

• Aftermarket replacement for reference number 220-9132

• K130 K Series interface

• Penetration profile for densely compacted materials

• Narrow leading edge for efficient material entry

• Single reinforced center rib

• 364 mm reference tip length

• Replaceable GET wear component

• Suitable for compatible legacy K130 systems

• Material and hardness inspection available by agreement

• Dimensional verification available for B2B orders

• Custom marking, color and export packaging options

• Suitable for bucket maintenance and fleet replacement programs

Applications

The 220-9132 penetration tip is intended for compatible K130 bucket systems working in conditions where efficient entry is more important than a wide cutting profile.

Typical applications include:

• Densely compacted soil

• Hard-packed earth

• Compacted clay

• Dense mixed ground

• Trenching in consolidated material

• Heavy earthmoving

• Quarry overburden

• Site preparation

• Bucket rebuilding

• Maintenance of legacy K130 GET systems

This penetration profile is not automatically the best option for severe abrasion, extreme impact or wide-bottom cleaning. Select the tooth profile according to actual material and wear conditions.

Product Selection Guide

Part numbers in this table are reference identifiers. Current availability and supersession status should be verified separately.

Compatibility Notice

Compatibility cannot be confirmed from the machine model alone. K130 buckets may use different adapter styles, retention generations and tip profiles.

Before ordering, provide:

• Existing tip part number

• Adapter part number

• Retainer or pin number

• Tip pocket photographs

• Overall tip length

• Machine and bucket model

• Required quantity
