A loader bucket may look simple, but its design affects loading efficiency, fuel consumption, machine stability and wear costs. Choosing only by width or capacity can cause poor penetration, spillage, slow cycles or premature damage.
The right loader bucket must match the machine, the material and the working conditions. A bucket designed for grain will not survive continuous rock loading, while a heavily reinforced rock bucket may be unnecessarily heavy for coal or woodchips.
This guide explains the main loader bucket types and the factors buyers should consider before ordering a new or replacement bucket.

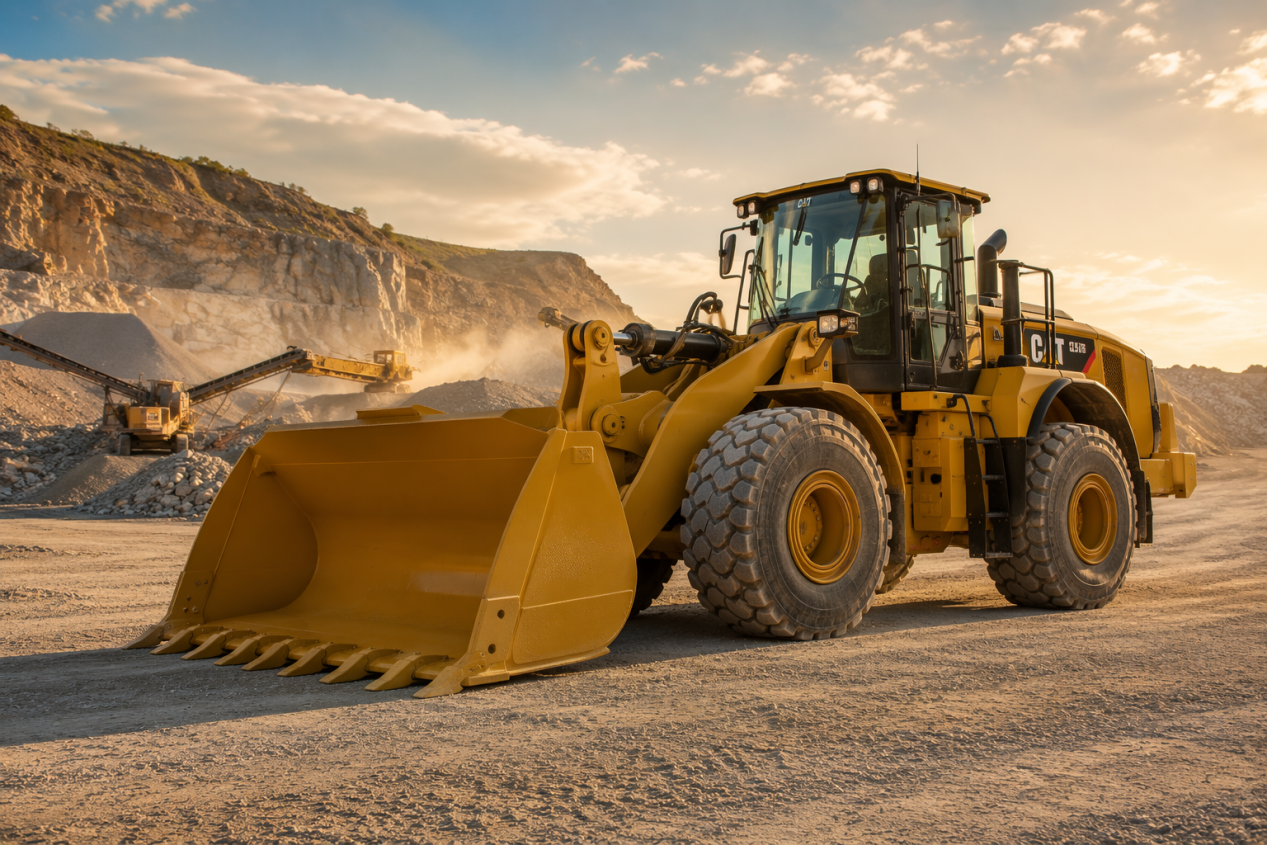

A loader bucket is a front-mounted attachment used by wheel loaders, front-end loaders, compact loaders and skid steer loaders to dig, load, carry and dump material. Common materials include soil, sand, gravel, crushed stone, blasted rock, coal, grain, fertilizer, woodchips and demolition waste.
Key components include the shell, base edge, cutting edge, teeth and adapters, side cutters, wear plates and mounting brackets. Their design determines filling, material retention and wear life.
The general purpose loader bucket is the most versatile choice for everyday work. It balances capacity, weight and filling performance, making it suitable for soil, sand, gravel, loose aggregate and general construction materials.
It may use a smooth bolt-on cutting edge for loading and grading or bucket teeth for better penetration. This is a practical option for contractors handling several relatively loose materials, but it normally lacks the protection required for continuous severe rock work.
A heavy-duty loader bucket has thicker structural plates, stronger corners, a reinforced base edge and additional wear protection. It is designed for compacted soil, dense gravel, broken concrete and mixed construction material.
It offers a useful balance when a general purpose bucket is too light but a full rock bucket would add unnecessary weight and cost. However, "heavy-duty" does not automatically mean suitable for every quarry or mining application. Impact and abrasion levels must still be evaluated.
The rock loader bucket is built for quarries, mines and loading blasted rock. Its short, strong profile improves penetration, while reinforced corners and a heavy base edge distribute high digging forces.
Typical protection includes heavy-duty bucket teeth and adapters, side cutters, bottom wear plates, side wear plates and heel protection. Rock buckets are generally heavier and may have less volume than general purpose buckets for the same loader. This tradeoff favors strength, penetration and service life over maximum capacity.
Impact and abrasion are different. Large rocks create concentrated shock loads, while sand, granite fines, ore and slag continuously grind against the bucket floor and sides.
A high-abrasion loader bucket uses broader wear-plate coverage and abrasion-resistant steel in high-flow areas. The goal is to protect the bucket without adding so much weight that usable payload is reduced. This type is well suited to crushed granite, high-silica sand, ore, slag and other abrasive materials.
A light material bucket has greater internal volume and taller sides than a standard bucket. It is designed for low-density materials such as coal, grain, fertilizer, snow, woodchips, mulch and animal feed.
Because these materials are light, the loader can safely carry more volume per cycle. This can improve productivity in agriculture, ports and bulk storage facilities. However, its large capacity does not provide heavy-duty strength. Using it for rock or dense wet material may overload the machine and damage the bucket.
A high dump loader bucket, also called a high-tip bucket, uses an additional hydraulic mechanism to increase discharge height. It helps load high-sided trucks, hoppers, feed mixers and processing equipment that cannot be reached efficiently with a standard bucket.
It is useful for grain, fertilizer, coal, woodchips and waste. Buyers should check hydraulic requirements, bucket weight, dump clearance and load-center changes. Additional cylinders and pins also require maintenance.
A multi-purpose loader bucket opens hydraulically and can load, dig, grade, doze, scrape, clamp and discharge material. Its versatility makes it attractive for landscaping, road maintenance, farms, utility work and small construction projects.
It can reduce attachment changes, but it is heavier and more complex than a standard bucket. For continuous high-volume loading, a dedicated bucket may still provide faster cycles.

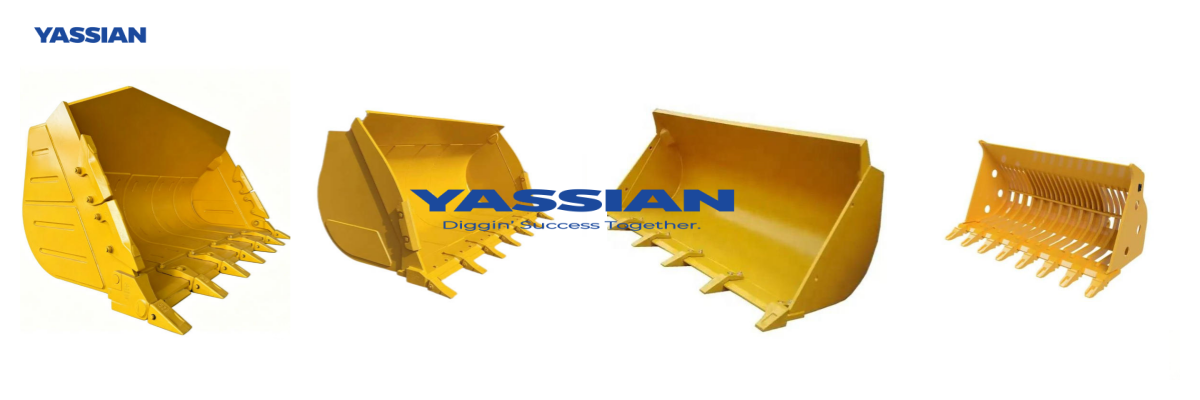

A side dump bucket unloads sideways in tunnels and confined sites. A skeleton bucket uses spaced bars to screen fine material while retaining rocks, roots or demolition debris.
Start with density, particle size, moisture, abrasiveness and impact. Loose sand needs a different bucket from blasted rock, while wet material may be much heavier than its dry equivalent. Select for the most demanding condition the bucket will regularly face.

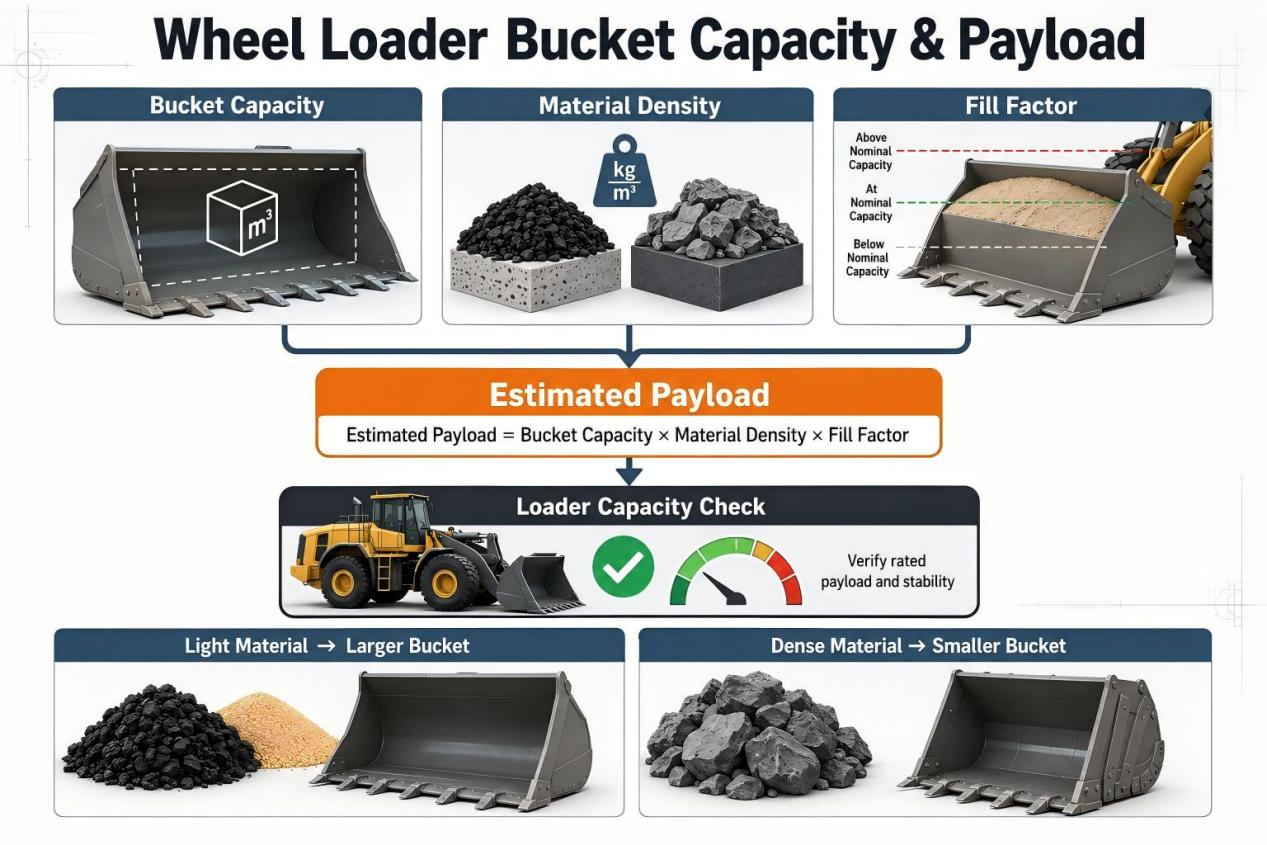

Rated volume alone does not show the real load per pass. A useful estimate is:
Estimated payload = bucket capacity × fill factor × material density
The result must remain within the loader manufacturer's operating and stability limits. An oversized bucket can reduce traction, increase spillage, slow lifting and accelerate tire or drivetrain wear. Consistent, safe payloads usually produce better results than maximum volume.
Before ordering a wheel loader bucket, provide the loader brand and model, rated load, linkage or quick-coupler type and mounting dimensions. For pin-on buckets, confirm pin diameter, pin-center distance and mounting-ear spacing.
Two buckets with the same width and capacity are not necessarily interchangeable. Their mounting geometry, weight and load center may be different.
Bucket teeth improve penetration in compacted soil, gravel and rock. Tooth profiles should match the required balance between penetration and wear life.
A smooth cutting edge is better for stockpile loading, cleanup and grading. Reversible bolt-on edges can simplify replacement, while weld-on edges suit certain bucket designs and operating requirements.
Side cutters, bottom wear plates, heel plates and replaceable cutting edges protect the structural bucket. Severe applications justify more protection, but unnecessary reinforcement adds dead weight and reduces payload.
The most economical design places replaceable wear parts where impact and abrasion are greatest. Buyers should discuss the material and expected wear pattern with the loader bucket manufacturer rather than choosing protection only by appearance.
Frequent mistakes include choosing the largest capacity available, using a general purpose bucket for continuous rock loading, ignoring attachment weight and ordering by width without confirming the mounting system. Evaluate purchase price together with service life, cycle time, replacement parts and downtime.

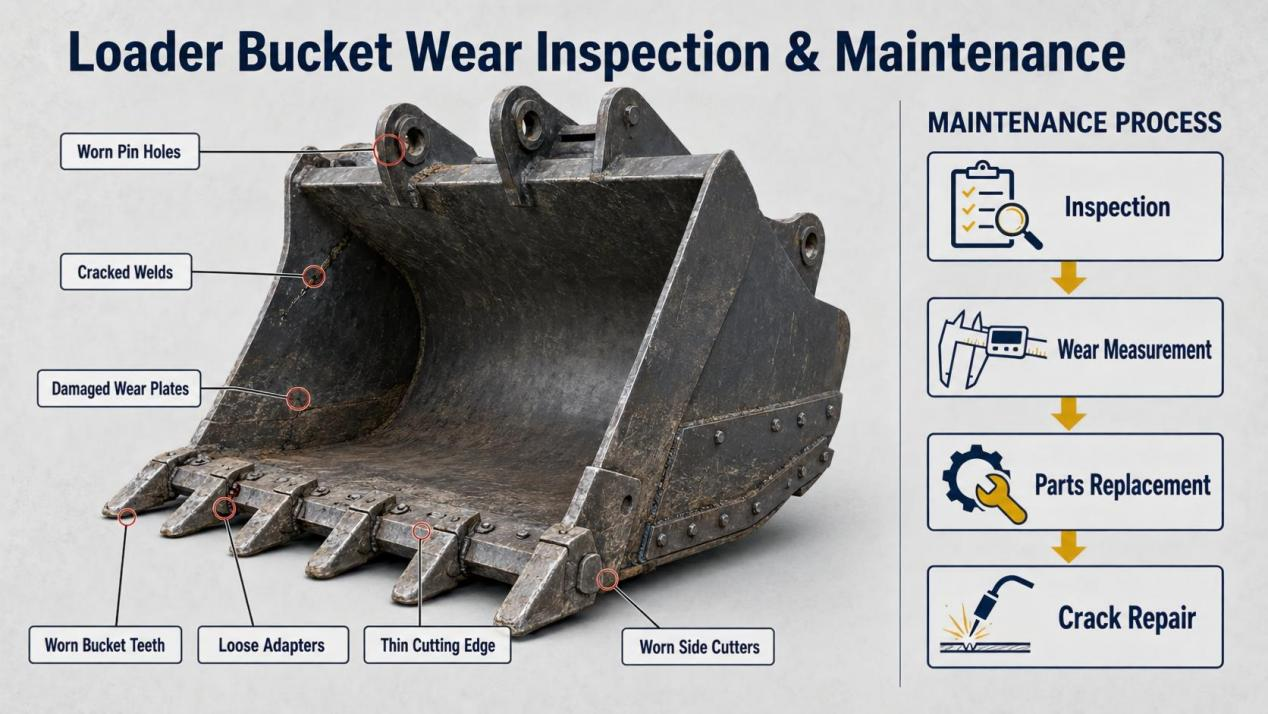

Inspect teeth, adapters, retainers, cutting edges, side cutters and wear plates regularly. Replace missing teeth immediately so the adapters do not contact the material directly. Repair small cracks before they spread, and replace wear plates before the main structure is exposed.
Avoid using the side of the bucket as an impact tool or repeatedly carrying overloaded material. Correct operation and timely replacement of wear parts protect both the bucket and the loader.
Send the supplier the loader brand and model, bucket type, width and capacity, working material, coupler information and mounting dimensions. Also state the preferred teeth, cutting edge and wear package, and include photos or drawings when available. Complete information helps the manufacturer recommend a bucket that fits correctly and delivers the required performance.
There is no single loader bucket that performs best in every application. General purpose buckets offer versatility, rock buckets provide strength and penetration, high-abrasion buckets resist sliding wear, and light material buckets move more low-density material per cycle.
The best choice depends on material density, impact, abrasion, loader capacity, mounting compatibility and total operating cost. By matching the bucket to the application—not simply selecting the largest or heaviest option—operators can increase productivity, protect their equipment and reduce long-term wear costs.
YASSIAN manufactures a wide range of loader buckets to meet your various needs, please feel free to leave a message, and we will respond as soon as possible.
