How to Measure Bucket Teeth: Pocket Dimensions, Pin Holes and Reference Points

A replacement bucket tooth may look right and still fail to fit the existing adapter. For distributors, importers and maintenance teams, useful measurements must describe both the connection and where each reading was taken.

To measure bucket teeth, identify the tooth system, establish clear reference points, then record pocket dimensions and pin-hole size and position. Compare these measurements with the correct drawing or confirmed sample, alongside adapter and retention details.

This guide explains how to prepare bucket teeth measurements that help suppliers assess replacement options.

Identify the Tooth System First

Start by photographing markings on the tooth, adapter, pin and retainer. Record every readable character, including suffixes, and note whether the sample is new, worn or repaired.

Identify the mounting arrangement before measuring. A replaceable tip fitted over an adapter requires different checks from a bolt-on one-piece tooth. For the latter, bolt spacing, hole shape, mounting opening and bucket lip thickness become central.

This article focuses on adapter-mounted teeth. Machine model and bucket details provide context, but the actual tooth connection still needs confirmation.

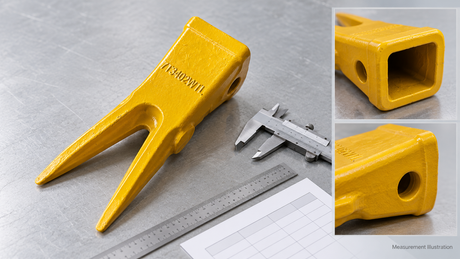

Prepare the Part and Measuring Tools

Clean dirt and loose deposits from the pocket and pin-hole area without grinding or altering the mating surfaces. Photograph visible wear, deformation and repairs. If removal is necessary, follow the equipment and tooth-system instructions with the bucket safely supported.

Use calipers for accessible internal and external dimensions, a suitable depth tool for defined internal measurements, and a steel rule for approximate overall size. Record units consistently.

Keep tools aligned with the measurement direction. A precise-looking display does not compensate for tilted jaws, worn contact surfaces or an unclear endpoint.

Establish Reference Points Before Comparing Dimensions

Define the front as the working-tip direction and the rear as the pocket-opening direction. Label photographs by viewing direction, such as "rear view looking toward the tip."

For each measurement, specify:

• The starting reference surface or plane.

• The endpoint or feature being measured.

• The measurement direction and section location.

Use drawing-defined references where available. Otherwise, agree on a practical reference with the supplier and mark it on a photograph. An irregular cast edge should not automatically be treated as a precision datum.

Dimension letters such as A, B and C only make sense alongside their associated drawing.

Measure Bucket Tooth Pocket Dimensions

Pocket Width and Height

Measure pocket width between the internal side surfaces at a specified section. Measure pocket height between the internal upper and lower surfaces, stating whether it is taken at the same section.

Avoid confusing external rear width with internal opening width. Also distinguish measurements across an entrance chamfer from measurements farther inside the pocket.

Where the cavity tapers, readings at different depths may differ. Record the section location rather than reporting a single unexplained "opening size." Do not assume the pocket is rectangular or symmetrical.

Pocket Depth and Internal Profile

When measuring depth, identify the starting plane, tool direction and internal contact point. The deepest point reached by a probe does not necessarily define the effective seating length or load-bearing contact.

Photograph visible steps, curves and asymmetric features. If internal geometry cannot be measured reliably with available tools, request a drawing comparison or sample evaluation. Width, height and depth alone cannot fully describe a complex connection.

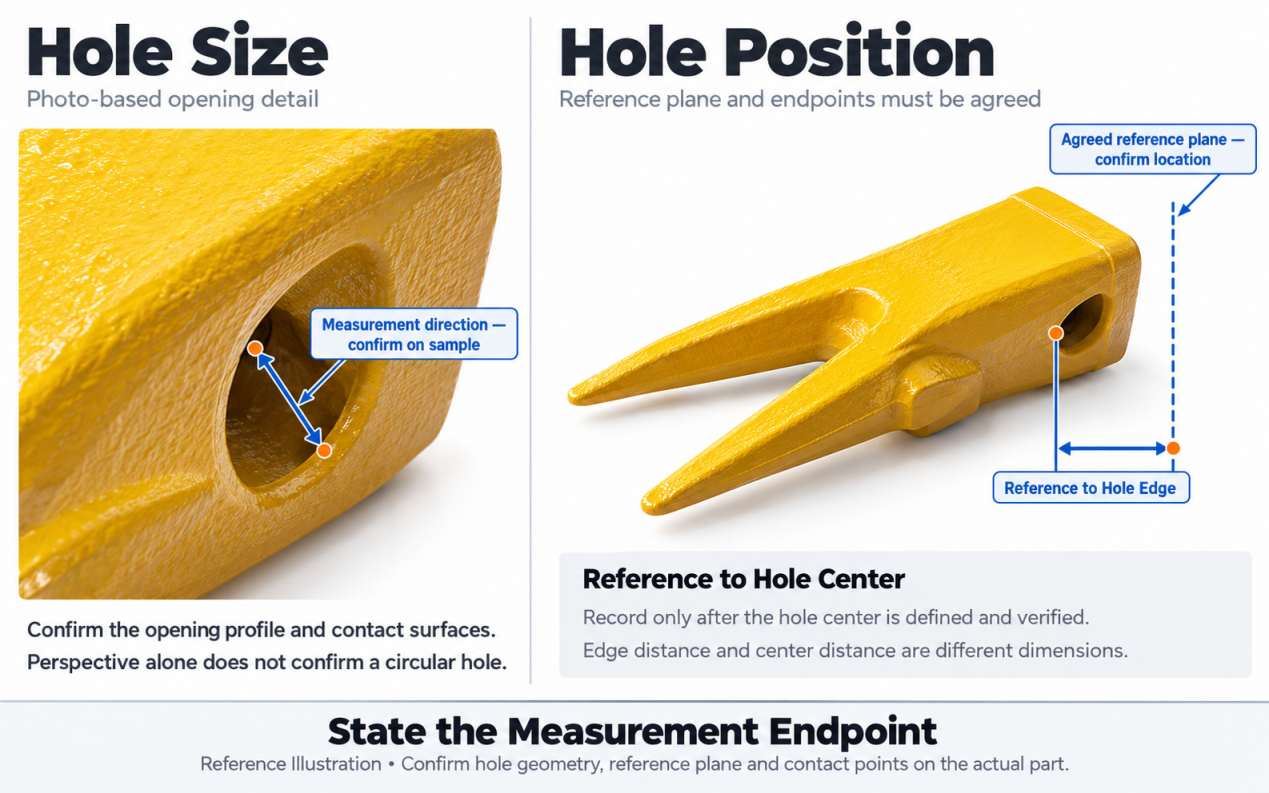

Measure Pin-Hole Size and Position Separately

First identify whether the opening is round, elongated or another shape. A retainer recess should not automatically be recorded as a simple through-hole.

For an accessible round hole, measure the effective opening without including its entrance chamfer. For an elongated opening, record the long and short dimensions and their orientation. Mark worn or irregular holes clearly.

Next, record pin-hole position from the agreed reference. State whether the measurement ends at the near hole edge or the hole center. Those readings are different.

Only calculate a center position from an edge measurement when the hole geometry and measurement direction support that calculation. Do not apply a round-hole assumption to a worn or elongated opening.

Photograph the actual pin and retainer, including markings. Similar pin dimensions do not establish that locking components are interchangeable.

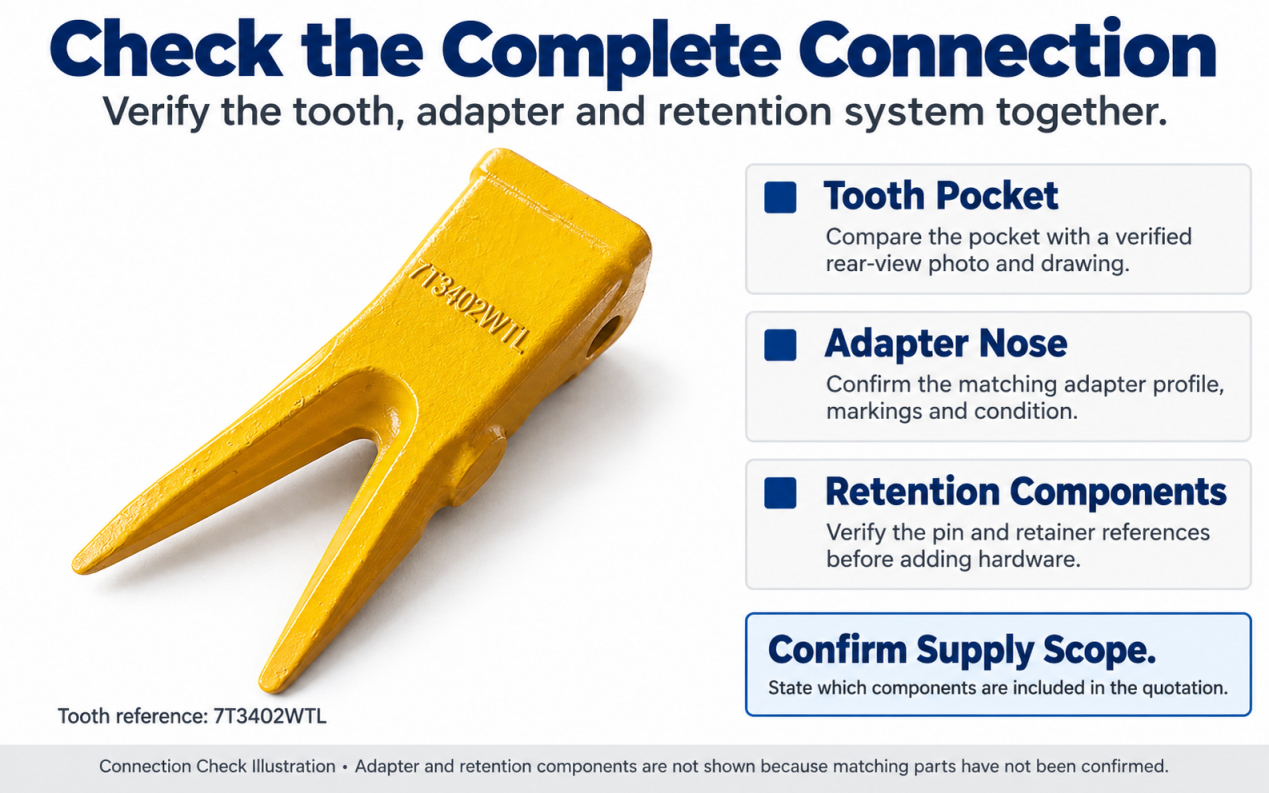

Use Overall Dimensions and Adapter Details as Supporting Checks

Overall length, rear external dimensions and tooth profile help distinguish candidates. Define the endpoints and whether length follows a chosen axis or another stated direction.

A worn tip cannot establish the original new-part length. Keep observed measurements separate from catalog dimensions.

Document the adapter nose, markings, locking features and visible damage. Do not assume tooth-pocket dimensions should equal adapter external dimensions: the intended fit depends on the specific system.

If dimensions conflict, first check reference points, tool position and sample condition. Acceptance tolerances must come from the applicable specification.

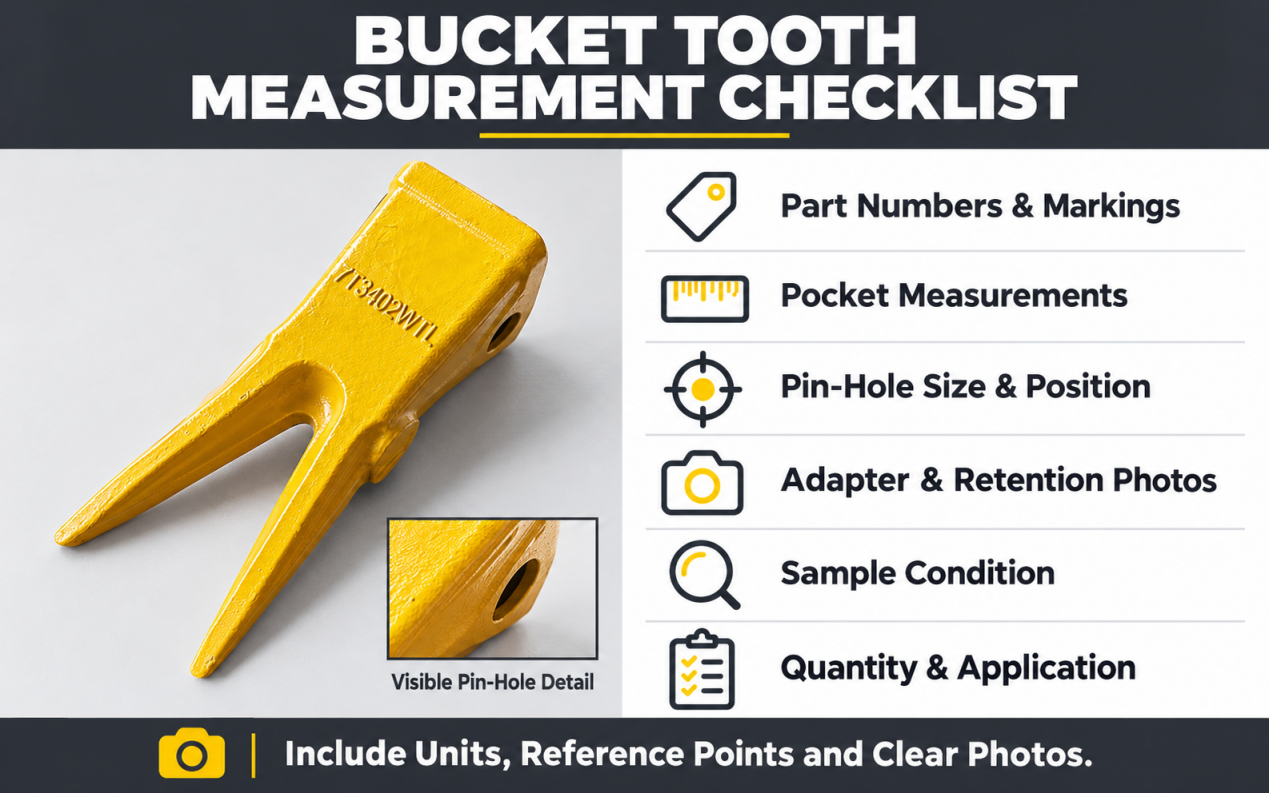

Prepare a Measurement Record for Your Supplier

A clear record helps reduce repeated questions during quotation.

If a feature cannot be measured reliably, mark it as unconfirmed. A clearly identified gap is more useful than an estimated dimension presented as exact.
