Ordering a 1U3452WTL bucket tooth starts with the part reference, but the purchase should also confirm the bucket connection, retaining hardware and operating requirements. For distributors, contractors and maintenance teams, these checks help define what the supplier must quote.

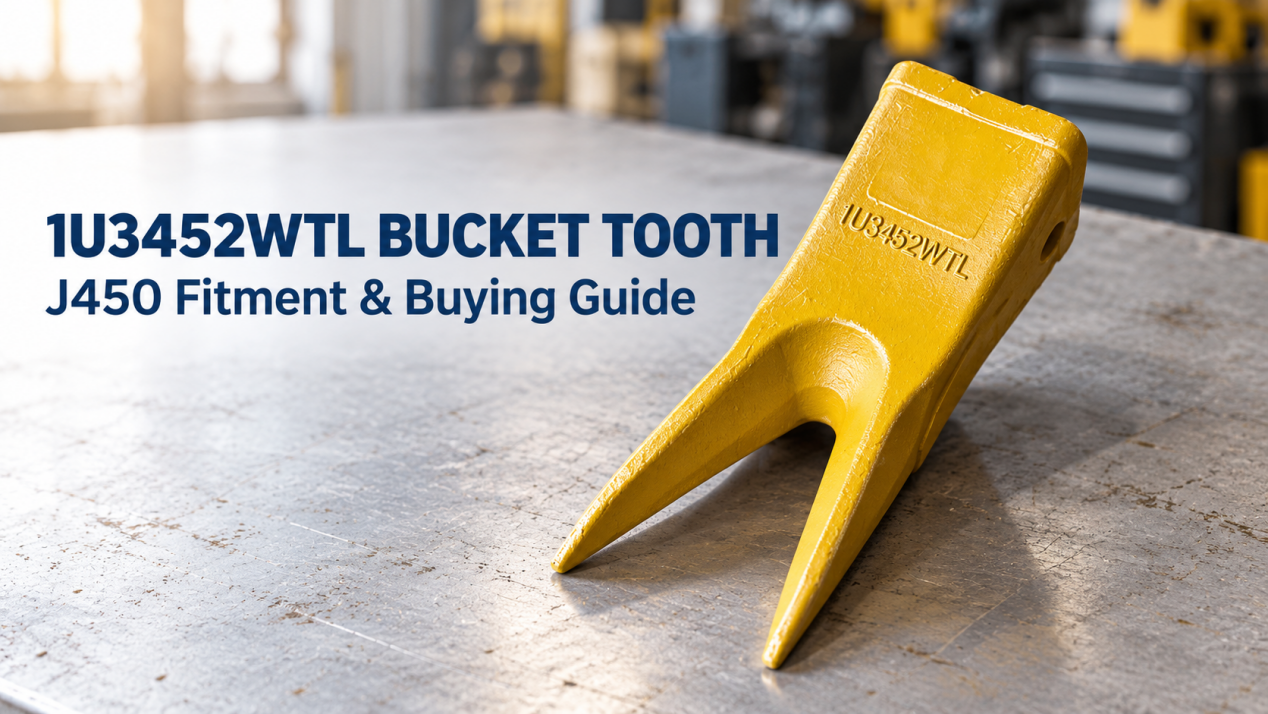

The 1U3452WTL reference is used in aftermarket catalogs for a Caterpillar-style J450 twin tiger bucket tooth. This guide explains that identification and provides a practical purchasing workflow. Measurement, inspection and selection recommendations below are general guidance; final compatibility depends on the confirmed replacement specification.

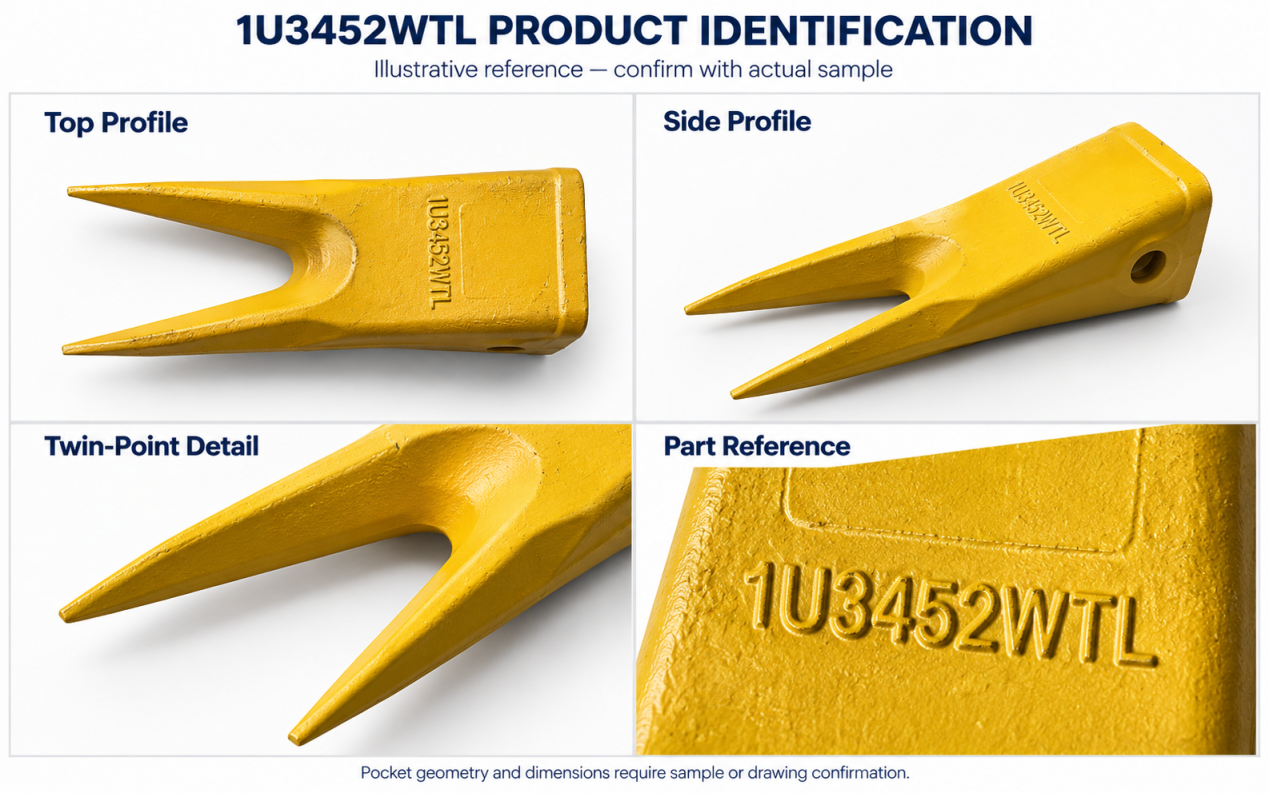

H&L includes 1U3452WTL among references for its Caterpillar-style J450 tooth range. The full suffix matters when communicating the required tooth profile. Keep the complete reference on inquiries, drawings, sample labels and purchase orders rather than shortening it to 1U3452.
Record markings exactly as they appear. If part of the number is unreadable, send a close-up photograph and identify which characters are uncertain. Ask the supplier to distinguish the requested reference from its own stock code.
A cross-reference offered by a seller should be checked against the actual product. A catalog association does not establish that every item sold under a similar number has identical geometry, material or hardware.
A machine model helps identify the equipment, but it should be considered alongside the bucket and adapter information. Buckets may have been replaced, repaired or fitted with a different tooth system during the machine's service life.
Start with photographs of the complete bucket and the existing tooth arrangement. Then record any bucket identification plate, adapter marking and old tooth reference. If available, provide the relevant parts-book illustration and item number.
The replaceable tooth fits onto an adapter at the bucket's working edge. Confirm the actual adapter connection and intended tooth position rather than choosing from machine size alone. Do not assume that a twin tiger tooth must occupy a particular position across every bucket configuration.

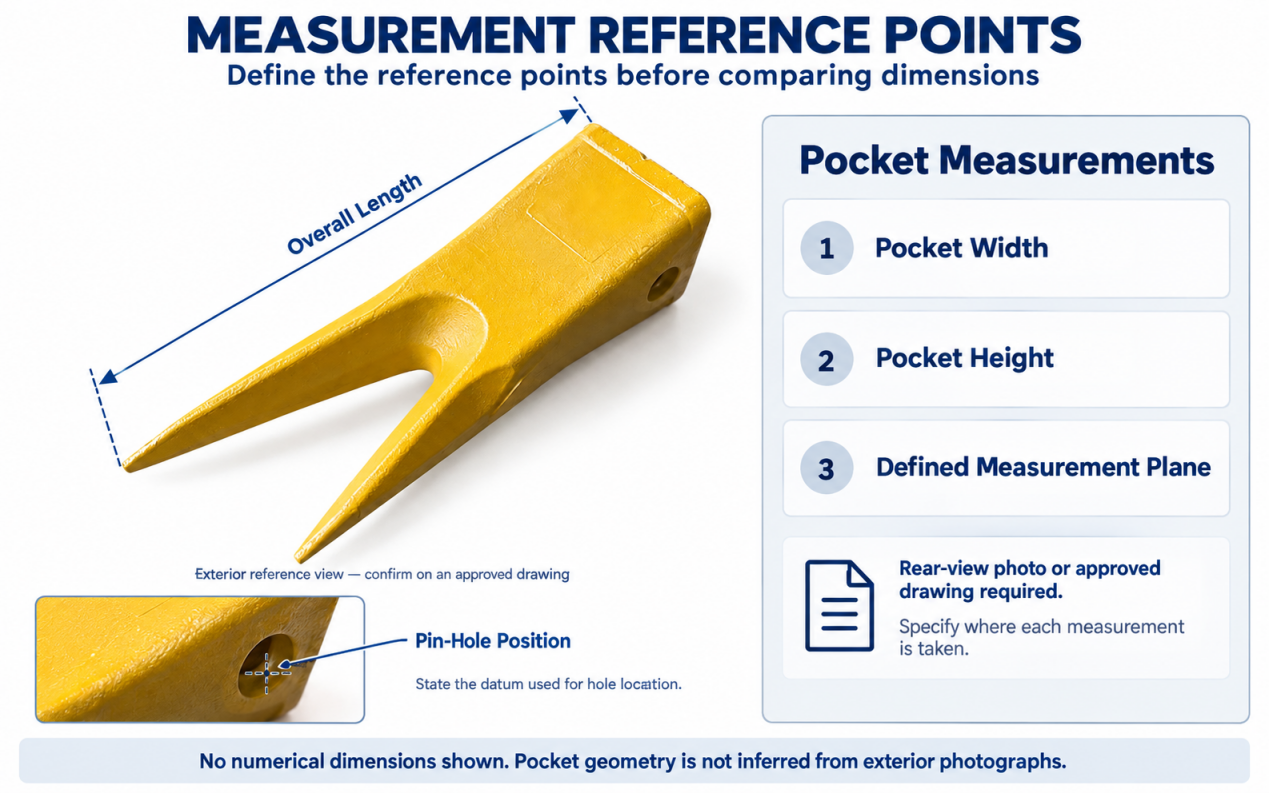

External length and width help describe a product, but they do not fully establish the mounting fit. Buyers should request a drawing showing the tooth pocket, seating surfaces and pin-hole location.
For a useful comparison, agree on:
Overall length and the surfaces used as endpoints.
Pocket width and height at a stated measurement plane.
Pin-hole diameter and position relative to an identified datum.
Seating geometry and depth where supported by a drawing.
Photograph the measuring tool in position and state the units. A width taken at the mouth of a tapered pocket cannot automatically be compared with a width measured farther inside.
Treat measurements from worn components as identification evidence. They should not become manufacturing acceptance limits. Use an approved drawing or agreed new sample to establish the dimensions and tolerances for supply.

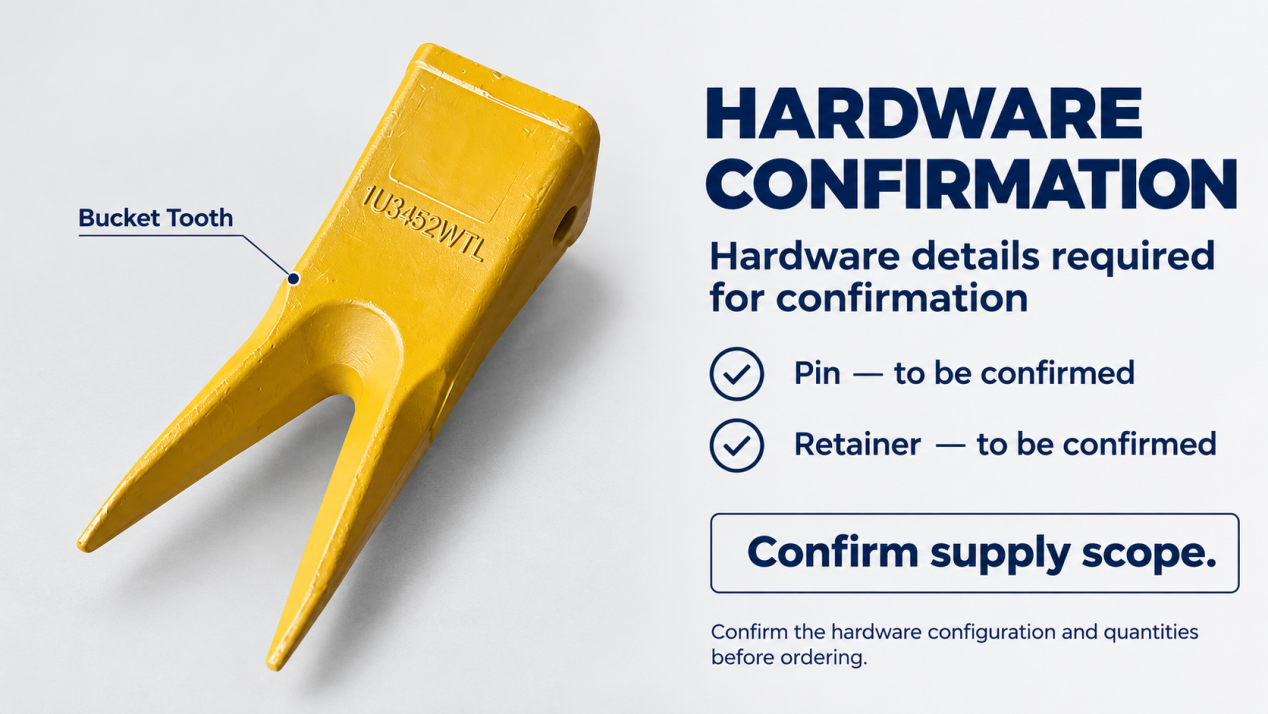

A tooth quotation should identify the retention arrangement as clearly as the tooth itself. Confirm the pin and retainer references together, supported by photographs or the supplier's drawing.
State whether the order requires teeth only, teeth with matched hardware, or additional adapters. Do not assume that a product photograph showing hardware means those items are included.
For repeat orders, retain the approved hardware details alongside the tooth specification. If the supplier proposes a different pin or retainer, request confirmation of the complete assembly before accepting the substitution. This is particularly useful when consolidating stock from several sources.
Twin tiger describes a tooth profile, not a complete application specification. Selection should consider the material being excavated, the required penetration, impact exposure and the wear pattern already observed.
Describe the actual work: compacted soil excavation, mixed ground, rock handling or another specific task. Explain whether the main concern is difficult entry, rapid wear, breakage or an unsuitable existing tooth arrangement.
Ask the supplier to explain the proposed profile in relation to those conditions. Avoid treating a sharp-looking tooth as evidence of longer service life or greater machine capability. Where operating conditions vary, evaluate an agreed sample in representative work before committing to a larger stocking program.
A replacement review should include the adapter and retaining components. Caterpillar's general J Series maintenance guidance calls for adapter inspection when tips are removed and regular checks of tips and adapters.
Record observed wear, damage and retention problems with clear photographs. Note whether the problem affects one position or several positions across the bucket. This information helps distinguish a tooth-ordering question from a broader assembly issue.
Follow the applicable equipment and tooth-system maintenance instructions. Do not use a new tooth to conceal a damaged connection, and do not force an unidentified assembly together. Replacement intervals and acceptable wear limits should come from the relevant instructions or a qualified assessment.
Manufacturing claims should describe the proposed supply. Ask which drawing revision or sample controls the order, which inspections are agreed and what records will be available.
If material grade, hardness or heat treatment matters to your specification, request supporting documentation and a defined acceptance method. A generic description such as "heat-treated steel" does not establish a particular grade or hardness range.
For distributors, sample approval can cover identification, mounting fit, agreed dimensions, finish and packaging. Record any accepted variation before production. Keep inspection requirements proportionate to the order and distinguish routine checks from additional tests that require separate agreement.
Send the following information with your inquiry:
Part number and required quantity
Bucket and adapter details with photographs
Pin and retainer requirements
Drawings, samples, or critical dimensions
Delivery destination and inspection requirements
Ask the quotation to identify any unresolved compatibility points. For a repeat purchase, reference the previously approved drawing or sample so both parties understand what must remain consistent.
