An excavator drive sprocket is a key component of the crawler undercarriage. Connected to the final drive, it engages with the track chain to transmit power and drive the excavator.
A worn or mismatched sprocket can cause track jumping, abnormal noise, uneven travel and accelerated undercarriage wear. When selecting a replacement, buyers should verify the machine model, serial number, part number, track chain specification and mounting dimensions.
This guide explains how an excavator sprocket works, its main types, common wear signs, and how to choose the right replacement.
An excavator drive sprocket is a toothed wheel typically installed at the rear of the track frame. It is mounted to the final drive and engages with the track chain bushings.
The sprocket works with other excavator undercarriage parts, including the track chain, front idler, track rollers, carrier rollers, track shoes and track guides.
The sprocket and final drive are different components. The final drive produces rotational torque through its hydraulic motor and reduction gears. The drive sprocket receives this torque and transfers it to the track chain.
The power transmission process is:
Hydraulic Motor → Final Drive → Drive Sprocket → Track Chain → Machine Travel
When the operator activates the travel control, hydraulic power drives the final drive. The final drive rotates the excavator drive sprocket, whose teeth engage with the track chain bushings. This drives the track chain around the undercarriage and moves the machine.
Accurate engagement is essential for smooth track movement. The tooth pitch, width and profile must match the track chain. Incorrect engagement can cause vibration, impact loads, clicking noises and uneven wear.
Track tension also affects sprocket performance. Excessive tension increases the load on the sprocket, chain, rollers and idler, while insufficient tension can increase the risk of poor engagement or derailment.

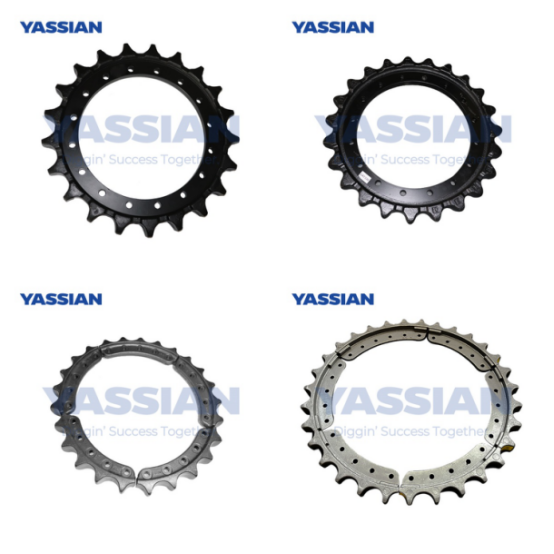

Main Types of Excavator Drive Sprockets
A one-piece sprocket has a complete circular structure and is normally bolted to the final drive hub. It is widely used on mini, small and medium crawler excavators.
Its advantages include a simple design, secure mounting, consistent tooth spacing and easy inspection. When the teeth reach the specified wear limit, the entire sprocket is normally replaced.
A segmented sprocket consists of several removable sections installed around the drive hub. This design is commonly used on larger crawler machines and some heavy-duty undercarriage systems.
Split sprockets are easier to maintain. However, buyers must verify whether the equipment originally used a solid (one-piece) sprocket or a split sprocket, as the two designs are generally not directly interchangeable.
Excavator drive sprockets can be manufactured using casting, forging, and various machining processes. However, there is no direct correlation between the manufacturing method and the final service life.
Actual performance also depends on steel composition, heat treatment, tooth profile accuracy, internal material consistency and dimensional inspection. A reliable product must balance surface wear resistance with sufficient toughness for impact loading.
Most sprocket wear appears around the tooth contact surfaces. Common signs include:
As wear develops, the teeth may become thin, sharp or hooked, forming a shark-fin profile. This indicates that the sprocket and track chain are no longer be engaging correctly.
If one side of the teeth wears faster, the undercarriage may have an alignment problem. Possible causes include worn track guides, incorrect idler alignment or uneven chain movement.
Cracks, chipping and broken teeth may result from heavy impact, trapped rocks, unsuitable material properties or severe working conditions. The sprocket should be inspected immediately if structural damage is found.
Other warning signs include:
Clicking or popping noises
Jerky machine travel
Track jumping under load
Excessive undercarriage vibration
Chain climbing over the sprocket teeth
These symptoms may also be related to the track chain or alignment, so the complete undercarriage should be inspected.
Common causes include:
Excessive track tension
Worn pins and bushings
Incorrect chain pitch
Undercarriage misalignment
Long-distance or high-speed travel
Sand or rocks entering the engagement area
Loose mounting bolts
Incorrect installation
New track chains operating with severely worn sprockets
Excavators working in mines, quarries and abrasive soil should be inspected more frequently. Regular cleaning and correct track tension can help reduce unnecessary wear.
Before ordering, provide:
Machine brand and model
Complete serial number
Undercarriage version
OEM reference number
Track chain number
The machine model alone may not be sufficient for identification; it is best to provide the year of manufacture or the serial number range to ensure a more precise match with the chassis configuration.

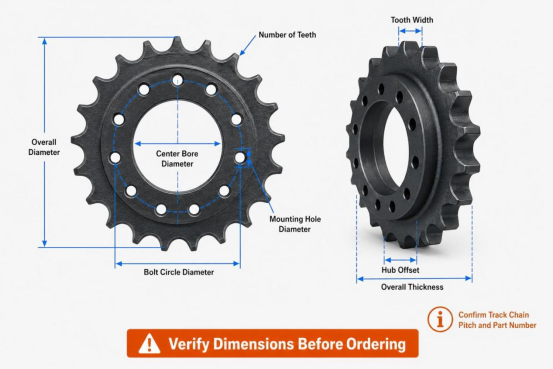

Important measurements include:
Overall diameter
Number of teeth
Tooth width
Chain pitch
Center bore diameter
Mounting-hole quantity
Bolt-hole diameterBolt-circle diameter
Overall thickness
Hub offset
Never confirm compatibility using only the outside diameter or tooth count. Similar-looking sprockets may have different mounting patterns, offsets or tooth profiles.
The sprocket must match the track chain pitch, bushing diameter, chain width and tooth engagement profile.
Pairing a new sprocket with a severely worn chain can cause concentrated contact and premature wear. Likewise, a new track chain may not engage properly with a badly worn sprocket. Both components should be inspected before replacement.
A quality excavator drive sprocket should have:
Consistent tooth shape and spacing
Accurate mounting-hole positions
Controlled tooth hardness
Adequate core toughness
Clean mounting surfaces
No visible cracks or serious defects
Reliable dimensional inspection
Higher hardness does not always mean better performance. Excessive hardness may make the teeth brittle under impact. Material selection and heat treatment should provide the correct balance between hardness and toughness.
There is no universal replacement interval for every excavator. Service life depends on machine design, working conditions, travel habits, track tension and maintenance.
Replacement should be considered when the teeth become severely sharp or hooked, the chain no longer engages smoothly, cracks appear, the track jumps during travel or the mounting areas are damaged.
Inspection results should be compared with the machine manufacturer's wear limits rather than a universal operating-hour recommendation.
No. The final drive generates rotational torque, while the sprocket transfers that torque to the track chain.
There is no fixed service life. Wear depends on working conditions, track tension, chain condition, travel habits and maintenance.
Yes, but the track chain should be inspected first. A severely worn chain can accelerate wear on a new sprocket.
No. Tooth count alone is not sufficient. Buyers should also verify the machine model, serial number, chain specification, mounting dimensions and tooth profile.
No. Sprocket performance depends on the balance between surface hardness and core toughness. Excessive hardness can increase the risk of cracking under impact.
The excavator drive sprocket directly affects power transmission and undercarriage performance. Correct selection requires verification of the machine model, serial number, part number, track chain specification, tooth profile and mounting dimensions.
YASSIAN supplies replacement excavator drive sprockets for a wide range of crawler excavators and working conditions. As a construction machinery parts manufacturer, we support product identification, dimensional verification, OEM reference cross-checking and bulk supply for overseas distributors, importers, repair companies and equipment owners.
Need help identifying the right sprocket for your excavator? Contact YASSIAN with your machine model, part number or sprocket dimensions for product verification and a suitable replacement recommendation.
