In demanding industries such as construction, mining, quarrying, and earthmoving, equipment downtime can quickly turn into lost productivity and higher operating costs. As one of the most frequently worn components in an excavator's Ground Engaging Tools (GET) system, bucket adapters play a critical role in maintaining digging efficiency and protecting the bucket structure.
In recent years, the Bolt-on Bucket Adapter has become an increasingly popular alternative to traditional welded systems. Its ability to reduce maintenance time, simplify replacement procedures, and extend bucket life makes it an attractive solution for contractors and fleet managers looking to improve operational efficiency.
This guide explains what a Bolt-on Bucket Adapter is, how it works, its key benefits, common applications, and how to choose the right option for your equipment in 2026.

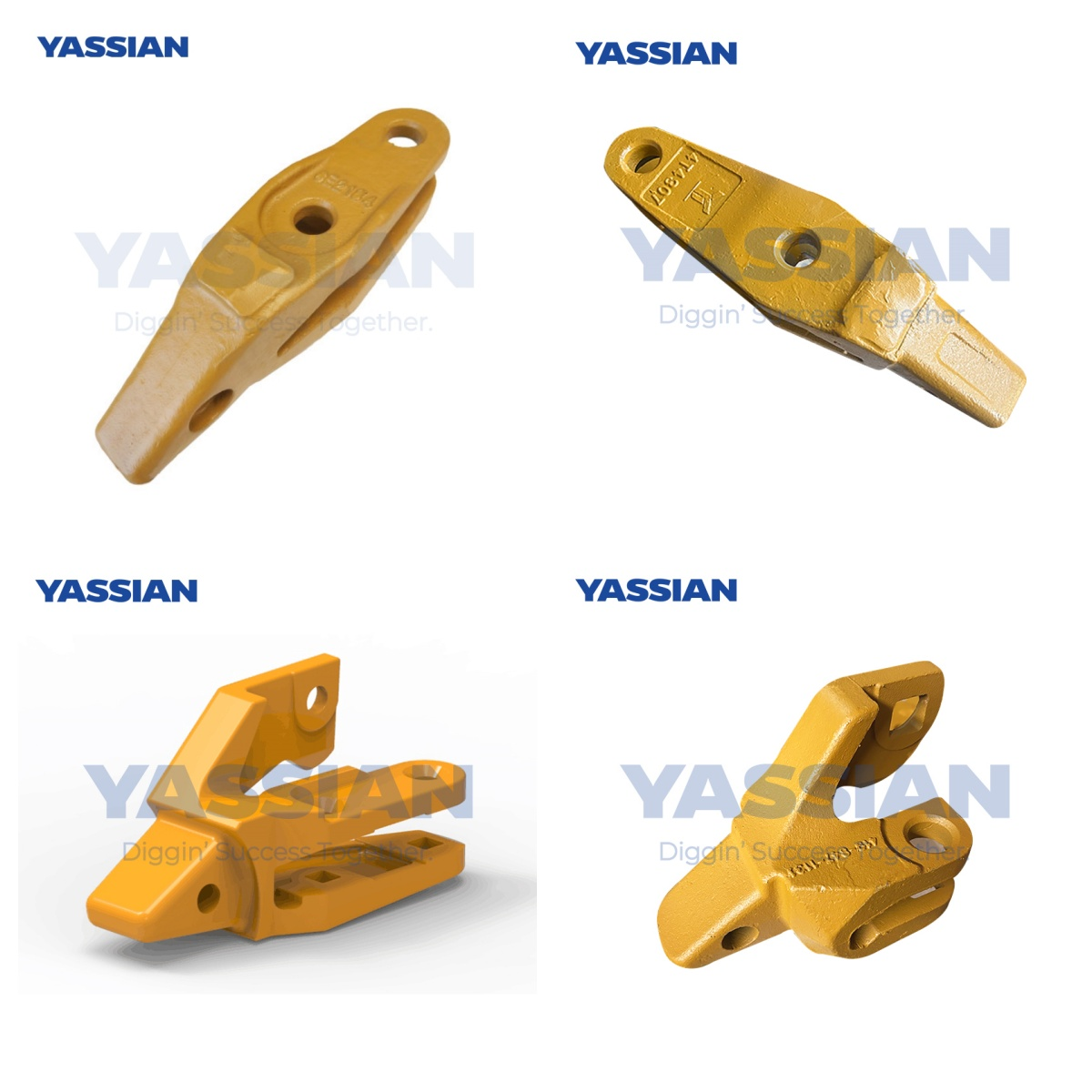

A Bolt-on Bucket Adapter is a replaceable component mounted to the lip of an excavator, loader, or backhoe bucket using high-strength bolts rather than welding.
As part of the bucket tooth system, the adapter serves as the connection point between the bucket and the bucket tooth. It transfers digging forces from the machine to the tooth while protecting the bucket edge from excessive wear.
Unlike weld-on adapters, which require cutting and rewelding during replacement, bolt-on designs can be removed and installed quickly with standard tools, significantly reducing maintenance complexity.

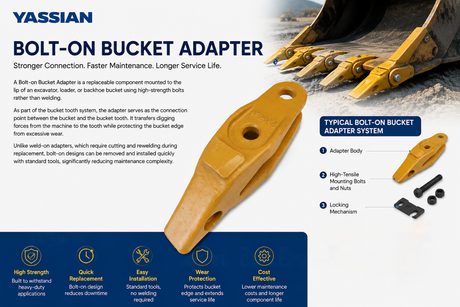

A typical Bolt-on Bucket Adapter system consists of:
Adapter body
High-tensile mounting bolts and nuts
Locking mechanism
Replaceable bucket teeth
Optional wear caps for added protection
The adapter is securely fastened to the bucket lip through pre-drilled mounting holes. Once installed, the bucket tooth locks onto the adapter using a pin or retention system.
During excavation, digging forces are distributed evenly from the bucket through the adapter to the tooth tip. When the tooth or adapter reaches its wear limit, operators can replace the worn component without cutting or welding.
This modular design offers several advantages:
Faster maintenance procedures
Reduced risk of bucket damage
Lower labor costs
Greater flexibility for different applications
Choosing between bolt-on and weld-on systems depends on your operating conditions, maintenance capabilities, and long-term cost considerations.
Feature | Bolt-on Bucket Adapter | Weld-on Bucket Adapter |
Installation method | Bolted connection | Permanent welding |
Replacement time | Fast | Time-consuming |
Specialized equipment required | No | Yes |
Downtime | Minimal | Higher |
Initial cost | Moderate | Lower |
Lifecycle cost | Lower | Higher |
Bucket protection | Better | Moderate |
For operations where equipment availability is critical, bolt-on systems often deliver a better return on investment despite slightly higher upfront costs.
Time is money on any job site. Since bolt-on adapters eliminate cutting and welding, replacement can often be completed directly in the field.
This means:
Less waiting for maintenance crews
Faster equipment turnaround
Higher machine utilization rates
Traditional welding repairs require skilled labor, specialized equipment, and additional safety measures.
With a Bolt-on Bucket Adapter, operators can reduce:
Labor expenses
Welding consumable costs
Transportation to repair facilities
Over time, these savings can significantly reduce total ownership costs.
Frequent welding can weaken the bucket lip and cause structural fatigue.
Because bolt-on systems do not require repeated welding, they help preserve the integrity of the bucket and extend its service life.
Different applications require different tooth profiles and wear solutions.
Bolt-on adapters allow operators to quickly switch components based on changing conditions, whether working in:
Abrasive rock
Dense clay
Sand and gravel
Demolition environments
Standardized bolt-on systems can reduce the number of spare parts needed across a mixed fleet, making inventory planning easier and more cost-effective.
Bolt-on Bucket Adapters are widely used across industries where wear resistance and maintenance efficiency are essential.
Mining environments expose bucket teeth to extreme abrasion and impact. Fast replacement helps minimize costly production interruptions.
In quarries, equipment often works continuously under harsh conditions. Bolt-on systems simplify routine maintenance and improve uptime.
Contractors benefit from the flexibility to adapt equipment quickly to different tasks, from trenching to bulk excavation.
Frequent exposure to concrete, metal, and debris accelerates wear. Easy-to-replace adapters help maintain productivity.
Compact and medium-sized machines can also benefit from lower maintenance costs and easier field repairs.
Selecting the correct adapter is essential for performance and safety.
Consider the following factors:
Verify that the adapter matches your equipment brand and model, including:
Caterpillar
Komatsu
Volvo
Hitachi
Hyundai
Doosan
Always confirm bucket dimensions and mounting hole patterns.
Brand | Typical Machine Models | Tooth System Series | Common Bolt-on Adapter Models* | Bolt Size |
Caterpillar | CAT 307 / 308 / 311 | J-Series | J200, J225 | M16–M20 |
Caterpillar | CAT 312 / 320 / 323 | J-Series | J250, J300 | M20–M24 |
Caterpillar | CAT 325 / 330 / 336 | J-Series | J350, J400 | M24–M30 |
Caterpillar | CAT 345 / 349 / 374 | J-Series | J450, J550 | M30–M36 |
Komatsu | PC60 / PC78 | K-Series | K20, K25 | M16–M20 |
Komatsu | PC120 / PC200 | K-Series | K30, K40 | M20–M24 |
Komatsu | PC300 / PC360 | K-Series | K50, K60 | M24–M30 |
Volvo | EC140 / EC210 | V-Series | V29, V33 | M20–M24 |
Volvo | EC290 / EC360 | V-Series | V39, V43 | M24–M30 |
Hitachi | ZX120 / ZX200 | H-Series Compatible | H25, H30 | M20–M24 |
Hitachi | ZX330 / ZX350 | H-Series Compatible | H40, H50 | M24–M30 |
Hyundai | R140 / R210 | Hyundai Style | HY25, HY30 | M20–M24 |
Hyundai | R305 / R380 | Hyundai Style | HY40, HY50 | M24–M30 |
Doosan / DEVELON | DX140 / DX225 | Doosan Style | DS25, DS30 | M20–M24 |
Doosan / DEVELON | DX300 / DX420 | Doosan Style | DS40, DS50 | M24–M30 |
Evaluate the materials you handle regularly:
High-abrasion environments require enhanced wear resistance.
High-impact applications require greater toughness.
Look for adapters manufactured from high-strength alloy steel with advanced heat treatment processes.
Quality materials provide:
Better wear resistance
Higher impact strength
Longer service life
Ensure the adapter works with your existing bucket tooth system to avoid unnecessary replacement costs.
Consistent quality control
OEM and aftermarket options
Technical support
Fast delivery times
Product warranties
Inspect the bucket lip for damage before installation.
Use only recommended bolt grades and torque specifications.
Retighten bolts after the initial operating period.
Conduct routine wear inspections.
Replace worn teeth before they damage the adapter body.
Keep mounting surfaces clean and free from debris.
Preventive maintenance can significantly extend component life and reduce unexpected failures.
As equipment owners focus more on efficiency and sustainability, Bolt-on Bucket Adapters continue to evolve.
Advanced wear-resistant alloys
Modular GET systems
Smart wear monitoring technologies
Sustainable manufacturing processes
Improved compatibility across multiple equipment brands
These innovations are helping operators reduce lifecycle costs while improving machine performance.
Choosing the right Bolt-on Bucket Adapter is more than a maintenance decision—it's an investment in equipment uptime, productivity, and long-term operating costs.
At YASSIAN, we specialize in high-performance Ground Engaging Tools (GET) and wear parts engineered for demanding applications in construction, mining, quarrying, and earthmoving.Whether you need OEM-compatible replacements or customized solutions for specific jobsite conditions, our team can help you find the ideal Bolt-on Bucket Adapter for your equipment.
Need a quick recommendation? Send us your machine brand, model number, bucket dimensions, and working conditions, and the YASSIAN team will recommend the most suitable Bolt-on Bucket Adapter for your application.
