Ordering a 1U3202 bucket tooth starts with identifying the tooth system already installed on the bucket. A familiar part number is useful, but the adapter, retaining hardware and condition of the mounting surfaces also affect replacement selection. For distributors, contractors and maintenance teams, checking these details before ordering helps make quotations more precise. This guide explains the reference, the practical fitment checks and the information to prepare for an aftermarket replacement inquiry.

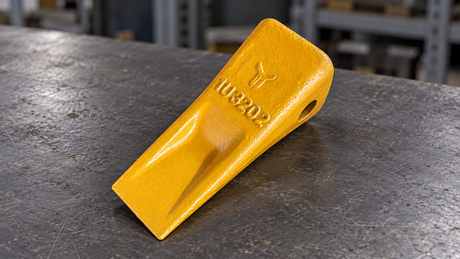

1U3202 and 1U-3202 are two formats of the same part-number reference. Caterpillar identifies the reference as a J200 Long tip, and Black Cat Wear Parts lists its corresponding replacement in the J200 Standard Long category.

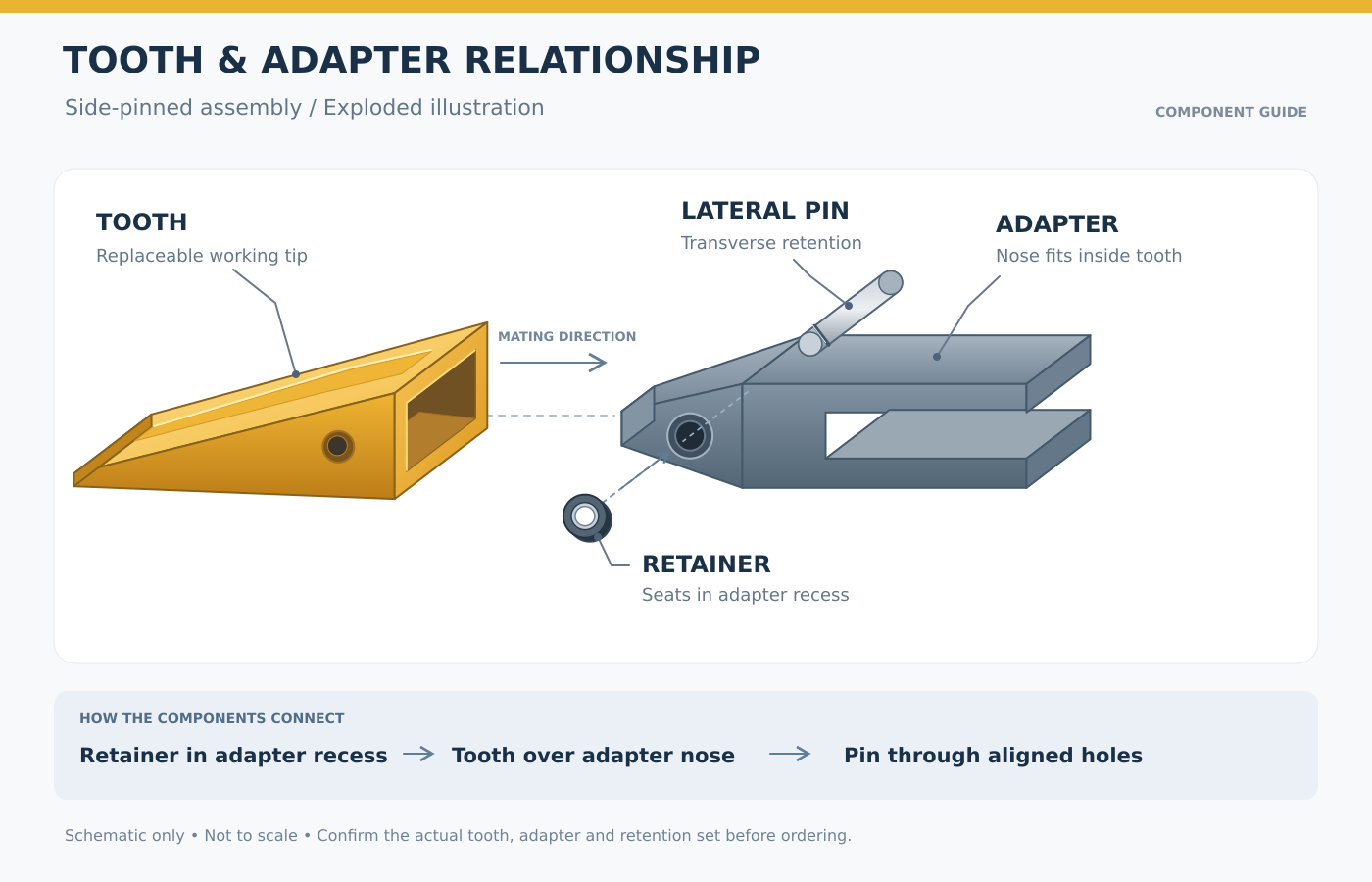

This is a replaceable tooth tip used with a matching adapter and retention system. The tip engages the material, while the adapter connects it to the bucket. Keep these components separate in purchase descriptions: a tooth, an adapter and a complete assembly are different supply items.
Also retain any suffix shown on a quotation. A supplier's extra letters may identify its own product variant; they should not be removed without checking what they mean.
A machine model helps locate relevant parts information, but it does not fully identify the bucket currently fitted. Buckets can be replaced, and their tooth systems can differ from the original configuration.
Start with the existing tooth reference and adapter identification. Then record the machine model, serial number, bucket identification and any known modification history. Ask the supplier to assess the proposed replacement against the installed assembly.
For example, a buyer may request teeth for a particular excavator while the workshop is using a replacement bucket from another manufacturer. In that case, the bucket’s actual tooth interface becomes essential to the inquiry.
Send clear views of the complete bucket, one installed tooth, the exposed adapter and the removed hardware. Photograph readable markings separately. These images support identification, although photographs alone cannot establish dimensional fit.

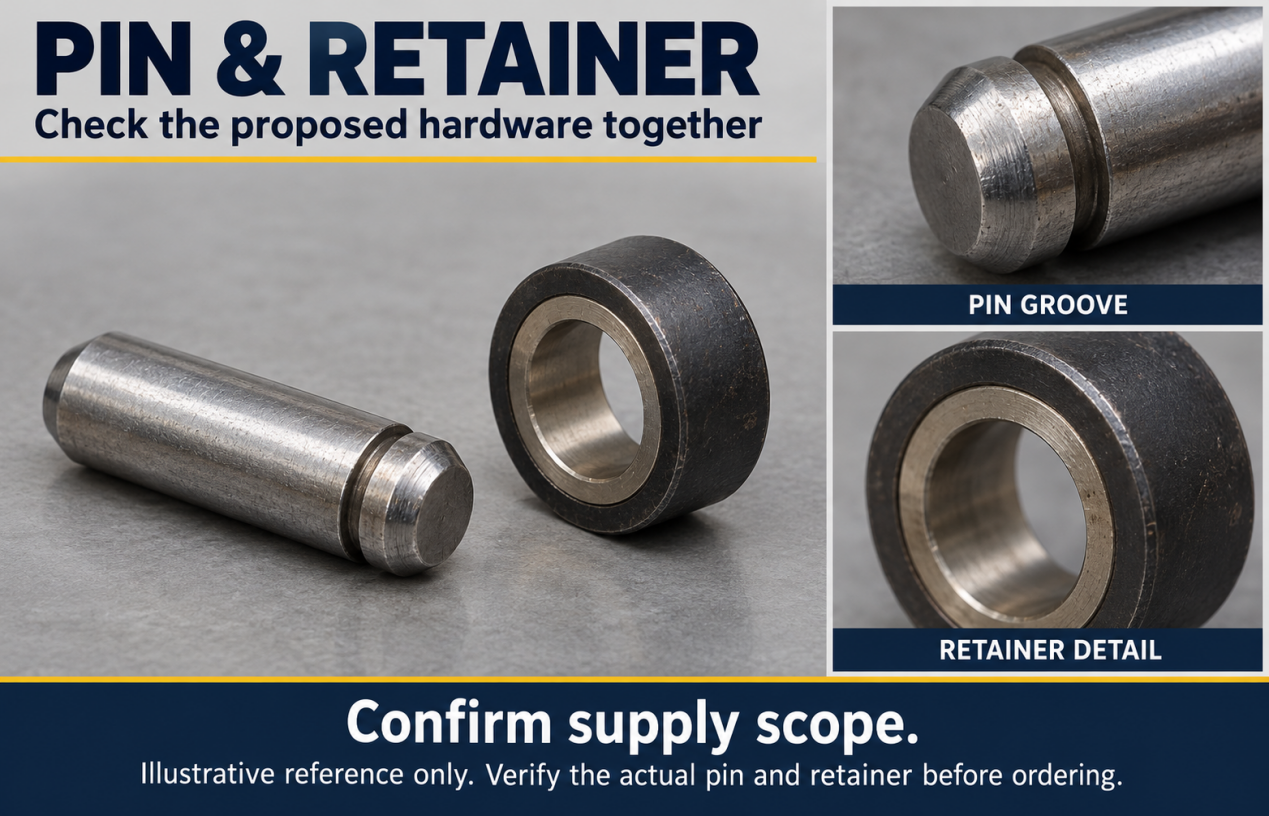

Caterpillar lists 8E-6208 and 8E-6209 as related pin and retainer references for 1U-3202. Black Cat's J200 catalog also pairs these references in its radius-groove retention listing. They provide a useful starting point for checking the proposed hardware.
However, a J200 label does not make every pin and retainer combination equivalent. The same Black Cat catalog separately lists 9W7112 with 4T0001 in its standard-groove arrangement. A different pin reference therefore calls for a configuration check, rather than an assumption that the existing retainer can stay unchanged.
Before ordering, request the proposed pin and retainer references together. Compare the groove, retainer construction and seating arrangement with the applicable drawing or confirmed sample. Ask whether hardware is included, supplied separately or quoted as a kit. A photo showing a pin beside a tooth is not a packing list.
When checking 1U3202 bucket tooth dimensions, separate external size from the geometry that connects the tooth to its adapter. Overall length helps identify a profile, but it does not prove that the pocket and retaining holes match.
Prepare measurements against an agreed drawing or a supplier-marked photograph:
Overall length and external profile for identification.
Pocket opening width and height at clearly identified locations.
Internal seating geometry and depth, where accessible.
Retaining-hole position relative to the specified reference surface.
Pin dimensions and groove geometry for the proposed retention system.
Use consistent units and show where each measurement starts and ends. External rear width is not the same measurement as internal pocket width. A worn tooth can also distort the comparison, so provide the adapter condition and, where available, an unworn reference sample. Request the supplier’s drawing and tolerances before approving a bulk order.
The OEM application description places the Long style in general excavation and loading with relatively limited impact and abrasion. This is a selection reference for the style, rather than a performance guarantee for every aftermarket product.
Describe the actual material and task: loose soil, compacted ground, mixed fill or abrasive material. Include recurring problems such as rapid tip wear, breakage or difficulty entering the ground. Ask whether the proposed profile suits that application. A familiar reference number should not replace a discussion of the operating conditions or the replacement manufacturer's specification.
The following checks are general maintenance guidance, not a model-specific installation procedure. Follow the applicable equipment and attachment instructions, with the machine secured before inspection.
Look for substantial loss of tooth material, visible cracking, uneven wear, loose or missing retention components and damage around the adapter. Inspect adjacent bucket edges and adapter welds as well. Replacing the tip alone may not resolve a problem caused by worn mounting surfaces.
There is no universal replacement interval established here for 1U3202. Use the relevant wear limits and inspection findings. Installation should follow the instructions for the confirmed retention arrangement; a forced fit is a reason to stop and recheck the components.
Before requesting a 1U3202 bucket tooth replacement quotation, provide:
Identification: existing tooth reference, all suffixes and readable marking photographs.
Equipment: machine model and serial number, plus bucket identification and modification history.
Interface: adapter reference, condition, photographs and measurements with defined reference points.
Retention: current and requested pin and retainer references, supported by photographs.
Application: working material, task and the wear or failure issue being addressed.
Supply scope: tooth quantity, hardware quantity, sample requirements and packaging preferences.
Delivery: destination, required arrival date and preferred quotation terms.
For repeat orders, retain the approved drawing revision and sample record. Ask the supplier to identify which inspection documents it can provide for the quoted product or batch. Material, hardness and heat-treatment claims should relate to that product, rather than being assumed from the part number or a general factory brochure.
YASSIAN is a China-based factory supplier of construction machinery wear parts, G.E.T. and undercarriage components. Explore our bucket teeth and bucket adapters, then send the identification details above to discuss your requirement.
For a 1U3202 inquiry, include photographs of the tooth, adapter and retaining hardware, together with your quantity and destination. Contact YASSIAN to request a quotation and confirm the proposed specification, compatibility and supply scope before ordering.
