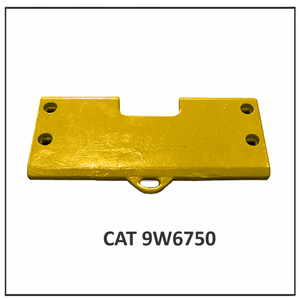

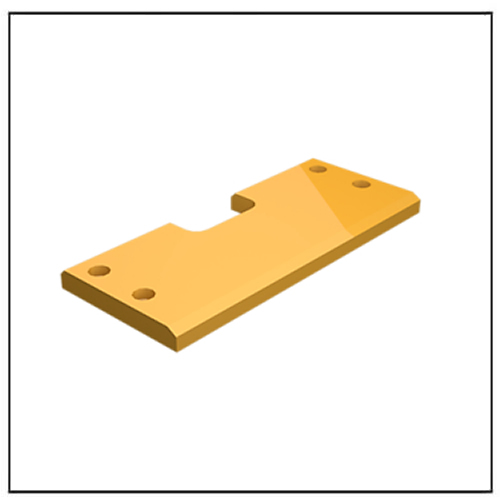

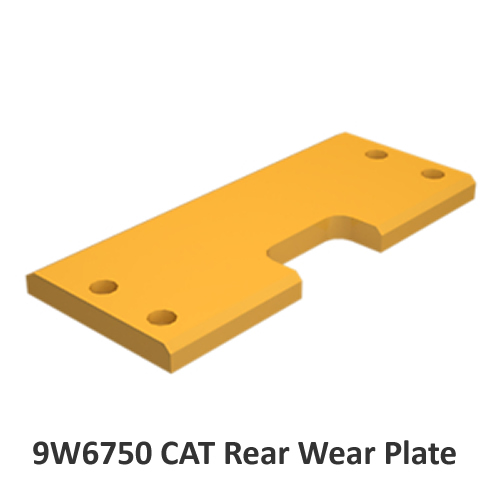

9W6750 CAT Rear Wear Plate

9W6750 CAT Rear Wear Plate, Bolt-on Loader Rear/Bottom Wear Plate, CAT Loader Blades, Loader Heel Plates CAT, replaceable wear plates WEAR PROTECTION, WEAR PLATE fits Caterpillar, Heavy Duty Wear Plate

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

9W6750 CAT Rear Wear Plate SPECIFICATIONS
PART #: 9W6750
Manufacturer:Cat
Machine Type:Loader
Model:980 C General Purpose
SN:4V1220, 5V7354, 5V7356, 6W7800, 6W7801, 8R6478, 9C8318, 9V6710, 4V2488
Blade Position:Rear Wear Plate
Quantity Required:2
Type:DB||
Dimensions:1-3/8 x 10 x 23-1/2
Holes / Bolts:4
Bolt Size:3/4 x 2-1/2
Hole Spacing:1-3/8, 20-3/4, 1-3/8
Weight:82
CORNER GUARD & WEAR PLATES
Fits equipment
Equipment type Model
ENGINE – MACHINE 3306; 3406; 3406B; 3406C; C-9; C9
TRACK-TYPE LOADER 973; 973; 973C; 973D
COMPATIBLE MODELS
WHEEL-TYPE LOADER
980F, 980M, 980C, 980F II 980K
WORK TOOL
TRACK-TYPE LOADER
973, 973C, 973D


Make Model: Caterpillar Loaders 980 C F G Corner Guard System High Lift
Part Number: 9W6750
Serial Number: 6W8564 9U1275 9U1287 9U1281 2Q2792 6W7800 8R6478
Description: Blade Position: Rear Wear Plate | Blade Type: DB|_| | Dimensions: 1.375 x 10.000 x 23.500 | Total Holes: 4 | Bolts Qty: 2 | Bolts Dia x Len: 0.750 x 2.5 | Hole Spacing (End to 1st): 1.38 | Hole Spacing (1st to 2): 20.75 | Hole Spacing (2nd to 3): null | Bolts Qty (row 2): 2 | Bolts Dia x Len (Row 2): 0.750 x 2.5 | Hole spacing (End to 1st Row 2): 1.38 | Hole Spacing (1st to 2 Row 2): 20.75 | Hole Spacing (2nd to 3 Row 2): null
Quantity: 2
Weight: 69.80
Blade Position:Rear Wear Plate
Blade Type:DB|_|
Dimensions:1.375 x 10.000 x 23.500
Total Holes:4
Bolts Quantity:2
Bolts Dia x Len:0.750 x 2.5
Hole spacing (End to 1):1.38
Hole spacing (1st to 2nd):20.75
Bolts Quantity (Row 2):2
Bolts (Row 2) Dia x Len:0.750 x 2.5
Hole spacing (Row 2) (End to 1):1.38
Hole spacing (Row 2) (1st to 2):20.75


Bolt-on rear/bottom wear plates are designed to extend the life of your loader buckets. These genuine Cat® parts protect the rear/bottom of your essential buckets from damage when operating in moderate- to high-abrasion environments.


Applications:
• Buckets on some loaders (not compatible with all buckets)
• Moderate- to high-abrasion environments


Cutting edges end bits

  1. Motor grader blades & motor grader end bits

  2. Bulldozers cutting edges &end bits

  3. Loader blades


Material:
Carbon steel , boron steel, and 16MN.
Hardness:
Carbon steel/16MN HB280-320
Boron steel HB460-HB500

Tractor Cutting Edge and Segment, 6Y3609 Bolt-on Base Edge Loader Wear Plate

TYPEREFERENCEWEIGHTAPLICACIONSCREWNUT

6W027655.46992D


6Y357358.26990


6Y360934.4988F


6Y361082.57992C


7V0910436.2980C


9V579325988B

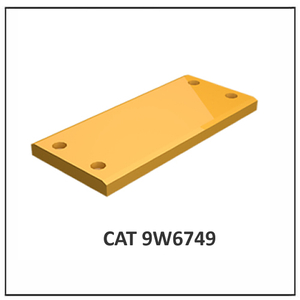

9W674719.16950 – 960 – 962


9W674818.94963


9W674931.64966 – 970 – 973


9W675031.66973 – 980F


109921532.64980G – 980H


161857330.2966G – 966H – 972G – 972H


Product Range

Imperial2

Metrics2
