5T-2925 Cast Brass Shoe Wear Strip for Cat Motor Graders

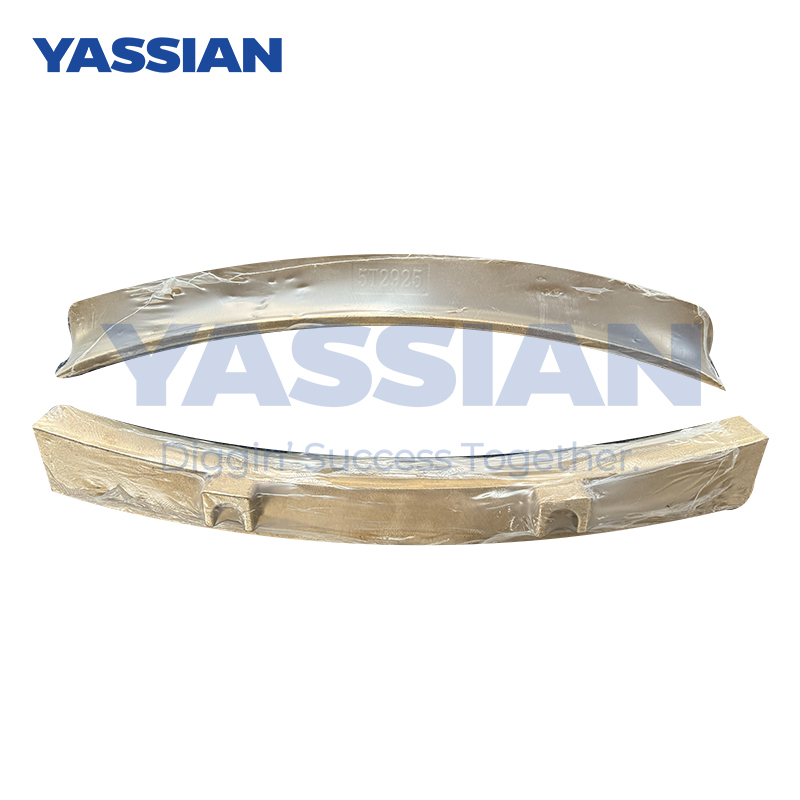

The 5T-2925 shoe wear strip is a curved cast-brass wear component designed for selected Cat motor grader circle drawbar assemblies. Installed at the drawbar and circle interface, it provides a replaceable contact surface that helps prevent direct wear on more costly structural components.

Its profiled shape follows the circular drawbar arrangement and supports smooth relative movement during blade positioning and grading operations. The reference dimensions are 17.00 inches in length, 1.70 inches in width and 2.05 inches in overall height, with a nominal thickness of 32 mm.

This product is intended for aftermarket maintenance and fleet replacement programs. Because drawbar arrangements, quantities and companion components may vary by machine serial number, customers should confirm the part number against the applicable parts catalog before ordering.

Key Features

• Replacement reference for 5T-2925 and 5T2925

• Cast brass/copper-alloy wear-strip construction

• Curved shoe profile for circle drawbar applications

• Nominal 32 mm thickness

• Replaceable sliding and wear surface

• Helps reduce direct wear on drawbar and circle components

• Supports smooth circle and blade-positioning movement

• Suitable for selected Cat motor grader models

• Designed for repair shops, distributors and fleet maintenance programs

• Custom inspection and branding options available for bulk orders

Compatible Equipment

Suitable for selected configurations of:

• Cat 120G Motor Grader

• Cat 120H Motor Grader

• Cat 120K Motor Grader

• Cat 120K Series 2 Motor Grader

• Cat 135H Motor Grader

Compatibility is based on the reference part number. Final fitment must be confirmed using the machine serial number and applicable parts catalog.

Applications

The 5T-2925 wear strip is used in selected motor grader circle drawbar assemblies to:

• Provide a replaceable contact surface

• Reduce sliding friction between mating components

• Limit wear on the drawbar and circle structure

• Support smoother circle movement

• Help maintain the designed operating clearance

• Reduce wear-related maintenance on major structural parts

It is not intended as a cutting edge, moldboard blade, loader wear plate or excavator bucket wear strip.
