128-9654 Nylon Composite Circle Drawbar Wear Strip for Cat Motor Graders

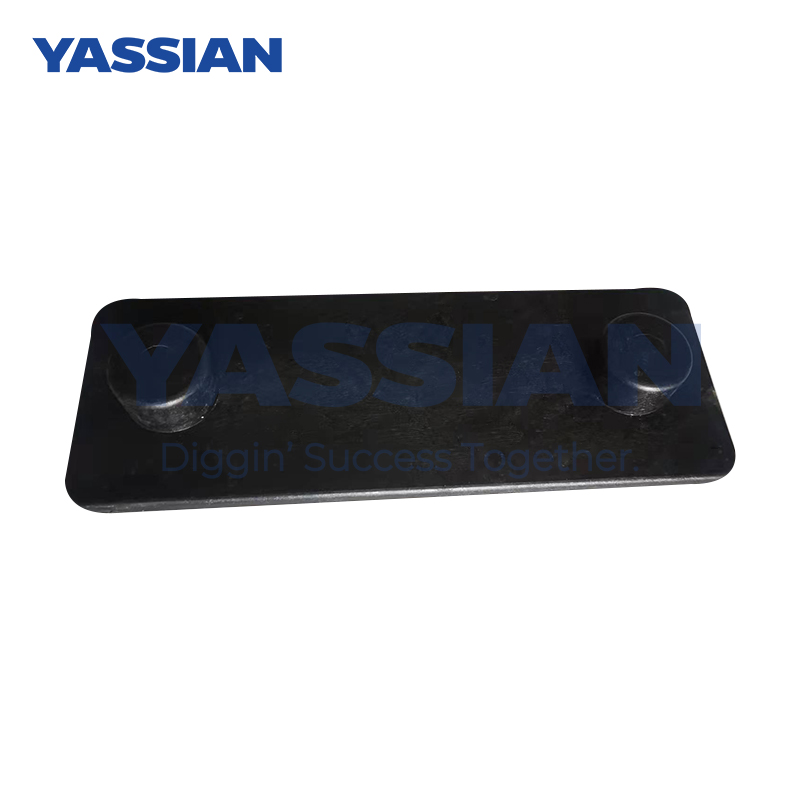

The 128-9654 wear strip is a non-metallic replacement component used in the circle drawbar system of selected Cat motor graders. It provides a serviceable contact layer between the drawbar, circle shoes and circle, helping prevent direct hard contact between mating components during blade rotation and positioning.

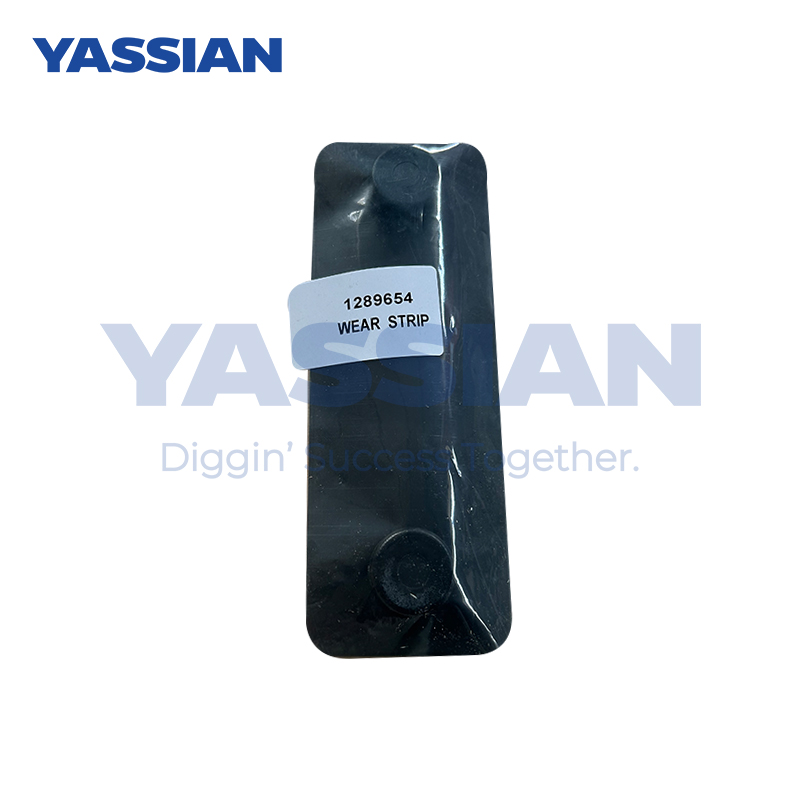

Manufactured from a black nylon-based composite material, the strip is designed to provide low-friction sliding contact while acting as a replaceable wear component. Its published overall length is approximately 178 mm, with a width of approximately 64 mm and a nominal material thickness of 7.9 mm. The molded profile incorporates two mounting features for installation in the applicable drawbar arrangement.

Composite and metallic wear strips can be used in different grader configurations. On certain H-Series machines, 128-9654 may be used as a composite service alternative to the metallic 6G-4524 wear strip. However, material type, mating components and maintenance requirements should be checked before conversion. Part numbers 6G-4524 and 380-7417 must not be assumed to have the same material or specifications as 128-9654.

For accurate B2B order confirmation, buyers should provide the machine model, serial number, existing part number, product photos and critical mounting dimensions.

The listed part number and equipment trademarks are used for identification and compatibility reference only. This is an aftermarket replacement part and is not manufactured or endorsed by Caterpillar Inc.

Key Features

• Aftermarket replacement for reference number 128-9654

• Black nylon-based composite construction

• Designed for selected motor grader circle drawbar systems

• Provides a replaceable sliding and wear surface

• Helps reduce direct metal-to-metal contact

• Supports smoother relative movement within the circle system

• Less sensitive to insufficient lubrication than some metallic alternatives

• Approximate 178 mm overall length

• Two molded mounting features

• Ready-to-mount profile

• Suitable for distributor, importer and maintenance-stock orders

• Dimensional verification available before bulk production

Application

Reference compatibility includes selected configurations of the following Cat motor graders:

• 12H, 12H ES, 12H NA and 12K

• 14G, 14H and 14H NA

• 16G, 16H, 16H NA and 16GC

• 120, 120 GC, 120H, 120H ES, 120H NA, 120K and 120K 2

• 135H and 135H NA

• 140, 140 GC, 140H, 140H ES, 140H NA, 140K and 140K 2

• 143H

• 160, 160H, 160H ES, 160H NA and 160K

• 163H and 163H NA
