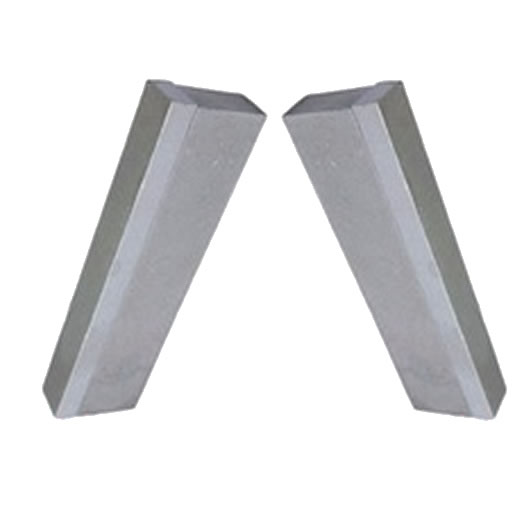

White Iron Wear Bar

White Iron Wear Bar, Bimetallic Wear Bar, White Iron laminated blocks wear bars for wear mining protection, Weldable casting wear bars, high chromium 700HB 63HRC white iron wear bar for mining machine parts, Abrasion-proof wear bars blocks China supplier

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

White Iron Wear Bar – Wear bar is a combination of high chromium (700 brunell) white iron bonded to a mild steel weldable backing plate. Wear bars and blocks are available in thicknesses ranging from 25mm to 100mm, widths from 25mm to 300mm wide and in varying lengths.Popular for use in rock box protection, impact areas and transfer points, bars can be provided with Nelson studs with size and and location to suit.


Available in a wide range of sizes, can be used in a combination of our standard lengths to create layouts and patterns. Perfect for corners, edges and hard to reach places, use Bimetallic Wear Bar and Blocks wherever you need impact and wear resistance.

Wear Bars are available in thicknesses ranging from 25mm to 100mm, widths from 25mm to 300mm wide and in varying lengths. They can be stud bolted to suit fitment needs. They offer superior wear life when compared to conventional alloys such as manganese steel, Ni-hard, Q&T bars and clad overlay strips.
Wear Bars offer a cost effective solutions to wear problems.


laminated 700 HB Wear-resistant Parts are the ideal solution for impact and high abrasion in the following industries:
Earthmoving equipment and transhipment companies
Cement plants
Dredging industry
Recycling industry
Mineral processing industry

laminated 700 HB / 63 HRc Wear-resistant Parts benefits:
Lower operating costs
Longer Service when compared to conventional materials
Increased production
Improved product efficiency
Increased equipment availability


Applications mining bimetallic wear bar:
Chutes and liners
Suction mouth dredging industry
Protection of tunnelboring machines
Shredder tips
Protection dragheads dredging industry
Protection earth moving equipment / shovels / buckets

bimetallic composites is an exceptional laminated product that is resistant to impact and abrasion while retaining ductile characteristics by bonding High-chromium cast iron onto a mild steel backing plate.The bonding shear strength is over 210Mpa and will not separate.
High-chromium cast iron which hardness is Min.63HRC provides very high wear resistant qualities,while the steel backing plate acts as a meaning of absorbing high impacts and allows easy to use and install with no pre or post heating when welding.


Product Range

Imperial2

Metrics2




Wear-Bars-Drawing










Wear Bars Drawing

Part No. Size A(mm) B(mm) C(mm) D(mm) E(mm) Unit Weight(kgs)
DLP919 200X25X25 200 25 15 10 25 1.0
DLP1191 300X25X25 300 25 15 10 25 1.5
DLP200 102X33X33 102 33 25 8 33 0.9
DLP515 195X25X30 195 25 20 10 30 1.1
DLP1059 95X25X30 95 25 20 10 30 0.6
DLP4 300X38X33 300 38 25 8 33 3.0
DLP295 153X38X33 153 38 25 8 33 1.5
DLP658 240X40X38 240 40 22 16 38 2.9
DLP508 190X50X30 190 50 20 10 30 2.2
DLP201 432X50X46 432 50 34 12 46 7.8
DLP125 230X50X50 230 50 38 12 50 4.5
DLP201A 432X50X50 430 50 38 12 50 8.5
DLP369 210X50X50 210 50 38 12 80 4.1
DLP452 254X50X50 254 50 40 10 50 5.0
DLP453 294X50X50 294 50 40 10 50 5.8
DLP1101 150X50X50 150 50 40 10 50 2.9
DLP2230 600X50X50 600 50 38 12 50 11.8
DLP270 254X51X20 254 51 12 8 20 2.0
DLP271 203X51X20 203 51 12 8 20 1.6
DLP337 127X51X48 127 51 38 10 48 2.4
DLP965 250X60X20 250 60 12 8 20 2.4
DLP205 279X75X37 279 75 25 12 37 6.1
DLP184 150X75X39 150 75 29 10 39 3.4
DLP569 200X75X39 200 75 29 10 39 4.6
DLP528 150X75X50 150 75 40 10 50 4.4
DLP619 150X75X600 150 75 50 10 60 5.3
DLP450 294X80X50 294 80 38 12 50 9.2
DLP451 194X80X50 194 80 38 12 50 6.1
DLP392/20 241X100X58 241 100 38 20 58 11.0
DLP2110 300X150X60 300 150 48 12 60 21.1
