Product Description

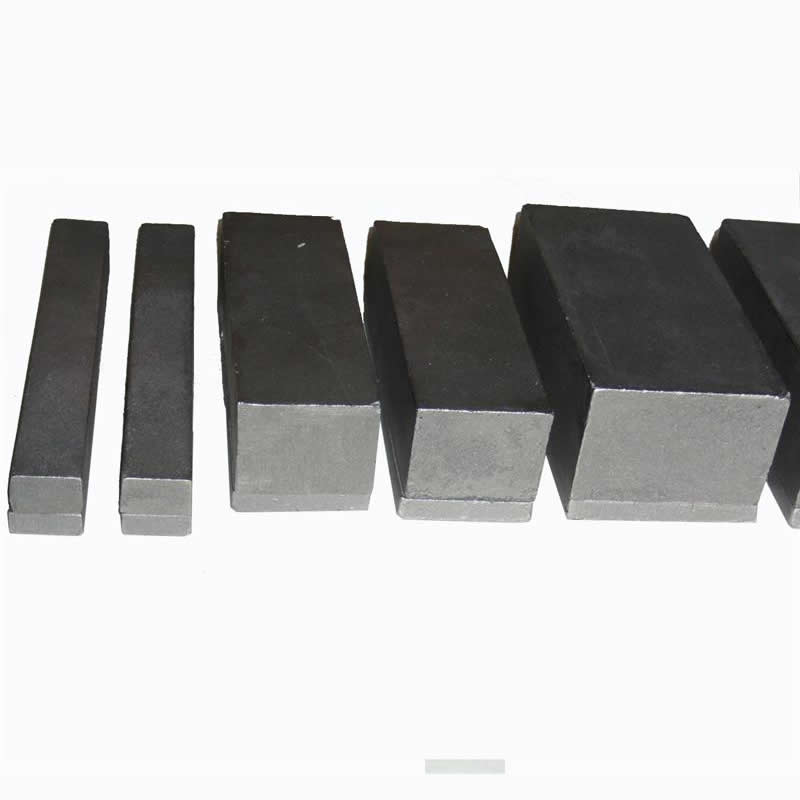

Wear bars are available in thickness from 25 to 100mm, and width from 25 to 300mm, and in different lengths.
These bars offer superior wear life compared to conventional steel alloys such as manganese, Ni-hard and hard facing wear plates.
Wear Bars can be stud bolted to suit fitment needs. They offer superior wear life when compared to conventional alloys such as manganese steel, Ni-hard, Q&T bars and clad overlay strips.
Wear Bars offers a cost effective solutions to wear problems.
•Better wear resistance performance
•Durable
•Fine polish
•Cost effective
•Excellent quality
| ITEM NO. | Size(mm) | Dimension | N.W(kg) | |||
| A | B | C | D | |||
| HSD 200A | 200x25x25 | 200 | 25 | 15 | 10 | 1 |
| HSD 200B | 200x75x75 | 200 | 75 | 63 | 12 | 8.9 |
| HSD 300A | 300x25x25 | 300 | 25 | 15 | 10 | 1.5 |
| HSD 153 | 153x38x33 | 153 | 38 | 25 | 8 | 1.5 |
| HSD 115 | 115x50x50 | 115 | 50 | 38 | 12 | 2.3 |
| HSD 127 | 127x50x50 | 127 | 50 | 38 | 12 | 2.4 |
| HSD 150A | 150x50x50 | 150 | 50 | 40 | 12 | 2.9 |
| HSD 210 | 210x50x50 | 210 | 50 | 38 | 12 | 4.1 |
| HSD 230 | 230x50x50 | 230 | 50 | 38 | 12 | 4.5 |
| HSD 294 | 294x50x50 | 294 | 50 | 40 | 10 | 5.8 |
| HSD 300D | 300x150x60 | 300 | 150 | 48 | 12 | 21.1 |
| HSD 432 | 432x50x50 | 432 | 50 | 38 | 12 | 8.5 |
| HSD 459 | 459x38x31 | 459 | 38 | 25 | 6 | 4.2 |
| HSD 150B | 150x75x39 | 150 | 75 | 29 | 10 | 3.4 |
| HSD 150D | 150x75x60 | 150 | 75 | 50 | 10 | 5.3 |
Standard Wear Bars and Blocks are available in thicknesses ranging from 25mm to 100mm, widths from 25mm to 300mm wide and in varying lengths. Popular for use in rock box protection, impact areas and transfer points, bars can be provided with Nelson studs with size and location to suit. They offer superior wear life when compared to conventional alloys such as manganese steel, Ni-hard, Q&T barsand clad overlay strips.
bimetallic composites is an exceptional laminated product that is resistant to impact and abrasion while retaining ductile characteristics by bonding High-chromium cast iron onto a mild steel backing plate.The bonding shear strength is over 210Mpa and will not separate.
High-chromium cast iron which hardness is Min.63HRC provides very high wear resistant qualities,while the steel backing plate acts as a meaning of absorbing high impacts and allows easy to use and install with no pre or post heating when welding. 310RH Right Hand Adco Style Adaptor
