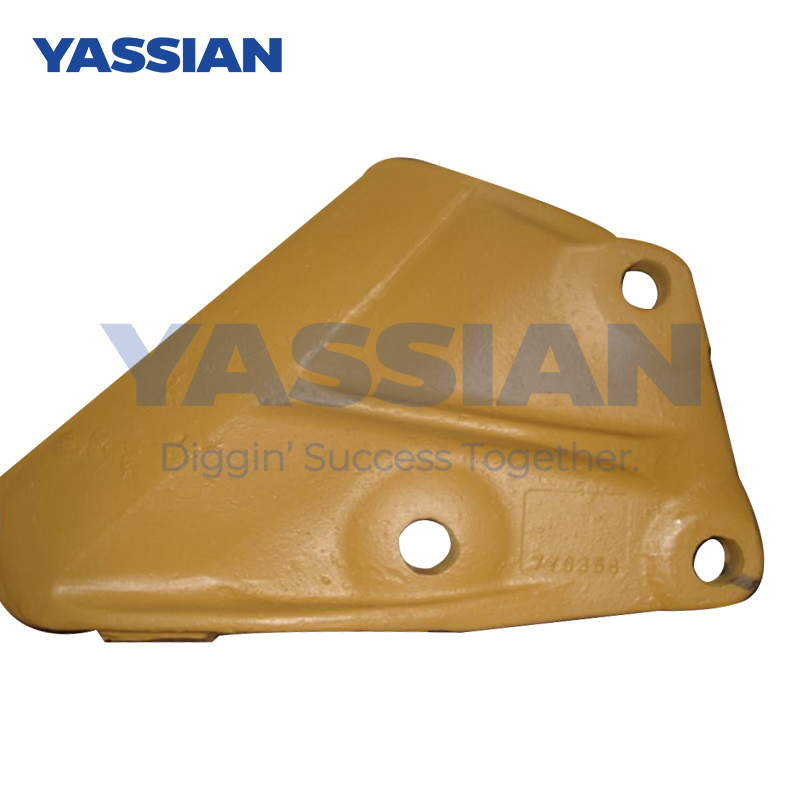

Excavator Bucket Teeth Suppliers Near Me 7Y0358 Earth Moving Equipment Spare Parts

The influence of the diameter of rollers in construction machinery chains

The diameter of the rollers in construction machinery chains directly affects the transmission stability, wear resistance life and load capacity. The core influences are as follows:

I. Wear Resistance and Service Life

An increase in diameter enhances wear resistance ‌

The larger the diameter of the roller, the greater the contact area with the sprocket tooth groove, the lower the pressure per unit area, and the significantly slower the wear rate. For example:

06B chain roller diameter ‌6.35mm‌ → suitable for light load

32A chain roller diameter ‌28.58mm‌ → preferred for heavy-duty mining equipment

Wear control ‌

The wear amount δ has a linear relationship with the working life t, and the reliable life increases with the increase of the roller diameter. For construction machinery, it is recommended that the diameter of rollers be ≥15mm (such as 15.88mm for 16B chains) to ensure long-term reliable operation.

Ii. Impact on Transmission Performance

Meshing smoothness ‌

The diameter of the roller needs to precisely match the tooth profile of the sprocket.

Too small diameter ‌ : it leads to excessive meshing clearance, causing the chain to shake and the risk of tooth skipping

Excessive diameter ‌ : increases interference and friction with the sprocket tooth grooves, resulting in a decrease in transmission efficiency

Example: 08B chain roller diameter ‌7.77mm‌, needs to be matched with sprockets of the same specification (tolerance ≤0.1mm)

Noise and shock ‌

A reasonable roller diameter can reduce the transmission shock noise. In heavy-load scenarios (such as excavators), it is advisable to use large-diameter rollers (such as 20B chains ‌12.07mm‌) to reduce the vibration caused by the chain hitting the sprocket.

Iii. Load Capacity Correlation

Chain model ‌ ‌ roller diameter (mm)‌ ‌ ultimate load (kN)‌

04B‌ 4.45 8.0

16B‌ 15.88 78.0

32B‌ 25.4 250.4

Note: An increase in the diameter of the rollers can share higher tensile stress and enhance the tensile strength of the chain

Iv. Environmental Adaptation Design

Dust environment ‌ : The oil seal chain (such as type 428) adopts a large-diameter roller + sealing ring structure to prevent sand and dust from entering the hinge gap

Corrosion scenario ‌ : stainless steel rollers (diameter ≥10mm) take into account both corrosion resistance and load-bearing requirements

Low-temperature operating conditions ‌ : The diameter of alloy steel rollers needs to be increased by 5% to 10% to compensate for the brittleness change of the material

Selection rule ‌ : The diameter of the rollers should be ‌0.3 to 0.35 times the chain pitch ‌ (for example, a 12.7mm pitch chain with 4.45mm rollers). Deviation from this range will lead to a decrease in transmission efficiency of ≥15%.
