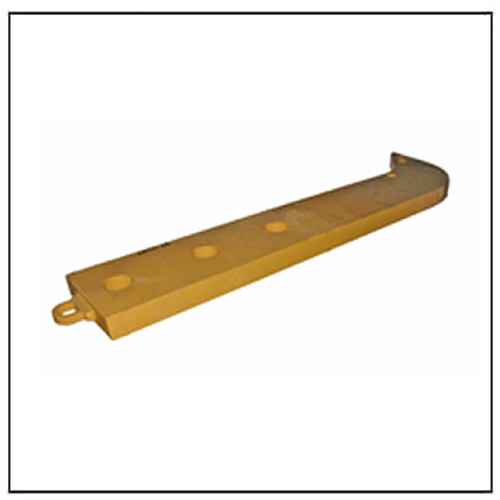

CAT D8N D8T Bulldozer Ripper Shank 8E5347

CAT D8N D8T Bulldozer Ripper Shank 8E5347, Caterpillar Style D8 Forged Ripper Shank, Caterpillar Solid Steel Single Shank Assembly, Caterpillar replacement 8E-5347 – SHANK AS-RIPPER, BARE SHANK TO FIT D8N D8R D8T SINGLE SHANK RIPPER

  • Caterpillar

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

4CAT D8N D8T Bulldozer Ripper Shank 8E5347 Parameter
Weight: 365KGS
Dimension: 75*330*2019MM
Hole Diamater: 3-Φ86MM, 3-Φ27MM
Tooth: 9W2451
Protector: 8E1848



Caterpillar style ripper shank for a D8 Caterpillar Bulldozer. This ripper is 2.94” thick, 13.07” wide and 79.13” long. The bolt hold spacing is 4.25” from the edge to the center of the 1st hole, 16.26” from the edge to the center of the 2nd hole. It takes a 9W2452 tooth, a 6J8814 ripper guard, an 8E8418 ripper shank adapter, and a 9U9694 ripper shank nose.
Weight: 804.68 lb / 365 kg
Shank-Ripper Fits Caterpillar Dozer, Motorgrader, Loader
8E5347 Compatible Models:
track type tractors: D8T, D8R D8N, D8R II 8 57H 8A 8U 8SU D8RLRC



FEATURES FOR THE RIPPER SHANKS

(1) The best material 35CrMo steel was used.

Ripper shanks are cutting tools used to tear through layers of earth or overburden. The majority of the time, ripper shanks are used in tandem with dozers in various configurations.. Hundreds of factors can impact the life cycle of ripper shanks, so it is important to start with steel that can handle the most severe wear applications. 35CrMo was specifically engineered for the mining and earth moving industries, so it is ideal for these types of jobs.

(2) One-piece machine finished ripper shanks, without any welding avoiding the risk of breakage on the welded areas.

(3) High toughness: Ripper toughness is very high even under difficult conditions, such as high rates of strain combined with low temperatures thanks to the forging technology and the best steel in all our shanks.

(4) Excellent cold weather properties
The forging ripper Shank will outlast other ripper shanks by at least 25-35%. In cases where “breaking” has occurred, our forging ripper shanks have lasted three to four times as long as others. The high tensile strength, along with its ultra-fine grain structure, allows for a longer wear cycle. Due to its superior grade steel, the forging Ripper Shank allows for less downtime and increased production.

8E5347-Caterpillar-Style-D8-Forged-Ripper-Shank

8E5347 Caterpillar Style D8 Forged Ripper Shank

BARE SHANK TO FIT D8N D8R D8T SINGLE SHANK RIPPER 4T8990, 8E5346 Forged Ripper Shank Caterpillar Style
DIMENSIONS ARE AS FOLLOWS
2.94 X 13.0
79.53 TOTAL ASSEMBLY LENGTH
3.70 PINHOLE SIZE
COULD BE UNDER 4T8986 SHANK WITH A TIP
Caterpillar replacement 8E5347 – SHANK AS-RIPPER
