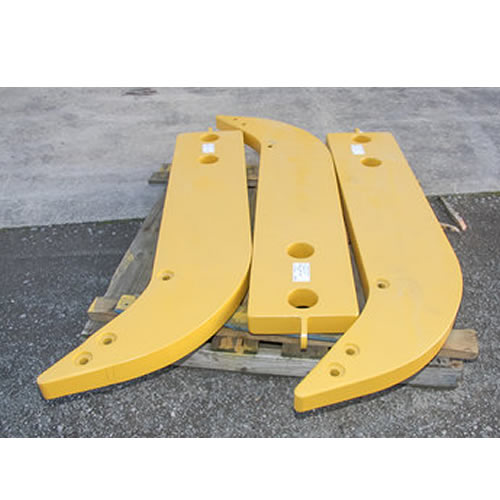

8E5346 Cat Ripper Shank Fits Caterpillar D8, D9

8E5346 Cat Ripper Shank Fits Caterpillar D8, D9, Caterpillar Solid Steel Shank Assembly, Forged Ripper Shank, CAT Shank A Ripper, Multiple Ripper Shank Made to fit Caterpillar CAT Dozer Models, CAT 8E-5346 Shanks Replacement Ripper Tooth Shanks Protectors

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

8E5346 Cat Ripper Shank Fits Caterpillar D8, D9 Parameter
Caterpillar style ripper shank for a D8/D9 Caterpillar Bulldozer. This ripper is 2.94” thick, 13” wide and 63.4” long. The bolt hole spacing is 3.15” from the edge to the center of the 1st hole, 13” from the edge to the center of the 2nd hole. It takes a 9W2452 tooth, a 6J8814 ripper guard, an 8E8418 ripper shank adapter, and a 9U9694 ripper shank nose. Use # 4T8990
Weight 637.13 lb / 289 kg
Shank-Ripper Fits Caterpillar Dozer, Motorgrader, Loader
8E-5346 Compatible Models:
track-type tractor
D9R, 9SU 9U 59N 9 D8N, 8U 57H D8R D8T, D9N, 8SU 58 8 D9T, D8R II 59L 8A 58L D8RLRC


wheel dozer
854K


track type tractors
D9R, 9SU 9U 59N 9 D8N, 8U 57H D8R D8T, D9N, 8SU 58 8 D9T, D8R II 59L 8A 58L D8RLRC


Forged Ripper Shank Common Replacement Applications: Please confirm fitment by machine serial number prior to ordering: Caterpillar D8N/R/T, D9N/R/T, 854K
Approximate Dims:
Total Length @ 63.40″ inches
Width @ 13.00″ inches
Thickness @ 2.94″ inches
Top To First Hole @ 3.15″ inches
Top To Second Hole @ 13.00″ inches
Weight @ 644 pounds each (approximate)
8E5346 Ripper Shank Sold individually (each).
Other related parts you may need (sold separately):
6J6680 Mounting Pin
4T2479 Pin (Qty 2)
9W2452 Tip Ripper Centerline Intermediate (most common)
9W2451 Tip Ripper Centerline Short
4T5451 Tip Ripper Penetration Short
4T5452 Tip Ripper Penetration Intermediate
6Y3394 Pin (Qty 3), 8E4723 Retainer (Qty 3)
8E8418 Protector
6Y3394 Pin (Qty 2), 8E4743 Retainer (Qty 2)
6J8814 ripper guard
9U9694 ripper shank nose.
BARE NEW NON CAT SHANK ASSEMBLY TO FIT CATERPILLAR D8N D8R D8T MULTI SHANK RIPPER
DIMENSIONS ARE AS FOLLOWS
12.60 X 2.94 INCHES
63.40 TOTAL ASSEMBLY LEGNTH
PLEASE CHECK YOUR PIN MOUNTING DIMENSIONS AS THE SAME PART NUMBER CAN HAVE 2 DIFFERENT PIN SIZES
CAN ALSO BE FOUND WITHIN 4T8987 OR 4452034 TOOTH GRP
(WITH TIP AND PROTECTOR)

Part No.Minor Code
1U1257953C, D5G, D3K2
1049277D11
1073485D8K, D8N, D8L, D9H, D9N
1073486D8K, D8N, D8L, D9H, D9N
1144503D9R
1182140D10
3R2729D7F
7J2459D7F
8E5339D9N, D9R
8E5340D8N, D8R, D8T
8E5342D8K, D8N, D8L, D9H, D9N
8E5346D8N/T, D9N/T
8E5347D8N, D8R, D8T
8E8411D10N
8E8414D9R, D10N
8J5299120M, 120H, 135H, D4C
9J3139D6R, D6G, D6T
9J6586160H/M, 120H/M, 14H/M
9J8913963B/D/K, D5N, D6K, 12G
9J8923D6R, D6N, D6T
9W7382D7E, D7H, D7R


Multiple Shank
3″ X 13″ X 63.4″
ripper shanks are made of tough abrasion resistant alloy steel and thru-hardened for strength and maximum wear life. We offer a complete range of shanks for most major O.E.M brands on the market, covering from smallest ripper shanks to the largest in the market. Shank A-Ripper for Caterpillar D8 Dozer 8E5342
Features Include:
• AR400 shank material..
• Wear guards & teeth..
• Heavy duty construction for any severe application.
• Solid steel shank.
• Manufactured with high quality steel.


Product Name SHANK RIPPER
Product Information undercarriage parts/ cutting edge
Material Carbon steel or Boron steel 35mnB
Finish Smooth
Colors Black or yellow
Technique Forging & casting
Yielding Point Carbon 600Re-N/mm2 Boron 1440N/mm2
Surface Hardness Carbon HRC280-320HB Boron HRC440-520HB
Warranty time 2000 hour (Normal life 4000hours )
Certification ISO9001-9002
MOQ 2 pieces
Delivery Time Within 30 days after contract established
Package Fumigate seaworthy packing.
Payment Term
(1) T/T, 30% in deposit, balance on the receipt of copy of B/
(2) L/C, Irrevocable letter of credit at sight.


Product Range

Imperial2

Metrics2


Item Description Parts no. Model Weight
1 Ripper Shank 9J3139 D5,D6 65
2 Ripper Shank 9W7382 D7R 158
3 Ripper Shank 8E5346 D8N,D9N 289
4 Ripper Shank 8E5347 D8N,D8R,D8T 365
5 Ripper Shank 8E5348 D9N,D9R 508
6 Ripper Shank 8E5339 D9N,D10R 425
7 Ripper Shank 8E5340 D8L,D8N 450
8 Ripper Shank 8E5342 D8L 345
9 Ripper Shank 107-3485 D9H,D8K 488
10 Ripper Shank 8E8411 D10N 635
11 Ripper Shank 8E8414 D9L,D10N, 555
12 Ripper Shank 8E8415 D9L,D10N,D10R,D10T 435
13 Ripper Shank 8E8416 D9L,D10N 680
14 Ripper Shank 1099114 D9 665
15 Ripper Shank 1144503 D9R,D9T 560
16 Ripper Shank 118-2140 D10R,D10T 745
17 Ripper Shank 109-3135 D10R,D10T 905
18 Ripper Shank 8E8412 D10 840
19 Ripper Shank 8E8413 D10,D11N,D11R 580
20 Ripper Shank 104-9277 D11N,D11R 1043
21 Ripper Shank 104-9275 D11N,D11R 1247
22 Ripper Shank Adpter 8E8418 D8K,D9H,D8N 75
23 Ripper Shank Adpter 103-8115 D10,D10N,D10R 82
24 Ripper Shank Adpter 104-9279 D11N,D11R 140
25 Ripper Shank 144-78-11243 D75 105.4
26 Ripper Shank 15A-79-11120 D155 363
27 Ripper Shank 175-78-21615 D155 283
28 Ripper Shank 24Y-89-30000 D155 461
29 Ripper Shank 195-79-31141 D275,D355 548
30 Ripper Shank 195-79-31140 D355 658
31 Ripper Shank 195-79-51151 D375 607
32 Ripper Shank 198-79-21320 D475 1030
33 Ripper Shank Adpter 175-78-21693 D155 94
34 Ripper Shank Adpter 195-78-14350 D275,D355 120
35 Ripper Shank Adpter 17M-78-21360 D275,D355 53
36 Ripper Shank Adpter 195-78-71380 D375 56
37 Ripper Shank Adpter 198-78-21430 D475 90
38 Ripper Shank 10Y-84-50000 SD13 53.32
39 Ripper Shank 16Y-84-30000 SD16 105
40 Ripper Shank 154-78-14348 SD22 tridentate 156
41 Ripper Shank 23Y-89-00100 SD22 206
42 Ripper Shank 175-78-21615 SD32 tridentate 283
43 Ripper Shank 24Y-89-30000 SD32 461
44 Ripper Shank 24Y-89-50000 SD32 466
45 Ripper Shank 31Y-89-07000 SD42 548
46 Ripper Shank 185-89-06000 SD52 576
47 Ripper Shank 1189-89-09000LS SD90 1025
48 Ripper Shank Adpter 24Y-89-30000-2 SD32 110
49 Ripper Shank Adpter 24Y-89-50000-2 SD32 118
50 Ripper Shank Adpter 31Y-89-07000-2 SD42 120
