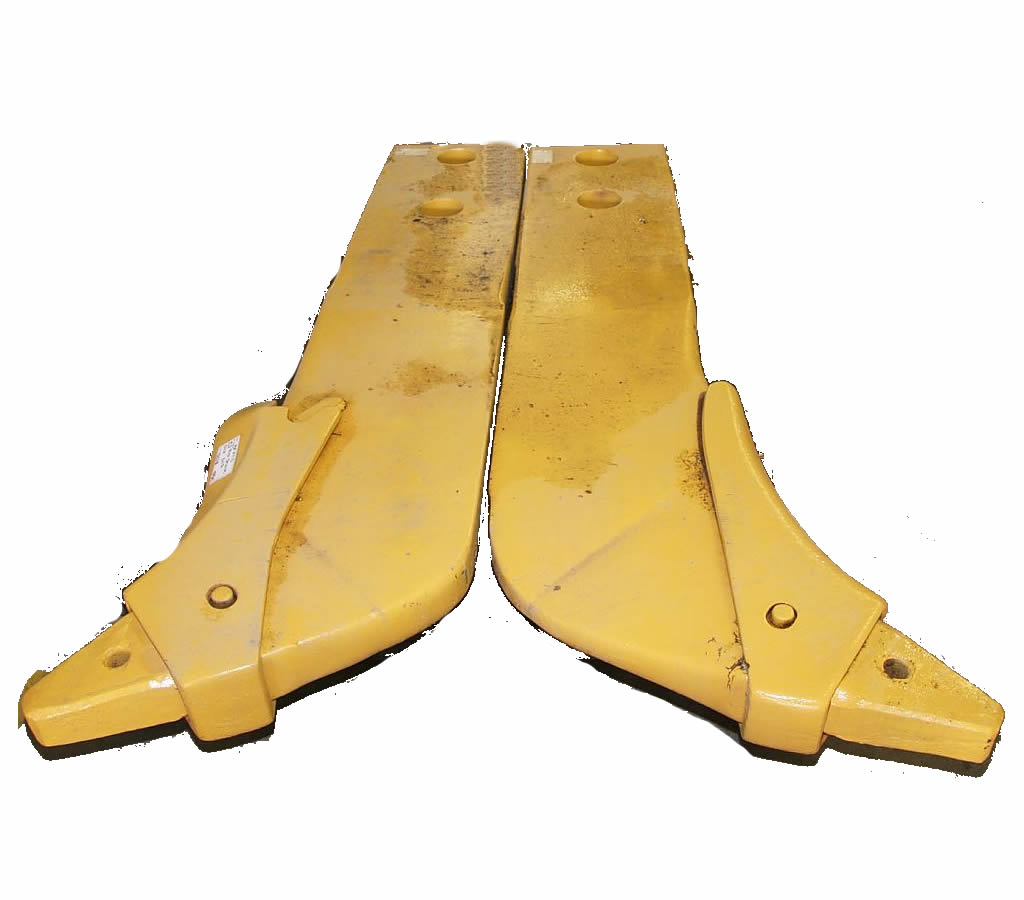

8E8413 D11 Multiple Shank Ripper

☑ Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

8E8413 D11 Multiple Shank Ripper Parameter
Weight:580KGS
Dimension(mm):100*400*1977mm
Hole Diamater:2-Φ114.3，3-Φ32.5
Tooth:4T4501
Protector:6Y8960

Caterpillar style ripper shank for a D10/D11 Caterpillar Bulldozer. This ripper is 4” thick, 15.75” wide and 77.85” long. The bolt hole spacing is 4” from the edge to the center of the 1st hole, 15” from the edge to the center of the 2nd hole. It takes a 4T4502 tooth, a 6Y8960 ripper guard, a 103-8115 ripper shank adapter, and a 107-3361 ripper shank nose.
Weight 804.68 lb / 365 kg
Shank-Ripper Fits Caterpillar Dozer, Motorgrader, Loader
8E-8413 Compatible Models:
track-type tractor
D11T, D11R, 11U 11SU D11N, 11

FEATURES FOR THE RIPPER SHANKS

(1) The best material 35CrMo steel was used.

Ripper shanks are cutting tools used to tear through layers of earth or overburden. The majority of the time, ripper shanks are used in tandem with dozers in various configurations.. Hundreds of factors can impact the life cycle of ripper shanks, so it is important to start with a steel that has the ability to handle the most severe wear applications. 35CrMo was specifically engineered for the mining and earth moving industries, so it is ideal for these type of jobs. CAT D8N D8T Bulldozer Ripper Shank 8E5347

(2)One-piece machine finished ripper shanks, without any welding avoiding the risk of breakage on the welded areas.

(3)High toughness:Ripper toughness is very high even under difficult conditions, such as high rates of strain combined with low temperatures thanks to the forging technology and most good steel in all our shanks.

(4)Excellent cold weather properties
The forging ripper Shank will outlast other ripper shanks by at least 25-35%. In cases where “breaking” has occurred, our forging ripper shanks has lasted three to four times as long as others. The high tensile strength, along with its ultra-fine grain structure, allows for a longer wear cycle. Due to its superior grade steel, the forging Ripper Shank allows for less downtime and increased production.

Multiple Shank Ripper – D10, D11N
NOTE: Caterpillar Style Aftermarket – Fits CAT equipment. This part may fit various machines.
Quality & Service You Can Trust!
-Our products are manufactured to meet or exceed OEM specifications.
-We ONLY sell Quality, Reliable and Guaranteed products!
-Over 11 branches throughout the USA for fast and efficient delivery.
BARE SHANK ASSEMBLY TO FIT D11N D11R D11T MULTI SHANK RIPPER
DIMENSIONS ARE AS FOLLOWS
15.75 X 4 INCH
77.85 TOTAL ASSEMBLY LEGNTH
4 INCH PIN HOLE
COULD ALSO BE UNDER 6Y5615 SHANK ASSEMBLY WITH TIP AND PROTECTOR
