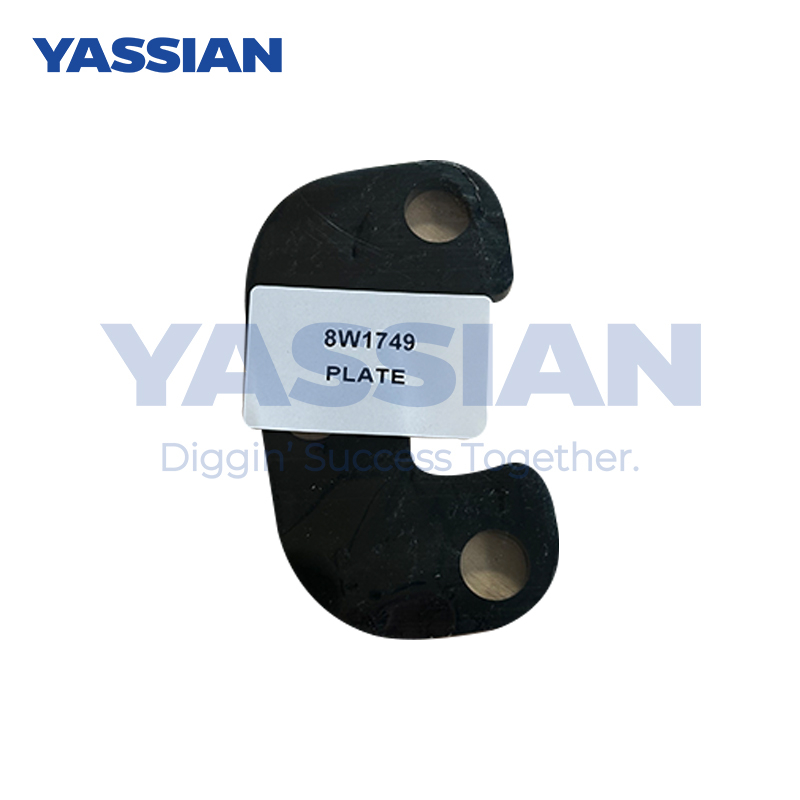

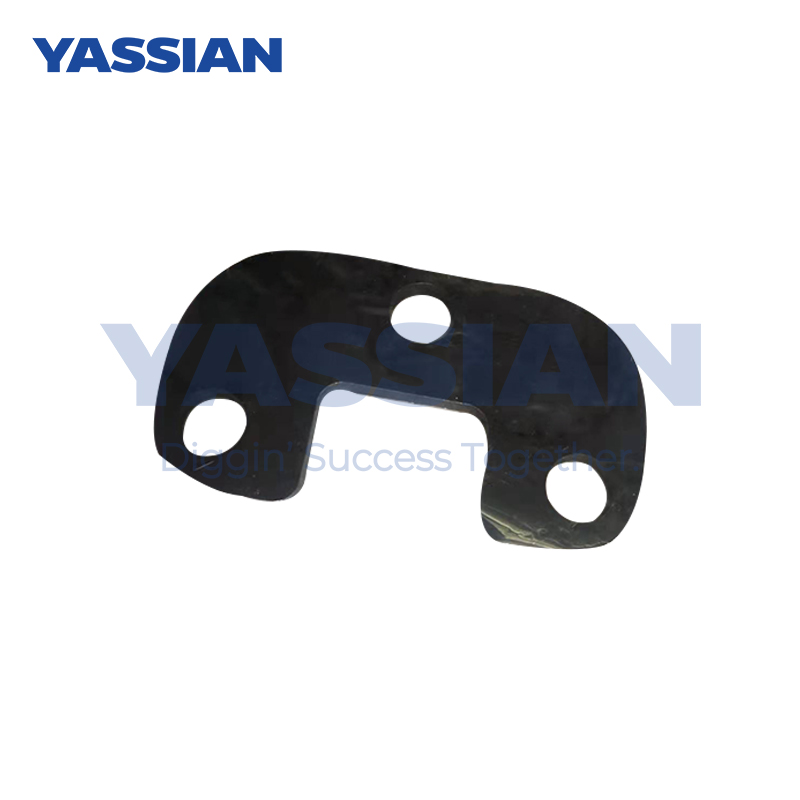

8W1749 Blade Bracket Support Plate for Cat Motor Graders

Plate 8W1749 for Caterpillar Motor Graders

Overview

The Plate 8W1749 is a robust component designed for Caterpillar motor graders, typically used as a structural or mounting plate to secure components such as the moldboard, drawbar, or circle assembly, ensuring stability and precise grading performance. Constructed from high-strength steel, it is built to withstand heavy-duty grading conditions.

Key Features

• Material: High-strength steel, resistant to wear, impact, and corrosion.

• Design: Precision-engineered for secure fitment, typically used in the drawbar or circle assembly to support grading operations. Ensures structural integrity and alignment.

• Compatibility: Fits Caterpillar motor graders:

• 120G, 120H, 120K, 12G, 12H, 130G, 140G, 140H, 160G, 160H

• Engines: 3304 (120G, 12G, 130G, 140G), 3306 (120H, 12H, 140H, 160G, 160H)

• Verify fitment via CAT SIS with serial numbers (e.g., 87V for 120G, 4MK for 120H, 61M for 12G, 72V for 140G, 6ZK for 140H).

• Cross-References: 8W-1749, CA8W1749.

• Dimensions: Specific dimensions unavailable; typical plates are approximately 10-20 in (L) x 5-10 in (W) x 0.5-1 in (H), based on similar components. Weight approximately 15-25 lbs (6.8-11.3 kg).

Benefits

• Durability: High-strength steel withstands abrasive grading conditions, extending component life.

• Performance: Ensures stable mounting for precise grading operations.

• Cost-Effective: Aftermarket options reduce maintenance costs.

• Installation: Direct-fit design simplifies replacement; professional installation recommended.

Technical Specifications

• Part Number: 8W1749

• Condition: New aftermarket, OEM

• Weight: ~15-25 lbs (6.8-11.3 kg, estimated)

• Material: High-strength steel

• Application: Drawbar/circle assembly mounting plate
