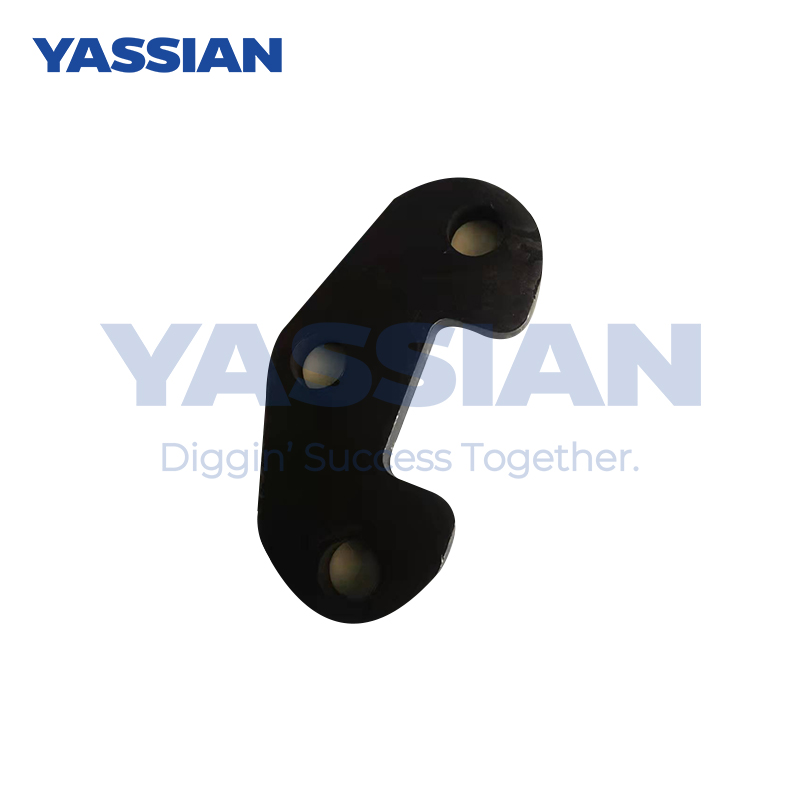

104-7238 Three-Bolt Blade Mounting Plate for Cat 14G, 14H, 16G And 16H Motor Graders

The 104-7238 mounting plate is an aftermarket replacement component for the blade and circle drawbar assembly on selected Cat motor graders. Its three-hole design provides a secure mounting interface within the grader blade support system.

The plate has an approximate overall size of 130.0 × 65.5 mm and a nominal thickness of 10 mm. Three mounting holes, each approximately 15.5 mm in diameter, accommodate M12 or 1/2-inch hardware according to the applicable machine configuration.

This replacement plate is intended for maintenance and repair of selected Cat 14G, 14H, 14H NA, 16G, 16H and 16H NA motor graders. Because parts usage may vary by serial number, arrangement and previous machine modification, buyers should provide the machine model, serial number, current part number and product dimensions before placing a bulk order.

104-7238 is used as a reference number only. This product is an aftermarket replacement part and is not manufactured or authorized by Caterpillar Inc.

Key Features

• Aftermarket replacement for reference part number 104-7238

• Three-bolt design for the motor grader blade mounting system

• Intended for installation on the circle drawbar assembly

• Structural steel construction

• Nominal 10 mm plate thickness

• Three approximately 15.5 mm mounting holes

• Suitable for M12 or 1/2-inch mounting hardware

• Painted finish available according to production requirements

• Dimensional inspection available before shipment

• Suitable for distributor, importer and repair-stock purchasing

Application

The 104-7238 plate is designed for use in the blade and circle drawbar mounting system of selected Cat motor graders, including:

• Cat 14G Motor Grader

• Cat 14H Motor Grader

• Cat 14H NA Motor Grader

• Cat 16G Motor Grader

• Cat 16H Motor Grader

• Cat 16H NA Motor Grader

Compatibility must be checked against the machine serial number and applicable parts arrangement. Model-only matching is not sufficient for final order confirmation.
