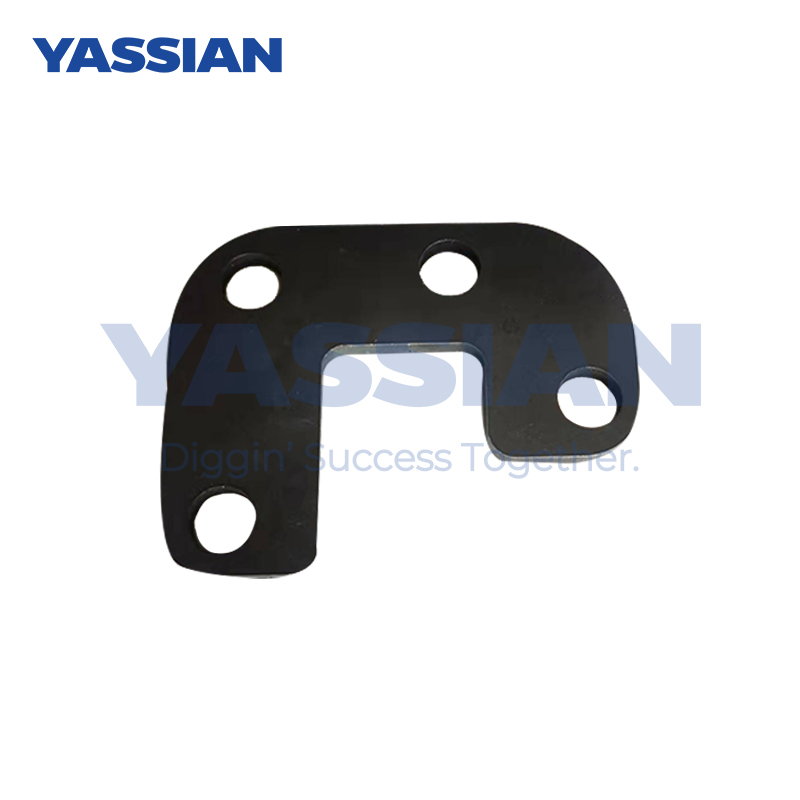

6D-5415 Blade Bracket Support Plate for Cat Motor Graders

The 6D-5415 blade bracket support plate is designed for use in the drawbar circle and blade bracket area of selected Cat motor graders. Its primary function is to support the blade bracket assembly and help maintain stable positioning within the grader circle system.

The plate is manufactured from structural steel and has four mounting holes designed around 1/2-inch fasteners. Its compact profile and nominal 6 mm thickness make dimensional accuracy particularly important for correct assembly, bracket support and clearance between related components.

Part number 6D-5415 is commonly associated with Cat 12F, 12G, 14E, 120G, 130G and 140G motor graders. However, compatibility may vary according to machine serial number, grader circle configuration and previous equipment modifications.

For accurate part identification, buyers should provide the machine model, serial number, existing part number and, where possible, photographs or measurements of the original plate.

Cat and Caterpillar are trademarks of Caterpillar Inc. They are used for reference purposes only. This product is an aftermarket replacement and is not represented as a genuine Cat part.

Product Features

• Aftermarket replacement referencing part number 6D-5415

• Designed for the blade bracket area of the drawbar circle

• Structural steel construction

• Nominal 6 mm plate thickness

• Four precision-positioned mounting holes

• Approximately 0.53-inch hole diameter

• Designed around 1/2-inch mounting fasteners

• Suitable for selected Cat motor grader configurations

• Dimensional inspection available before shipment

• Bulk supply suitable for distributors, importers and repair operations

Applications

The 6D-5415 support plate is used in the drawbar circle and blade bracket assembly of selected motor graders. It is suitable for grader maintenance, circle assembly repair and replacement of worn, damaged or dimensionally unsuitable support plates.

Referenced Compatible Models

• Cat 12F Motor Grader

• Cat 12G Motor Grader

• Cat 14E Motor Grader

• Cat 120G Motor Grader

• Cat 130G Motor Grader

• Cat 140G Motor Grader

• Ripper/scarifier configurations associated with selected 12G, 130G and 140G machines

Fitment note: Model compatibility does not guarantee compatibility with every serial-number range. Confirm the machine serial number and applicable parts diagram before ordering.
