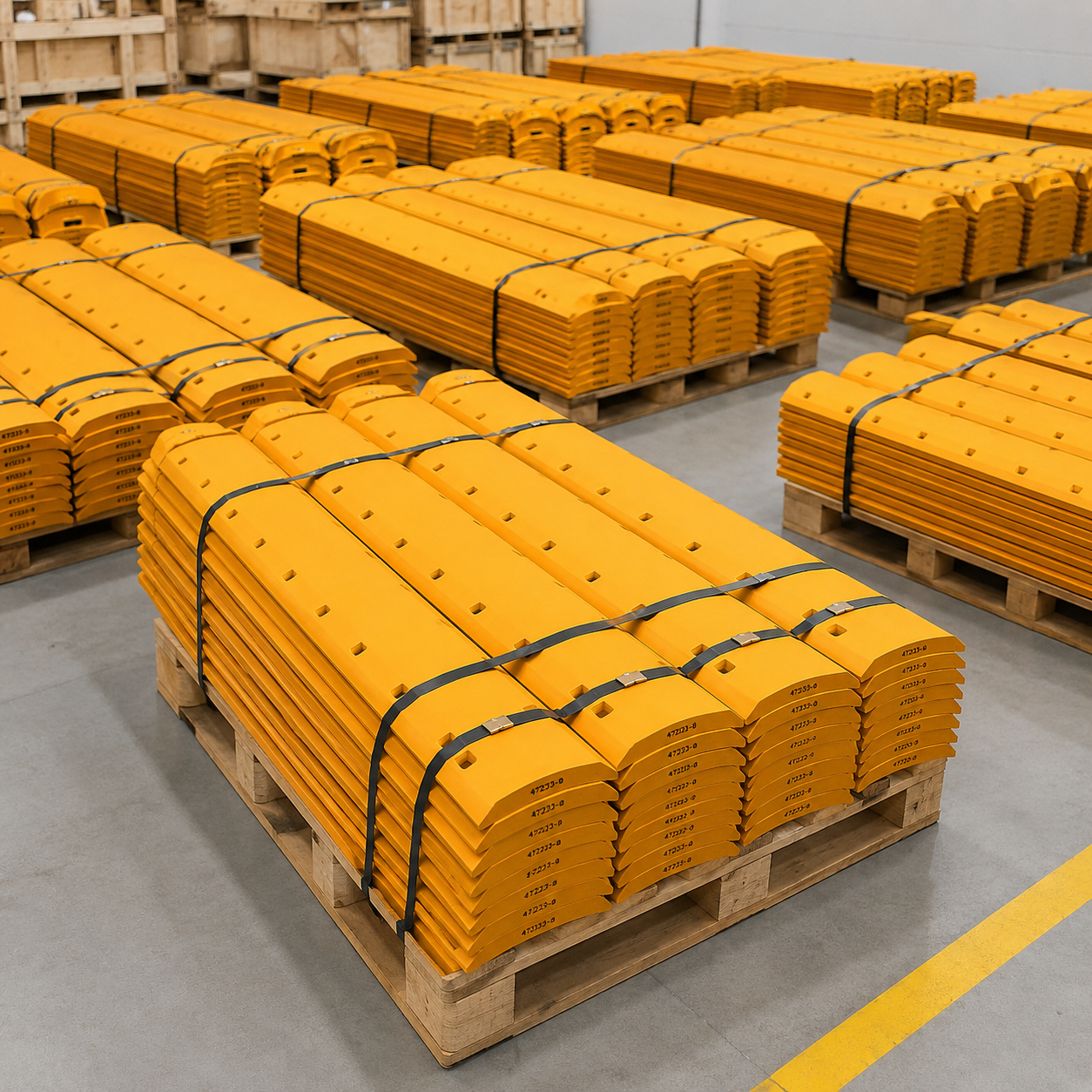

4T-2233 Curved Motor Grader Cutting Edge for Cat 130G, 14G and 16G

The 4T-2233 curved motor grader cutting edge is designed as an aftermarket replacement for applications referencing Cat part number 4T-2233.

Its continuous curved profile helps the blade enter the working surface and carry material forward during grading operations. This makes the profile suitable for road maintenance, surface leveling, material spreading and general finish-grading work.

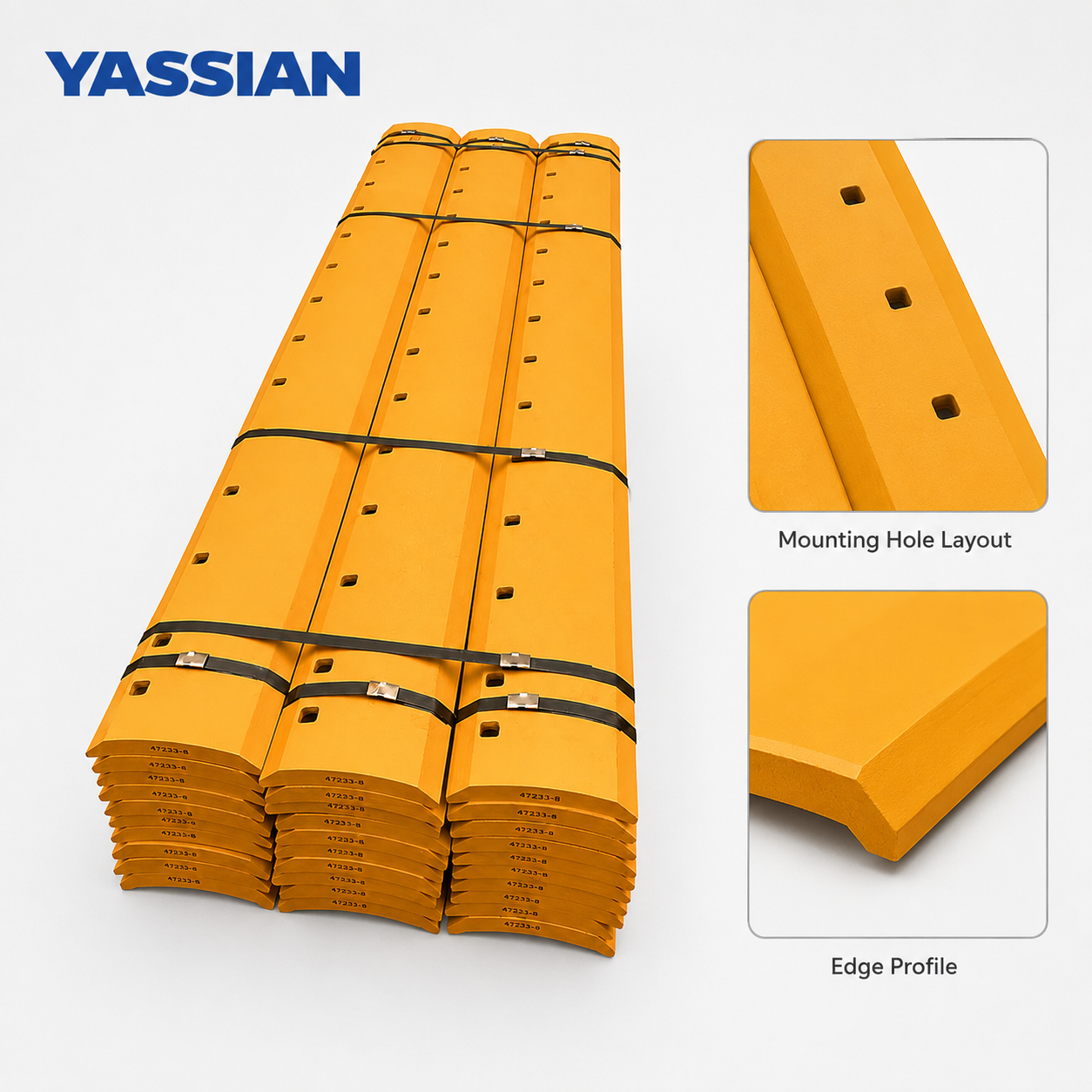

The cutting edge has a nominal length of 2131.2 mm, a width of 203.2 mm and a thickness of 25.4 mm. It uses a 15-hole mounting pattern with 152.4 mm hole spacing and is designed for 3/4-inch plow bolts with 21 mm square holes.

Reference applications include Cat 130G, 14G and 16G motor graders. Machine model alone does not guarantee compatibility because moldboard configuration, serial number, mounting pattern and previous equipment modifications may vary.

Before placing an order, please provide the existing part number, machine model, serial number and key dimensions. Material grade, heat-treatment requirements, unit weight, coating, logo, packaging and fasteners should be confirmed according to the final quotation and production specification.

KEY FEATURES

• Reference replacement for part number 4T-2233

• Curved motor grader cutting edge

• Continuous, non-serrated profile

• Nominal 25.4 mm thickness

• 2131.2 mm overall length

• 203.2 mm blade width

• 15-hole mounting pattern

• 152.4 mm standard hole spacing

• Designed for 3/4-inch plow bolts

• Bolt-on installation for easier replacement

• Suitable for grading, leveling and road-maintenance applications

• Dimensional and application verification available before production

APPLICATION

Reference equipment:

• Cat 130G Motor Grader

• Cat 14G Motor Grader

• Cat 16G Motor Grader

Typical working applications:

• Road construction and maintenance

• Surface leveling

• Finish grading

• Material spreading

• Repairing and shaping unpaved roads

• General earthmoving and grading work

Compatibility must be confirmed using the original part number, machine serial number, moldboard configuration and mounting dimensions.
