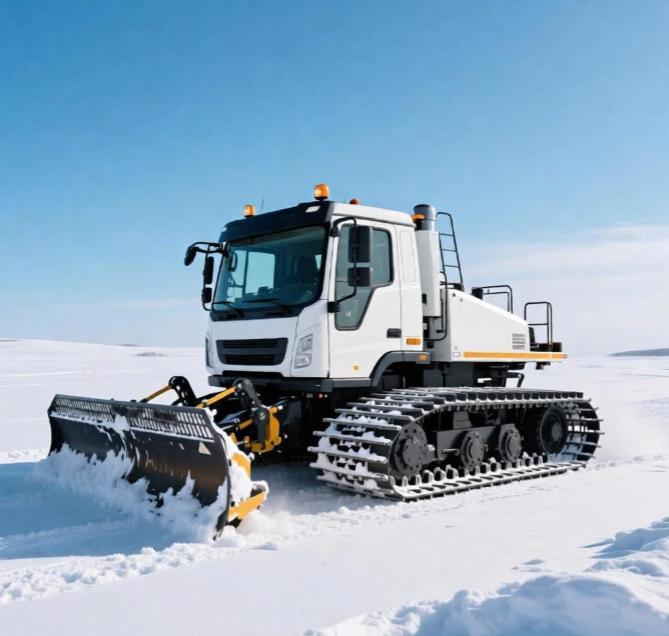

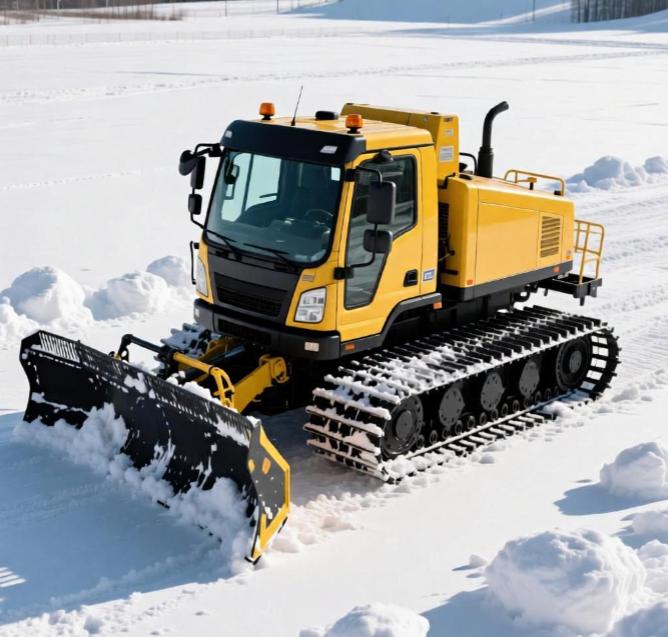

The 8-tonne behemoth crushes the slopes! The Fowor FR80G tracked snow groomer leaves no snow untouched!

The Fowor FR80G is an 8-tonne class tracked snow groomer engineered for extreme snow conditions. With its powerful drive system and modular design, it delivers the ultimate solution for snow clearing, levelling and ice breaking across ski resorts, urban roads and beyond. Its tracked chassis combined with a wide-cut blade ensures exceptional traction and operational efficiency in challenging terrain, including deep snow and ice layers.

I. Performance: The Perfect Balance of Power and Efficiency

Core Power: Equipped with a Cummins B3.3-C80 turbocharged engine delivering a maximum power output of 60kW. Maintains stable performance in low-temperature environments, meeting the demands of high-intensity continuous operation.

Hydraulic System: Features a 160L/min axial variable displacement piston pump, enabling precise control of bucket lifting, steering and other functions with a 30% improvement in response speed.

Structural Design:

Operating weight: 8.3 tonnes.

Bucket capacity: 0.32 cubic metres.

Track plate width: 450mm.

Ground pressure: Reduced to 37kPa, minimising compaction damage to snow surfaces.

Operational Capability:

Bucket digging force: 64.7kN.

Effortlessly breaks through 20cm-thick ice layers.

Snow-clearing efficiency: 40% improvement over conventional models.

II. Application Scenarios: All-Terrain Snow Operations Specialist

Ski Resort Maintenance: Designed for advanced slopes, rapidly levels snow surfaces and breaks ice layers, ensuring slope flatness with less than 3cm deviation to enhance skiing experience.

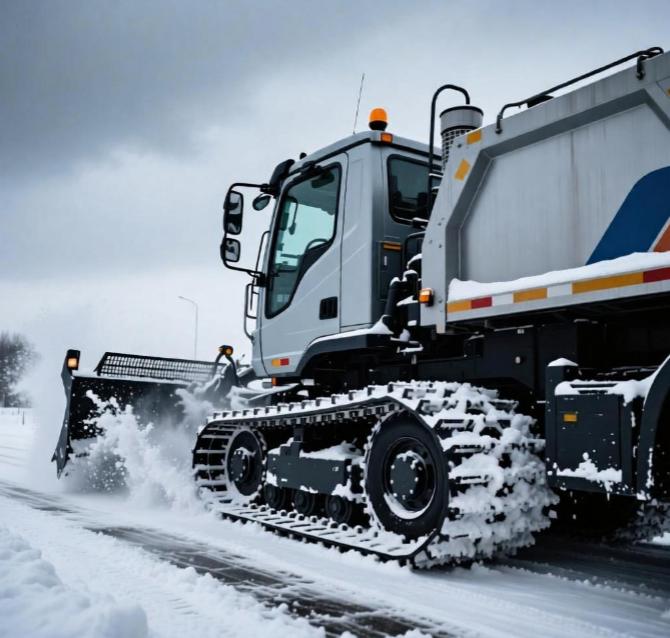

Urban Snow Clearance: Operates reliably across extreme temperature variations from -30°C to 40°C, maintaining stable traction on icy surfaces. Single passes cover 6-metre-wide roadways.

Mountain Emergency Response: 30° gradient capability and crab steering enable agile manoeuvring on narrow bends, facilitating rapid deployment during sudden blizzard events.

III. Core Features: Dual Breakthroughs in Intelligence and Durability

Multi-mode Operation System:

Snow Ploughing Mode: Adjustable bucket angle adapts to varying snow accumulation levels.

Ice Crushing Mode: High-frequency bucket tooth vibration boosts crushing efficiency by 50%.

Snow Levelling Mode: Laser-assisted levelling reduces surface roughness by 60%.

Intelligent Temperature Control Module:

Hydraulic oil preheating system enables rapid start-up at -20°C, minimising cold-start wear.

Durability Design:

Key components feature manganese steel reinforcement, extending bucket tooth lifespan to 1,200 hours and increasing blade impact resistance by 35%.

IV. Accessory System: Modular Design and Precise Compatibility

Bucket Tooth System:

Model 14659025: Rock-specific teeth (hardness HRC58) for breaking hard ice layers; flat teeth for fine snow levelling; ice-breaking teeth with serrated structure for enhanced ice fragmentation efficiency.

Model E161-3027: Extra-sharp teeth (15° angle) suitable for loose snow layers, reducing operational resistance.

Blade Assembly:

XG955 Dozer Blade: 25mm plate thickness with edge hardening treatment; replaceable design reduces maintenance costs.

Undercarriage Reinforcements:

JBD-29 Road Roller: Dual-sealed bearing structure with IP67 dust and water resistance rating, suitable for muddy and snowy terrain.

Straddle-type Idler Wheel: Adjustable track tension reduces derailment risk.

Power Maintenance Kit:

WHPV-45-S-L-01-M Plunger Pump: Flow deviation <2%, ensuring hydraulic system stability.

R1803 Hydraulic Filter Element: Nano-fibre construction, 10μm filtration precision, extending hydraulic oil lifespan.

Electrical Control Module:

SL-5CKF10QB Electronic Five-Way Valve: Integrated pressure sensor for real-time hydraulic system monitoring.

V. Professional Application Case Studies

Pre-season Ski Resort Preparation: An international ski resort utilised the FR80G to complete the levelling of 12 ski runs within 48 hours, achieving an ice-breaking efficiency of 2000m²/hour – a 20-fold improvement over manual labour.

Urban Blizzard Emergency Response: Operated continuously for 18 hours during a blizzard at -25°C, clearing 150,000 cubic metres of snow from main thoroughfares with zero operational failures.

VI. Maintenance and Upgrade Recommendations

Winter Maintenance Essentials:

Daily post-operation clearance of snow from track plate gaps to prevent ice-induced jamming.

Monthly inspection of bucket tooth wear; replacement required if exceeding 5mm.

Technical Upgrade Options:

Optional GPS work path recording system for digitalised slope levelling management.

Upgrade to intelligent warning module for real-time monitoring of critical parameters including hydraulic oil temperature and engine load.
