Motor grader cutting edges are among the most critical ground-engaging tools on any motor grader. While many buyers are familiar with flat, curved, and serrated motor grader cutting edges, fewer fully understand how their structural differences translate into real-world performance.
For contractors, fleet managers, and equipment distributors, selecting the right cutting edge is not just about price—it directly affects wear life, fuel consumption, grading accuracy, and downtime.
As a professional motor grader cutting edges manufacturer, this guide provides a clear, practical comparison of flat vs curved vs serrated cutting edges, helping B2B buyers choose the most cost-effective solution for their working conditions.
Cutting edges are the replaceable bottom components attached to a grader blade. They do the primary work of cutting, scraping, leveling, and moving material during operations such as road maintenance, grading, snow removal, and earth shaping. These edges come in a variety of profiles and designs; the most common being flat, curved, and serrated — each engineered for specific performance characteristics.
Motor grader cutting edges are ground-engaging wear parts that endure constant abrasion, impact, and load. Even small differences in edge geometry can result in:
Up to 20–30% variation in wear rate depending on ground conditions
Noticeable differences in penetration force and machine stability
Higher or lower cost per operating hour
Understanding how different cutting edge designs interact with soil, gravel, ice, and compacted materials is essential for long-term efficiency.
Cutting Edge Type | Structural Feature | Primary Advantage | Typical Use |
Flat Cutting Edge | Straight, full-width edge | Maximum durability | Heavy-duty grading |
Curved Cutting Edge | Slightly arched profile | Better penetration & finish | Precision grading |
Serrated Cutting Edge | Tooth-like notches | Aggressive penetration | Hard or frozen ground |
Each design solves a different operational problem.

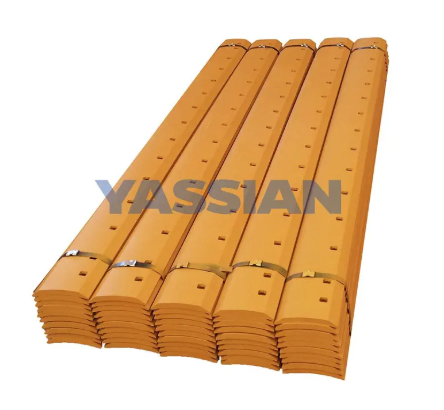

Flat cutting edges have a straight, uniform profile with a large contact surface. This design distributes wear evenly across the edge.
Longest service life in abrasive conditions
Excellent resistance to bending and impact
Stable blade control under heavy load
Requires more downforce for penetration
Less effective material rolling
Average finish quality compared to curved edges
Gravel road maintenance
Base course reconstruction
Heavy earthmoving and long grading passes
Flat motor grader cutting edges are often chosen when durability and predictable wear are the top priorities.

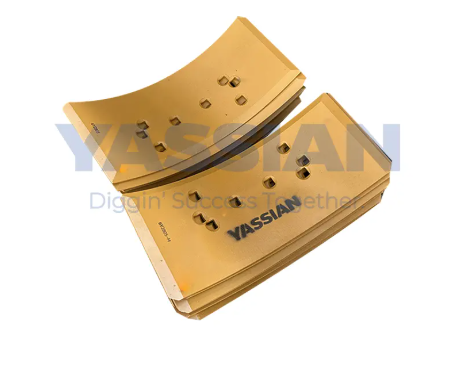

Curved cutting edges feature a controlled radius along the working edge, reducing contact resistance during cutting.
Easier penetration into compacted materials
Smoother material flow along the moldboard
Improved surface finish and grading accuracy
Reduced blade drag and operator effort
Slightly faster wear than flat edges
Higher unit cost
Not ideal for severe impact environments
Finish grading
Road profiling and shaping
Snow removal and light material spreading
For projects where surface quality and productivity matter, curved motor grader cutting edges deliver measurable advantages.

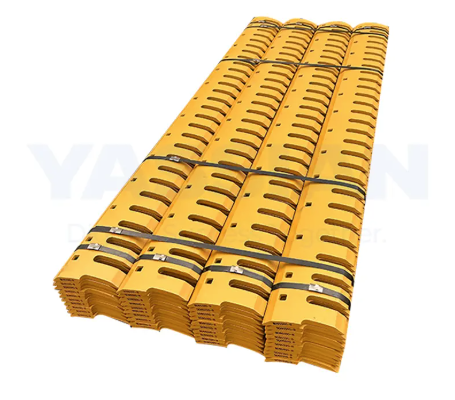

5D9559S 4Z9020 Curved Serrated Cutting Edges Grader Blade
Serrated cutting edges use evenly spaced teeth or notches to concentrate cutting force at multiple contact points.
Superior penetration in frozen, compacted, or hard-packed ground
Breaks surface crust more efficiently
Reduces grader slipping and bouncing
Shorter wear life than flat or curved edges
Rougher surface finish
Higher replacement frequency
Winter road maintenance
Frozen soil and icy surfaces
Initial cutting on hard-packed gravel
Serrated motor grader cutting edges are often used seasonally, especially in cold regions.
Performance Factor | Flat | Curved | Serrated |
Wear Life | ★★★★★ | ★★★★☆ | ★★★☆☆ |
Penetration | ★★☆☆☆ | ★★★★☆ | ★★★★★ |
Surface Finish | ★★★☆☆ | ★★★★★ | ★★☆☆☆ |
Fuel Efficiency | Moderate | High | Lower |
Cost per Hour | Low | Medium | Higher |
Best for ROI | Abrasive jobs | Precision work | Hard ground |
This comparison highlights why no single cutting edge type fits all jobs.
When selecting motor grader cutting edges, B2B buyers should consider:
1. Ground Conditions
Abrasive but unfrozen → Flat cutting edges
Compacted or mixed materials → Curved cutting edges
Frozen or extremely hard surfaces → Serrated cutting edges
2. Required Finish Quality
Final grading and shaping → Curved
Structural base work → Flat
Surface breaking → Serrated
3. Cost per Operating Hour
Lower upfront cost does not always mean lower total cost. Matching the edge type to the job can reduce fuel use, downtime, and replacement frequency.
Experienced contractors and fleets often rotate cutting edges based on season and task:
Flat edges for heavy-duty and abrasive work
Curved edges for finishing and profiling
Serrated edges for winter and frozen ground
This approach can significantly improve overall equipment efficiency and wear part ROI.
Flat, curved, and serrated motor grader cutting edges are engineered for different challenges. Understanding their differences allows buyers to:
Improve grading accuracy
Extend wear life
Reduce operating costs
Maximize machine productivity
As a professional motor grader cutting edges manufacturer, YASSIAN supplies a full range of flat, curved, and serrated cutting edges designed for demanding construction and road maintenance environments.
Contact YASSIAN today for expert selection advice or customized motor grader cutting edge solutions tailored to your application.
