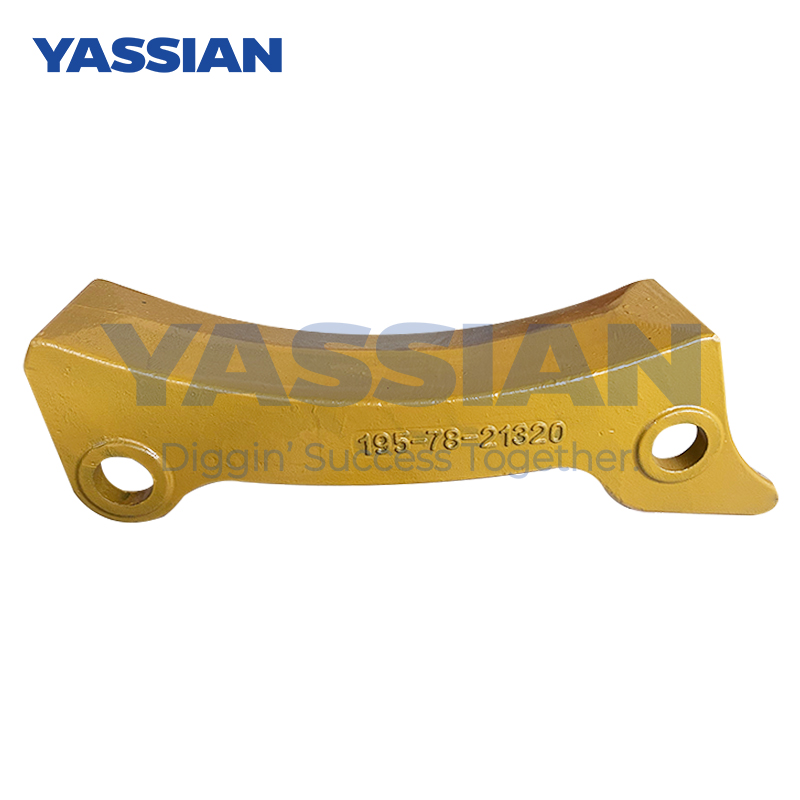

Protector 195-78-21320 Earth Moving Equipment Spare Parts

Triple inspection standards for bucket tooth materials

The testing standard system for bucket tooth materials mainly focuses on three core dimensions: chemical composition, mechanical properties, and geometric dimensions and appearance, covering the following three key tests:

Material chemical composition testing ‌ : Through spectral analysis or chemical analysis methods, verify the content and uniform distribution of alloying elements (such as carbon, manganese, chromium, molybdenum), and screen for non-metallic inclusions and banded microstructure defects.

Example: The proportion deviation of alloying elements shall comply with the GB/T 4336-2002 standard, and the inclusion rating shall be based on ASTM E45.

Mechanical property testing ‌ : including hardness testing (such as HRC, HBW or HV), tensile strength, impact toughness and wear resistance tests.

For example: surface hardness gradient control (HRC 52-55), Charpy pendulum impact test (KV2≥40J), and wear resistance test to quantify the wear amount.

Geometric dimensions and appearance inspection ‌ : Use tools such as a three-coordinate measuring machine to verify dimensional tolerances (e.g., pitch error ≤±0.05mm), and inspect surface cracks, pores and other defects through visual inspection or low-power magnifying glass.

The judgment criterion refers to ISO 1328-1:2013, and the dimensional deviation must be within the tolerance range of the drawing.
