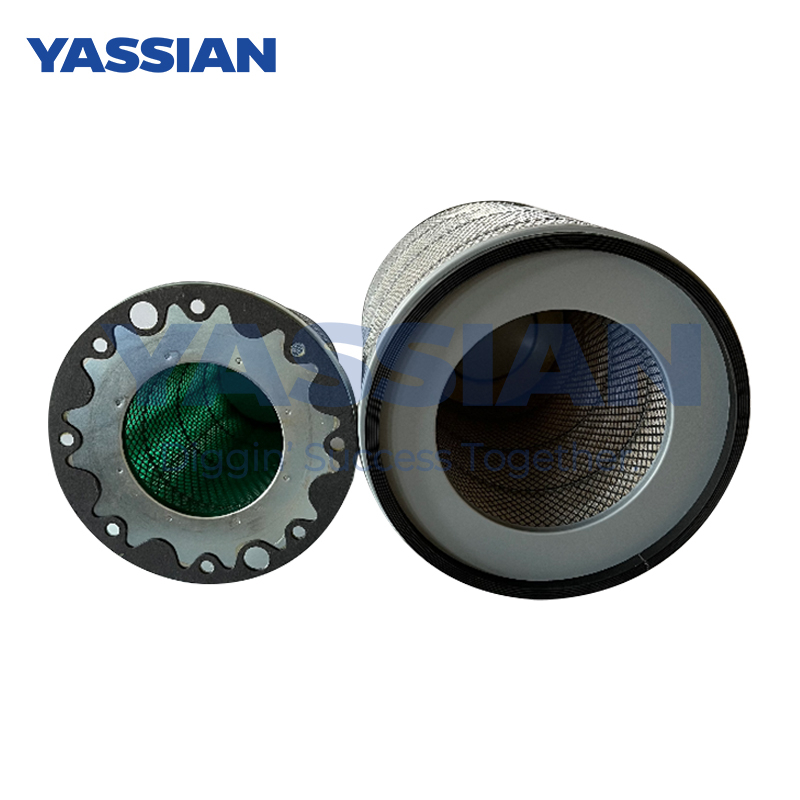

Industrial Filtration Equipment Oil Filter 7W5317 9S9972 Filter Diesel Engine

The influence of dust load on the service life of filter elements

Dust load is a core parameter affecting the service life of filter elements, referring to the mass of dust adhering to the filter material per unit area (kg/m²). The influence mechanism on the filter element's lifespan and the corresponding countermeasures are as follows:

I. The Direct Impact of Dust Load on Service Life

Youdaoplaceholder0 accelerates clogging and increases resistance ‌

The higher the dust concentration, the faster the dust layer on the surface of the filter element thickens, resulting in an exponential increase in filtration resistance. When the dust concentration exceeds 150mg/m³, the service life of the air filter element is shortened by more than 50% (500 hours under normal conditions vs. 300 hours under high dust conditions).

When the filter element is clogged and the pressure difference exceeds the design value by 1.5 times, the dust removal efficiency drops sharply, with an air volume loss of 15% to 20%. In severe cases, it may cause the equipment to shut down in a chain reaction

Ii. Key Technologies for Extending Lifespan

The resistance of ‌ filter material is upgraded to ‌

Youdaoplaceholder0 metal sintered filter element ‌ : It can withstand the impact of high-speed dust flow at 25m/s and has a service life of over 5 years under conditions containing quartz sand. Although the cost is high, it is 25% lower than that of paper filter elements within the cycle.

Youdaoplaceholder0 superhydrophobic coating ‌ : nano-scale rough structure + fluorosilane modification, surface energy is reduced to <10mN/m, dust adhesion rate is decreased by 99%, and maintenance cycle is extended by 6 times (for example, the filter element replacement in cement plants is extended from monthly to half a year).

Youdaoplaceholder0 ash cleaning system optimization ‌

Youdaoplaceholder0 pulse reverse blowing technology ‌ : Efficient cleaning can extend the service life of polyester filter elements by 2-3 times. The blowing pressure needs to be controlled at 0.4-0.6MPa (excessive pressure can damage the fibers).

Youdaoplaceholder0 Intelligent control strategy ‌ : by dynamically adjusting the frequency of ash cleaning based on differential pressure sensors, a certain chemical plant reduced ineffective ash cleaning by 40% and increased the utilization rate of filter cartridges by 28%.

Youdaoplaceholder0 Pre-filtration and structural design ‌

Youdaoplaceholder0 cyclone pre-separation ‌ : removes over 80% of coarse particles larger than 10μm, reduces the load on the filter element, and extends the service life of the main filter element by 2.3 times.

Youdaoplaceholder0 pleated fluid optimization ‌ : By adopting arc-shaped pleats/gradient pleat number design, the uniformity of air flow distribution is improved by 35%, and local blockage is reduced.

Iii. Extreme Working Conditions Response Plan

Youdaoplaceholder0 mine/steel plant high dust ‌ :

Metal filter element + pre-separation module, the replacement cycle is extended to 8-10 years (6-12 months for vs polyester filter element).

Real-time monitoring of pressure difference, mandatory replacement when resistance exceeds 2000Pa.

Youdaoplaceholder0 powder coating workshop sticky dust ‌ :

Do not use physical hammering or water washing (which may cause fiber hardening). Use ultrasonic cleaning to restore 92% of the initial efficiency.

Iv. Suggestions for Economic Maintenance

Youdaoplaceholder0 Replacement critical point ‌ : Replace immediately when the maintenance cost exceeds 60% of the purchase price of the new filter element;

Youdaoplaceholder0 dust load monitoring ‌ : The inlet concentration, filtration air velocity and cleaning cycle are linked and regulated, which can reduce the total life cycle cost of the filter element by 30%.

Dust load restricts the service life of the filter element through three mechanisms: ‌ mechanical clogging, wear and chemical adhesion ‌. The selection should match the characteristics of the dust (such as hardness and humidity), and integrate intelligent monitoring and material technology innovation to maximize the service life
