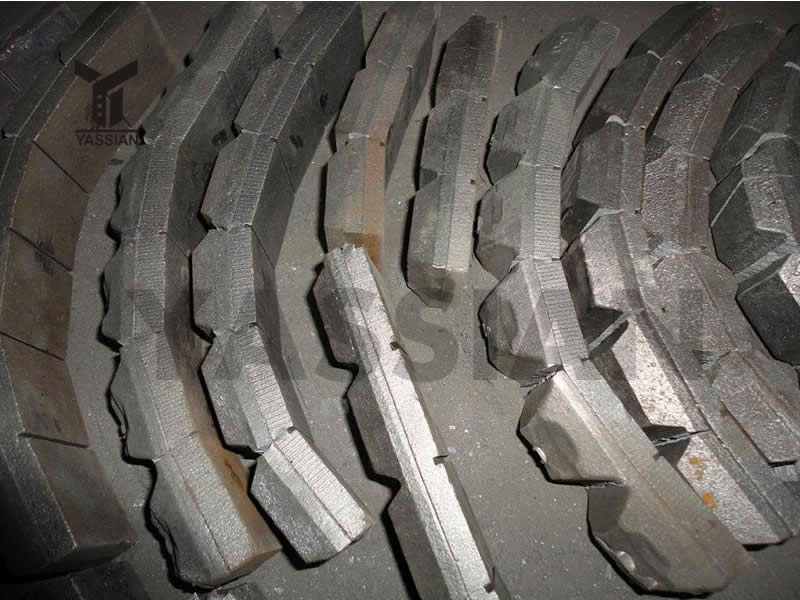

CB150 Wear Protection Chocky Bar

☑ Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

CB150 Wear Protection Chocky Bar Feature:
150mm or 5 15/16″ wide by 240mm or 9 7/16″ long chocky bar, 700 brunell high chromium white iron with a mild steel weldable backing plate; This chocky bar is 1″ tall, .68″ thick of white iron and .32″ thick of the mild steel backing plate.
Weight: 12.3 lb / 5.58 kg

Chocky Wear Bar are unique block products that can be formed and welded onto flat or curved surfaces. This allow chocky bars to be used on a range of fixed plant and mobile equipment such as buckets and chute liners.

Chocky Bars are available in a wide range of sizes to fit all of your unique applications and are an inexpensive, effective protection alternative to

expensive, labour intensive, hard facing welding methods.
Easy to use, cut and shape over contoured surfaces. There is also no pre-heating or post heating required when welding YASSIAN Chocky Bar into
place.

Applications for Wear Protection Chocky Bar are wide and varied, ranging from wear protection on buckets for loaders, excavators, draglines machines, pump
housings, impellors, chute/hopper linings to hammer tips for recycling industry.
If you contact us about the use of Chocky Bars for your particular applications, chances are high someone is already using it successfully for a similar application.

The unique, formable design of chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need.
Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.

They are easy to use and install. They can be bent, cut and formed to suit different surfaces.

The standard thickness of chocky bars is 23 mm, standard length is 240 mm, width could be from 25mm from 150mm. We can also produce according to your special requests.

Chocky bars & Wear buttons are the newest applied parts which used on protecting buckets to a long life, Parts are bonding by vacuum brazing furnace by two different materials. Top material had hardness of BHN650 Min. to guarantee the good wear resistant then make the bucket had a long life and down material is mild steel plate which had good welding properties on buckets, Whilst, Bar Bottoms with 40mm(1-9/16”) spacing grooves will easy for customer to cut the bars based on different bucket position sizes, Simple hand welding method can help customer to save more cost and time on buckets’ repair and reproduce.

Chromium Chocky Bar White Iron Wear Blocks Chocky Bar and Wear Button for Bucket
