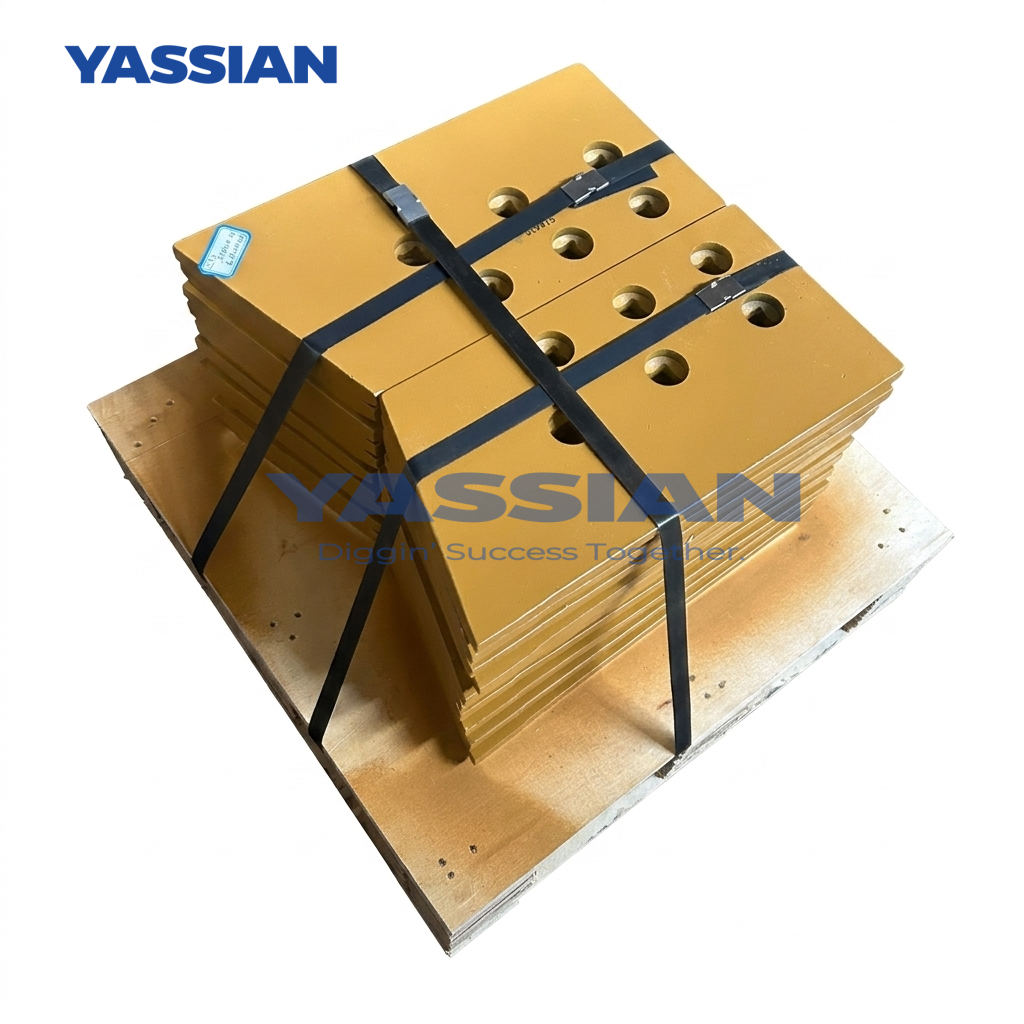

4T-2231, 4T2231 Caterpillar Genuine Cat Ground Engaging Tools Blades

The 4T2231 curved motor grader cutting edge is designed for grading, road construction and surface-maintenance applications where dependable penetration and moldboard protection are required.

This continuous, non-serrated cutting edge has a nominal length of 6 ft, an 8 in width and a 1 in thickness. Its 13-hole mounting pattern accepts 3/4-in plow bolts, helping simplify replacement when the machine and blade configuration have been correctly verified.

The curved profile supports material penetration and controlled material flow during grading operations. The reference design specifies through-hardened boron steel to provide a practical balance between wear resistance and impact strength. Actual material grade, hardness and heat-treatment requirements should be confirmed in the quotation and inspection documents.

Part number 4T-2231 is associated with selected Caterpillar motor graders, including certain 120G, 12G, 130G, 140G, 16H, 16GC, 18 and 18M3 configurations. Compatibility must not be determined by model name alone because blade assemblies, serial-number ranges and previous modifications can differ.

Before ordering, please send the machine model, serial number, reference part number, existing blade photos, required quantity and critical measurements. YASSIAN can verify the length, width, thickness and hole pattern before production or shipment.

Key Features

• Aftermarket replacement referencing part number 4T-2231

• Curved continuous cutting-edge profile

• Nominal 6 ft blade length

• 1 in heavy-duty thickness

• 8 in blade width

• 13-hole mounting pattern

• Designed for 3/4-in plow bolts

• Non-serrated edge configuration

• Suitable for road grading and surface-maintenance work

• Dimensions and hole pattern available for pre-shipment verification

Application

Suitable for selected configurations of:

• Caterpillar 120G Motor Grader

• Caterpillar 12G Motor Grader

• Caterpillar 130G Motor Grader

• Caterpillar 140G Motor Grader

• Caterpillar 16H Motor Grader

• Caterpillar 16GC Motor Grader

• Caterpillar 18 Motor Grader

• Caterpillar 18M3 Motor Grader

Typical working applications include:

• Road construction

• Road surface grading

• Material spreading and leveling

• Shoulder maintenance

• Site preparation

• General grader moldboard wear protection

Compatibility note: Machine model alone does not guarantee fitment. Confirm the serial number, blade assembly, part number and hole pattern before ordering.

4T-2231, 4T2231 Caterpillar Genuine Cat Ground Engaging Tools Blades Specifications:

Part name: Grader Blade
Part No: 4T-2231, 4T2231

Weight: 149 pounds 67 kg.
Information:
BEVEL ANGLE 33
BOLT HOLE SIZE 21 mm
HOLE SPACING 152.4 mm
LENGTH 1826.4 mm
NUMBER OF HOLES 13
THICKNESS 25.4 mm
WIDTH 203.2 mm

Material: Manganese steel, boron steel
Thickness: 13mm; 16mm; 19mm; 25mm.
Width: 152mm and 203mm.
Length: 4=1219mm; 5=1524mm; 6=1828mm; 7=2133mm; 8=2438mm.
Bolts Dia: 3/4; 5/8
Adaptable for most of graders in market, including Komatsu, Caterpillar, Hitachi, Sumitomo, Kato, Daewoo, etc, also could be designed and produced by clients’ drawing.
Mechanical properties of products could reach international standard after quenching and tempering heat treatment.
Thanks to our high quality raw material and professional heat treatment, our products’ wear life and performance of are 15% ~ 20% higher than most of other similar products in market.
Trade Terms: FOB NINGBO.
Payment Terms: 30% prepaid, T/T at the sight of copy of B/L. Mounting Edge fit CATERPILLAR Grader Blade 5B5561 5B5562, Caterpillar Bolt-On Cutting Edges Grader Blades 5B5564, 7T1633 4T-2244, 4T2244 Caterpillar Parts 120G, 12G, 130G, 140G 6FT Blade

Offer for instant purchase has cost one hundred and six dollars, forty-six cents, condition of spare part – aftermarket.

Specifications: weight (lbs) 1. For these characteristics delivery equals fifty-seven dollars, seven cents. Abrasion Resistance 9 Holes Caterpillar Spare Parts Curved Cutting Edge 7T1643, 9W2309 Relacement Caterpillar Edge Cutting for Motorgrader, 8D2787, 8D-2787 Curved Blade for Construction Equipment Motor Grader
Part number 5D9558 EDGE-CUTTING BORON refers to: Ground engaging, Edges. High Carbon Curved Cutting Edge Grader Blade 9W-2302, 9W2302, 9W2302 High Carbon Curved Motor Grader Blade, 8D2787, 8D-2787 Caterpillar Curved Cutting Edges for Grader Equipment, 8D2786, 8D-2786 Curved Blade for Motorgrader with 13 Holes, MOUNTING fit CATERPILLAR Motorgrader Curved Blade 8D2786, 4T2242, 4T-2242 China Cutting Edge & End Bit, Caterpillar CUTTING EDGE CURVED 1.83M 6FT, 4T-2231, 4T2231 Caterpillar Cutting Edge Tractor Grader Blades
