Product Description
Hydraulic Rock Breacker Chisel Features:
1. Material: SCR440 or SCM440
2. Dimension: Depending on the specification of Tool Maker

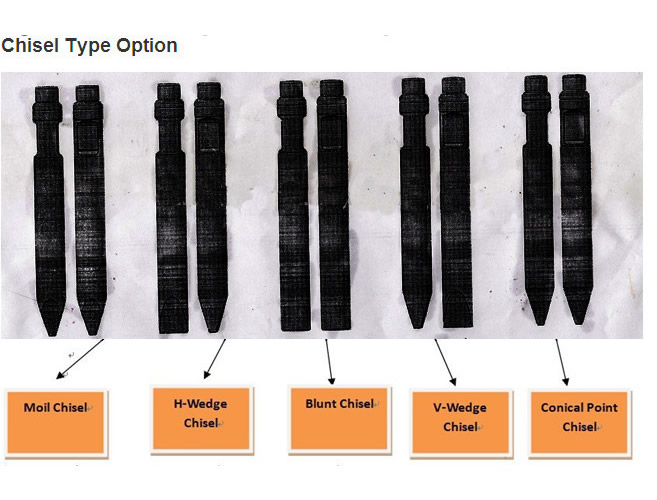

3. Chisel type: Moil Point, Blunt Tool, Flat, wedge
4. Heat Treatment:
Austenting Temperature 810~850 (20min/inch)
Cooling Water oil cooling
Tempering 250~300 (1hr/inch)
5. Mechanical Properties:
Surface Hardness HRC51± 3
Core Hardness HRC35± 3
Tensile strength(min) 1250N/mm²
Yield point (min) 950N/mm²
Elongation 10~14%
Reduction of Area 35~40%
Impact work 23~28 ft1b
Grain size 7.0~8.0
6. Packaging Detail: Standard wooden case or as per special requirement
7. Delivery Detail: Within ten days upon receipt confirmation for the order
8. ISO and CE certified
Which type of hydraulic breaker chisel we can supply:
| Krupp | HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301, |
| HM400/401,HM550,HM560CS,HM580,HM600/601,HM700 | |
| RAMMER | S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700, |
| S54/700,S55,S56/800,S82/1400 | |
| N.P.K | H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA |
| INDECO | MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
| MONTABERT | BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250, |
| RH501,BRH620, BRH625,BRH750,BRV32 | |
| STANLEY | MB125,MB250/350,MB550,MB656,MB800,MB1550, |
| MB1950/1975,MB30EX,MB40EX | |
| FURUKAWA | HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G |
| HB30G,HB40G,HB50G, | |
| TOKU/TOYO | TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, |
| OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, |
| SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81, |
| SB100,SB121,SB130,SB151 | |
| KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
| DAEMO | DMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V |
| HANWOO | RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313, |
| DAINONG | D30,D50,D60,D70/90,D110,D130,D160,T180,K20 |
| K25,K30,K50,K80,K120,K55S,K40S, |
Hydraulic Breaker Points are constantly going through asphalt, rock , or packing the ground, so whether you need to replace one that is just worn out, or add a little more functionality to the hydraulic breaker that you already have, we has exactly what you need.Standard or Hard – Rock type chisels for hydraulic breakers,limestone/concrete chisels, Rock Breaker Moil Point Chisels
—What is your product?—
Chisels are ware parts used for stone cutting,boring holes in concrete,bricks and other
hard materials.
rock breaker chisel For Hydraulic Rock Breakers can be used in:
mining mining, second-time breaking
road repairing, breaking, foundation work
railway tunneling, demolition of bridge
construction demolition of building and reinforced concrete
others breaking frozen mud,slag, furnace
| Conical point | General demolition work where penetrative breaking is required |
| Blunt tool | Crushing large rock pieces in quarries Crushing slag Ground compression |
| Flat point | General use with additional cutting cation Drawing pits in rocky subsoil Separating rock slabs |
| Moil point | General use with demolition work and in quarries Breaking up stag in steel mills Demolishing foundations Roadway drivage and roadway shots in mining |
Product Range
