Excavator Grab Bucket Wear Parts

Our Advantage

☑ Affordable price ☑ Customized design is Available ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery ☑ Quality guaranteed ☑ Bulk discounts for larger orders

Product Description

英文版详情_01 英文版详情_04-1 英文版详情_05 英文版详情_06 英文版详情_07 英文版详情_08

bucket-1

Specification
Tonnes	Bucket Type	Width	G.E.T	Teeth	Bucket Pins	Weight
2T	GP Digging Bucket	18''-457mm	J200 series	4pcs	Included	90KG
5T	GP Digging Bucket	24''-610mm	J200 series	5pcs	Included	160KG
8T	GP Digging Bucket	30''-762mm	J220 series	5pcs	Included	260KG
12T	GP Digging Bucket	36''-915mm	J250 series	5pcs	Included	405KG
15T	GP Digging Bucket	42''-1067mm	J250 series	6pcs	Included	570KG
20T	GP Digging Bucket	48''-1220mm	J350 series	6pcs	Included	910KG
25T	GP Digging Bucket	48''-1220mm	J400 series	6pcs	Included	1130KG
30T	GP Digging Bucket	54''-1372mm	J450 series	5pcs	Included	1395KG
12T	Rock Bucket	30''-762mm	J250 series	4pcs	including	388
15T	Rock Bucket	36''-915mm	J300 series	5pcs	including	600
18T	Rock Bucket	42''-1067mm	J350 series	5pcs	including	815
20T	Rock Bucket	48''-1220mm	J350 series	5pcs	including	1085
25T	Rock Bucket	54''-1372mm	J400 series	6pcs	including	1407
30T	Rock Bucket	60''-1524mm	J450 series	6pcs	including	1725
36T	Rock Bucket	60''-1524mm	J450 series	6pcs	including	1725
49T	Rock Bucket	66''-1676mm	J550 series	6pcs	including	2370
20T	Extreme Duty Rock	48''-1220mm	J350 series	5pcs	including	1282
25T	Extreme Duty Rock	54''-1372mm	J400 series	6pcs	including	1681
30T	Extreme Duty Rock	60''-1524mm	J450 series	6pcs	including	2122
36T	Extreme Duty Rock	60''-1524mm	J450 series	6pcs	including	2122
49T	Extreme Duty Rock	66''-1676mm	J550 series	6pcs	including	2735

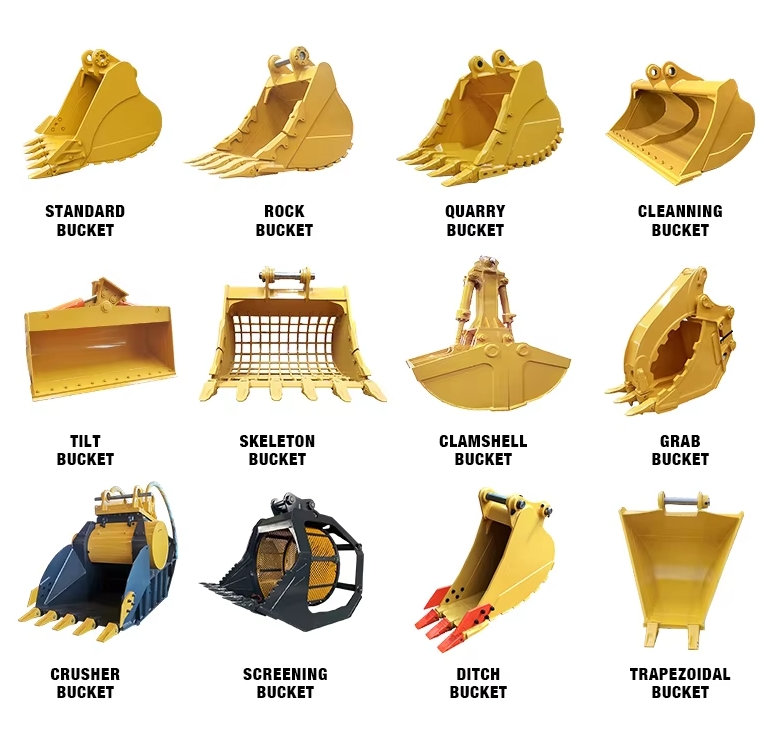

TYPE	MATERIAL	G.E.T	APPLICATION
GD Bucket	Q345B	Adapter,Teeth,Side cutter	Mainly used for excavation and sand, gravel
			and
			soil and other light load operating environment.
HD Bucket	Q345B	Adapter,Teeth,Side cutter	Mainly used for digging hard soil, mixed with a
			relative soft stone and clay,softer stones and
			other light load operating environment.
SD Bucket	Q345&NM400	Adapter,Teeth,Side cutter/	Mainly used for mining hard gravel mixed with
		protector	hard soil, sub-hard stone or flint, after
			blasting or loading, and heavy-loading.
XD Bucket	Q345&NM400	Adapter,Teeth,Side	Mainly used for very high abrasion conditions
	/HARDOX450	protector,Corner shrouds	including high quartzite granite,broken slag,
	/HARDOX500		sandstone and ore.
Mini Bucket	Q345B	Adapter,Teeth,Side cutter	Used for light work environments with small
			excavators.
Trench Bucket	Q345B	Adapter,Teeth,Side cutter	Used for rivers,ponds and ditches
			environment.
Cleaning	Q345B &NM400		Applied to cleaning work in channels and
Bucket			ditches.
Skeleton	Q345B &NM400	Adapter,Teeth,Side cutter/	Applied in integrating sieving and excavation
Bucket		protector	of relatively loose materials.
